SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front curtain shield airbag assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE ROOF HEADLINING ASSEMBLY

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5,

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1,202208,999999,_58,_078375,_0380060,RM1000000024I16,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4,202208,999999,_58,_078375,_0381233,RM1000000024I19,

Hide Display 62180D 4.REMOVE FRONT CURTAIN SHIELD AIRBAG ASSEMBLY LH

CAUTION:

0.667,0.5 0.823,0.698 0.156,0.198 10 false .

Deployment Side

When storing the front curtain shield airbag assembly LH, keep the airbag deployment side facing upward.

If the airbag deploys for any reason, it may cause a serious accident.

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

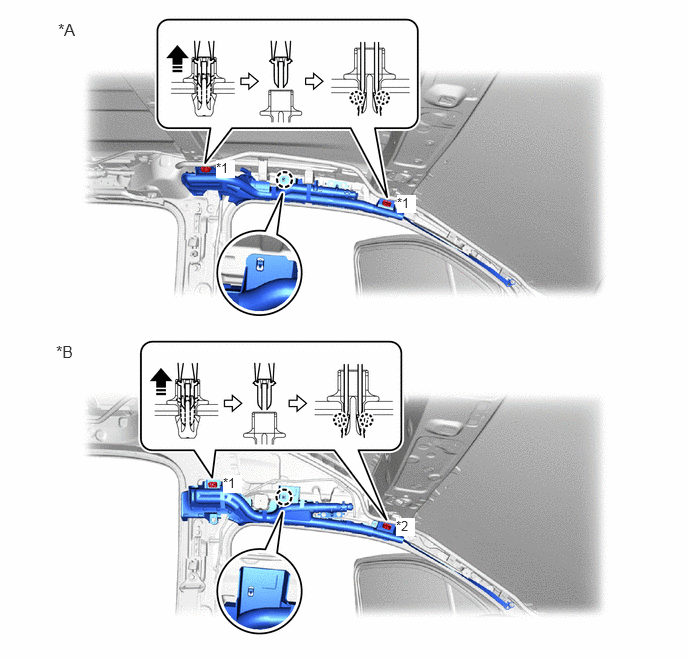

Remove the front curtain shield airbag assembly LH deployment portion in the following order.

Using needle-nose pliers, remove the 2 pins from the roof side inner garnish clip.

0.604,0.208 0.917,0.521 0.313,0.313 12 false *A 0.583,3.563 0.896,3.875 0.313,0.313 12 false *B 2.323,4.948 2.521,5.135 0.198,0.188 10 true *1 4.135,2.031 4.333,2.219 0.198,0.188 10 true *1 2.25,1.667 2.448,1.854 0.198,0.188 10 true *1 4.125,5.396 4.323,5.583 0.198,0.188 10 true *2

*A	for Standard Roof	*B	for High Roof
*1	Roof Side Inner Garnish Clip	*2	Clip
	Remove in this Direction	-	-

ii.

for Standard Roof:

Using 2 thin bladed screwdrivers, detach the claw and remove the 2 roof side inner garnish clips together with the front curtain shield airbag assembly LH deployment portion.

iii.

for High Roof:

Using 2 thin bladed screwdrivers, detach the claw and remove the clip and roof side inner garnish clip together with the front curtain shield airbag assembly LH deployment portion.

iv.

Detach the claw.

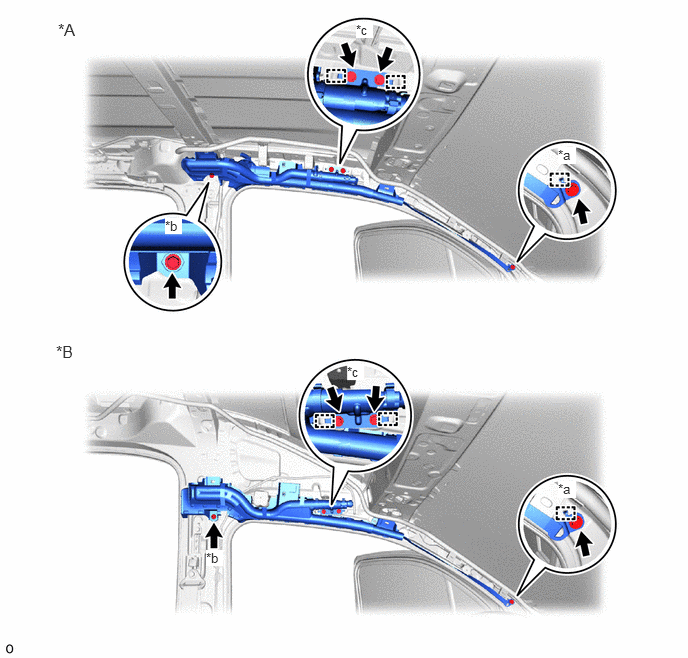

Remove the front curtain shield airbag assembly LH inflator in the following order.

CAUTION:: The bolt must not be reused.

0.604,0.208 0.917,0.521 0.313,0.313 12 false *A 1.719,2.271 1.896,2.438 0.177,0.167 10 true *b 0.583,3.563 0.896,3.875 0.313,0.313 12 false *B 3.615,3.792 3.792,3.958 0.177,0.167 10 true *c 5.813,1.531 6,1.708 0.188,0.177 10 true *a 5.813,5.01 6,5.188 0.188,0.177 10 true *a 2.146,5.729 2.323,5.896 0.177,0.167 10 true *b 3.708,0.229 3.885,0.396 0.177,0.167 10 true *c

*A	for Standard Roof	*B	for High Roof
*a	Strap	*b	Rear Side Bolt
*c	Front Curtain Shield Airbag Assembly LH Inflator	-	-

Remove the bolt and detach the hook to remove the front curtain shield airbag assembly LH strap.

ii.

Remove the bolt and rear side of the front curtain shield airbag assembly LH deployment portion.

iii.

Remove the 2 bolts.

iv.

Detach the hook to remove the front curtain shield airbag assembly LH inflator.

When reusing the front curtain shield airbag assembly LH:

CAUTION:: Do not reuse the roof side inner garnish clip.

0.583,0.083 0.979,0.427 0.396,0.344 12 false *A 0.583,3.781 0.979,4.125 0.396,0.344 12 false *B 5.333,4.365 5.521,4.552 0.188,0.188 10 true *1 5.104,0.406 5.292,0.594 0.188,0.188 10 true *1 1.854,1.021 2.042,1.208 0.188,0.188 10 true *1 1.948,5.083 2.135,5.271 0.188,0.188 10 true *2

*A	for Standard Roof	*B	for High Roof
*1	Roof Side Inner Garnish Clip	*2	Clip

for Standard Roof:

Detach the claw and remove the 2 roof side inner garnish clips.

ii.

for High Roof:

Detach the claw and remove the clip and roof side inner garnish clip.
