SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Power Captain Seat) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedures listed below are for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
·The procedure listed below is a representative example.
·Use the same procedure for first row and second row, unless otherwise specified.
PROCEDURE
73390
1.INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
73390
2.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
Push the seatback forwards, and then push it backwards until it reaches the first position where it locks.
for LH Side:
Attach the guide.
for RH Side:
Attach the guide.

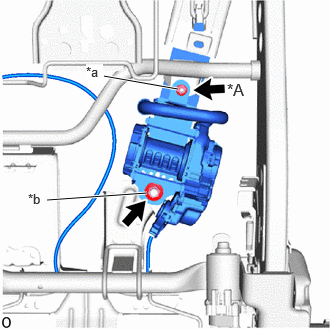

| *A | for First Row |
| *a | Nut A |
| *b | Nut B |
Temporarily install the rear seat 3 point type belt assembly LH with the nut A and nut B.
for First Row:
Tighten the nut A.
- Torque:
- 12.5 N*m (127 kgf*cm, 111 in.*lbf)
Tighten the nut B.
- Torque:
- 42 N*m (428 kgf*cm, 31 ft.*lbf)
| *A | for LH Side |
for First Row:
Connect the connector and attach the clamp.
Temporarily install the reclining sensor with the 3 nuts.

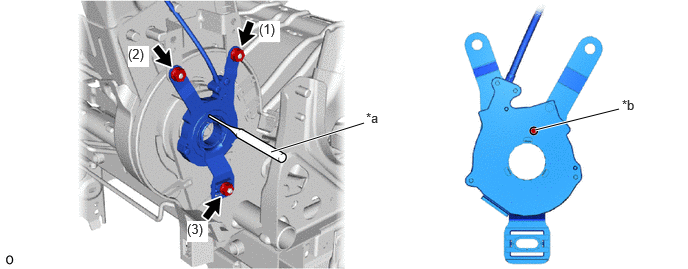

| *a | Pin Punch 3 | *b | Zero Point Alignment Hole |
Insert pin punch 3 into the zero point alignment hole of the rear seat 3 point type belt assembly LH.
Tighten the 3 nuts in the order shown in the illustration.
- Torque:
- 3.5 N*m (36 kgf*cm, 31 in.*lbf)
Pull out pin punch 3.
Install the 3 screws.
71879J
3.INSTALL REAR NO. 1 SEAT INNER RECLINING COVER LH
73373W
4.INSTALL NO. 1 SEAT NO. 2 SHOULDER BELT COVER LH
71695L
5.INSTALL NO. 1 SEATBACK PROTECTOR LH
6.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD
73390
7.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

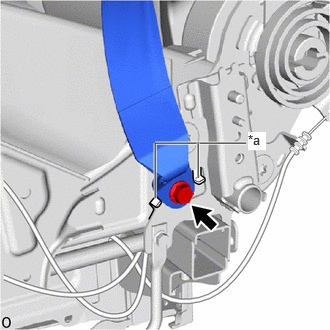

| *a | Protruding Part |
Install the anchor of the rear seat 3 point type belt assembly LH with the bolt.
- Torque:
- 42 N*m (428 kgf*cm, 31 ft.*lbf)
- NOTICE:
-
Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap the protruding part.
Check that the ELR locks.
With the rear seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.
72046G
8.INSTALL LH SEAT NO. 1 SEAT NO. 2 TRACK COVER SUB-ASSEMBLY
72345Z
9.INSTALL LH SEAT NO. 1 SEAT NO. 2 STAND FRAME CAP
73375
10.INSTALL REAR SEAT SHOULDER BELT COVER LH
71H75R
11.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH
72803H
12.INSTALL LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY RH
66990E
13.INSTALL REAR NO. 1 SEAT CUP HOLDER ASSEMBLY LH
71826C
14.INSTALL REAR SEAT CUSHION MOULDING LH
71866D
15.INSTALL LH SEAT REAR NO. 1 SEAT COVER BEZEL
71H74
16.INSTALL REAR SEAT LOWER CUSHION SHIELD LH (for Second Row)
71848W
17.INSTALL LH SEAT NO. 1 SEAT ADJUSTER COVER CAP
72840K
18.INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH
84923
19.INSTALL REAR POWER SEAT SWITCH
78060C
20.INSTALL NO. 1 SEAT SIDE TABLE ASSEMBLY (for First Row, RH Side)
72804E
21.INSTALL LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY LH
71844J
22.INSTALL REAR NO. 1 SEAT NO. 2 RECLINING COVER LH
72C45
23.INSTALL LH SEAT NO. 1 SEAT NO. 3 STAND FRAME CAP (for First Row)
71849L
24.INSTALL NO. 1 SEAT ADJUSTER COVER CAP LH
71324R
25.INSTALL REAR NO. 1 SEAT CUSHION LH (for First Row)
72890C
26.INSTALL LH SEAT NO. 1 SEAT ARMREST ASSEMBLY
72345Y
27.INSTALL LH SEAT NO. 1 SEAT NO. 1 STAND FRAME CAP
72526J
28.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH
29.INSTALL REAR SEAT ASSEMBLY LH
30.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)
31. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
32. PERFORM DIAGNOSTIC SYSTEM CHECK (for First Row)
33.CHECK SRS WARNING LIGHT (for First Row)
34.INSPECT SEAT BELT WARNING SYSTEM
35.INSPECT REAR SEAT ASSEMBLY
36.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)
