RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398436 REAR SEAT INNER BELT ASSEMBLY(for Power Captain Seat) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Power Captain Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.

PROCEDURE

Hide Display 73380D 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

a.

B562795C01

1.958,3.146 2.865,3.146 2.865,3.146 2.865,2.813 true 2.313,3.146 2.313,2.74 true 1.76,3.031 1.948,3.24 0.188,0.208 10 true *a

*a	Protruding Part

Install the rear seat inner belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part.

b.

B562796

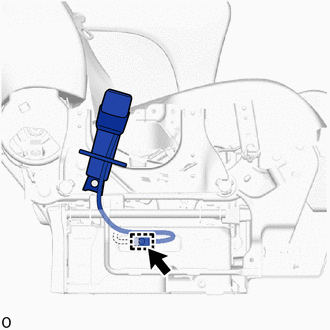

Connect the connector and attach the clamp.

Hide Display 71H75R 2.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0009,

Hide Display 72803H 3.INSTALL LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0030,

Hide Display 66990E 4.INSTALL REAR NO. 1 SEAT CUP HOLDER ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0031,

Hide Display 71826C 5.INSTALL REAR SEAT CUSHION MOULDING LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0032,

Hide Display 71866D 6.INSTALL LH SEAT REAR NO. 1 SEAT COVER BEZEL

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0033,

Hide Display 71H74 7.INSTALL REAR SEAT LOWER CUSHION SHIELD LH (for Second Row)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0035,

Hide Display 71848W 8.INSTALL LH SEAT NO. 1 SEAT ADJUSTER COVER CAP

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0036,

Hide Display 72840K 9.INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0037,

Hide Display 84923 10.INSTALL REAR POWER SEAT SWITCH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH (for Rear Seat)>INSTALLATION201906,999999,_58,_078601,_0396329,RM100000001IGZR_01_0006,

Hide Display 78060C 11.INSTALL NO. 1 SEAT SIDE TABLE ASSEMBLY (for First Row, RH Side)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0039,

Hide Display 12.INSTALL REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 13.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 14. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,
