HEATING / AIR CONDITIONING CONDENSER FAN INSTALLATION

Hide Display 88590D 1.INSTALL NO. 1 BLOWER ASSEMBLY WITH SHROUD

a.

except Wagon:

i.

0,0 0,0 false

Install in this Direction

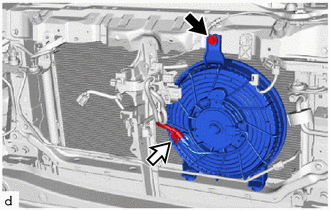

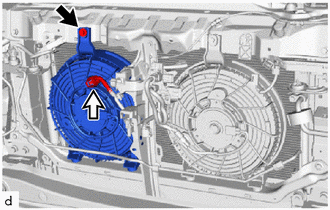

Attach the guide to install the No. 1 blower assembly with shroud as shown in the illustration.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the bolt.

Torque:: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

iii.

Connect the connector.

b.

for Wagon:

i.

0,0 0,0 false

Install in this Direction

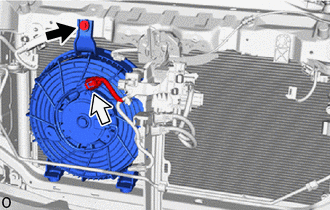

Attach the guide to install the No. 1 blower assembly with shroud as shown in the illustration.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the bolt.

Torque:: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

iii.

Connect the connector.

Hide Display 88590E 2.INSTALL NO. 2 BLOWER ASSEMBLY WITH SHROUD

a.

for Dual Fan:

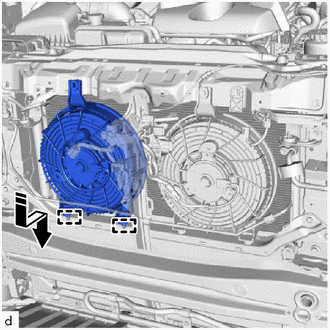

i.

0,0 0,0 false

Install in this Direction

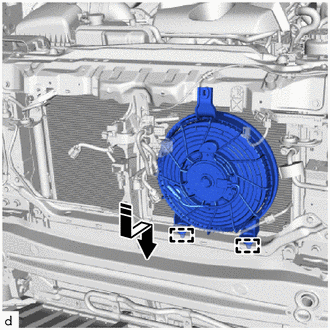

Attach the guide to install the No. 2 blower assembly with shroud as shown in the illustration.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the bolt.

Torque:: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

iii.

Connect the connector.

b.

for Single Fan:

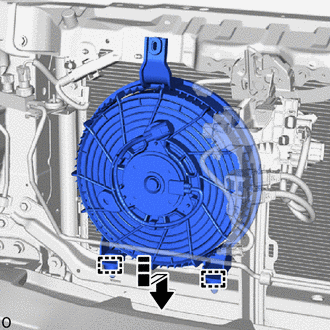

i.

0,0 0,0 false

Install in this Direction

Attach the guide to install the No. 2 blower assembly with shroud as shown in the illustration.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the bolt.

Torque:: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

iii.

Connect the connector.

Hide Display 53510 3.INSTALL HOOD LOCK ASSEMBLY (for LHD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for LHD)>INSTALLATION201906,999999,_59,_078503,_0385649,RM100000001JOQ8,

Hide Display 53510 4.INSTALL HOOD LOCK ASSEMBLY (for RHD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for RHD)>INSTALLATION201906,999999,_59,_078503,_0385650,RM100000001JOQE,

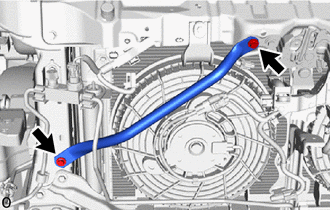

Hide Display 51466 5.INSTALL UPPER RADIATOR SUPPORT BRACE LH (for Wagon)

a.

Install the upper radiator support brace LH with the 2 bolts.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

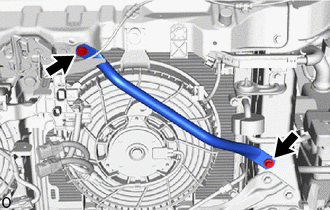

Hide Display 51465 6.INSTALL UPPER RADIATOR SUPPORT BRACE RH (for Wagon)

a.

Install the upper radiator support brace LH with the 2 bolts.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

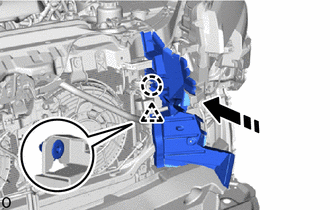

Hide Display 53286F 7.INSTALL RADIATOR SIDE AIR SEAL LH

a.

0,0 0,0 false

Install in this Direction

except Wagon:

i.

Attach the clip and claw to install the radiator side air seal LH as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

for Wagon:

i.

Attach the clip and claw to install the radiator side air seal LH as shown in the illustration.

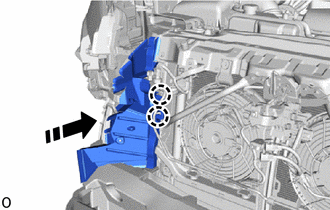

Hide Display 53285N 8.INSTALL RADIATOR SIDE AIR SEAL RH

a.

0,0 0,0 false

Install in this Direction

except Wagon:

i.

Attach the claw to install the radiator side air seal RH as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

for Wagon:

i.

Attach the claw to install the radiator side air seal RH as shown in the illustration.

Hide Display 17311B 9.INSTALL NO. 1 AIR INLET DUCT

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>INSTALLATION201906,202005,_51,_079309,_0386771,RM100000001IZPZ_01_0055,202005,999999,_51,_079309,_0386771,RM100000001LT60_01_0055,

Hide Display 86520 10.INSTALL LOW PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>INSTALLATION201906,999999,_59,_079321,_0385005,RM100000001IHXV_01_0020,

Hide Display 86510 11.INSTALL HIGH PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>INSTALLATION201906,999999,_59,_079321,_0385005,RM100000001IHXV_01_0021,

Hide Display 12.INSTALL FRONT BUMPER ASSEMBLY

a.

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>INSTALLATION201906,999999,_59,_079322,_0397093,RM100000001IMTG,

b.

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>INSTALLATION201906,999999,_59,_079322,_0397092,RM100000001IMTB,
