DOOR / HATCH  HOOD LOCK CONTROL CABLE ASSEMBLY(for RHD)  INSTALLATION

1.896,1.135 2.396,1.135 true 1.729,1.083 2.042,1.323 0.313,0.24 10 false *a

*a

String

Tie a string to the end of the hood lock control cable assembly in the engine compartment.

0,0 0,0 false

Install in this Direction

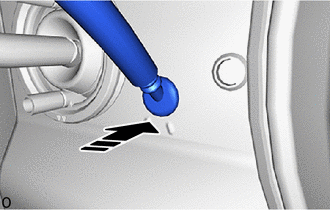

Attach the grommet as shown in the illustration.

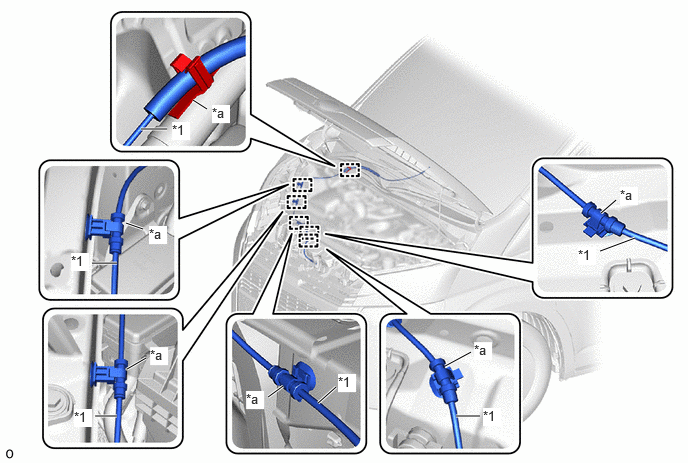

Attach the clamp and install the hood lock control cable assembly as shown in the illustration.

2.01,1.042 2.156,1.135 true 1.469,1.344 1.74,1.344 true 2.948,4.021 2.792,4.135 true 3.5,4.031 3.313,4.198 true 6.615,2.479 6.25,2.615 true 6.417,2.083 6.26,2.219 true 1.219,2.74 0.958,2.74 true 1.49,2.385 1.313,2.323 true 1.323,3.844 1.521,3.729 true 1.219,4.333 0.99,4.333 true 4.906,3.667 4.635,3.813 true 4.75,4.333 5,4.333 true 1.792,1.271 1.979,1.458 0.188,0.188 10 true *1 0.74,2.635 0.927,2.823 0.188,0.188 10 true *1 0.771,4.26 0.958,4.448 0.188,0.188 10 true *1 6.021,2.573 6.208,2.76 0.188,0.188 10 true *1 3.521,3.896 3.708,4.083 0.188,0.188 10 true *1 5.031,4.25 5.219,4.438 0.188,0.188 10 true *1 2.208,1.094 2.396,1.281 0.188,0.188 10 true *a 1.552,2.354 1.74,2.542 0.188,0.188 10 true *a 1.563,3.615 1.75,3.802 0.188,0.188 10 true *a 6.458,1.948 6.646,2.135 0.188,0.188 10 true *a 2.563,4.073 2.75,4.26 0.188,0.188 10 true *a 4.938,3.563 5.125,3.75 0.188,0.188 10 true *a

*1	Hood Lock Control Cable Assembly	-	-
*a	Clamp	-	-

Attach the clamp and connect the hood lock control cable assembly.

NOTICE:

Do not bend the hood lock control cable assembly excessively.

2.156,1.448 1.781,1.115 true 2.146,1.469 2.354,1.667 0.208,0.198 10 true *1

*1	Hood Lock Bolt

Install the hood lock assembly with the 2 bolts and hood lock bolt.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

HINT:

The hood lock nut cap is a non-reusable part. Be sure to install it after inspecting and adjusting the hood sub-assembly.

w/ Courtesy Switch:

Install the hood lock control cable assembly to the hood lock control lever sub-assembly.

0,0 0,0 false

Install in this Direction

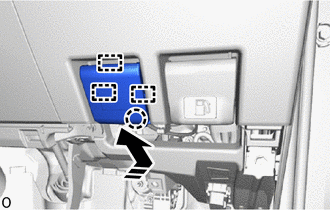

Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.
