DOOR / HATCH  HOOD LOCK CONTROL CABLE ASSEMBLY(for LHD)  INSTALLATION

1.896,1.135 2.396,1.135 true 1.729,1.083 2.042,1.323 0.313,0.24 10 false *a

*a

String

Tie a string to the end of the hood lock control cable assembly in the engine compartment.

0,0 0,0 false

Install in this Direction

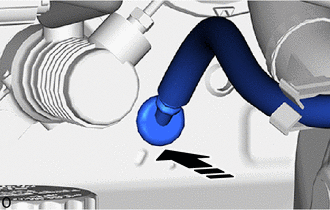

Attach the grommet as shown in the illustration.

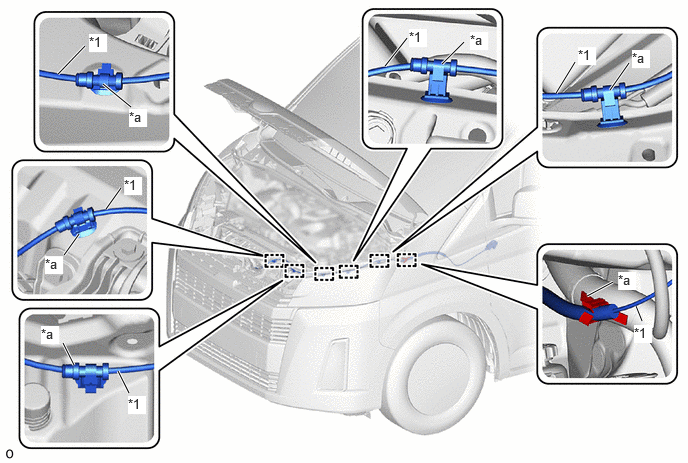

Attach the clamp and install the hood lock control cable assembly as shown in the illustration.

0.604,0.771 0.885,0.479 true 1.365,1.115 1.073,0.875 true 4.833,0.438 4.604,0.667 true 4.24,0.396 4.01,0.688 true 5.99,0.646 5.792,0.969 true 6.552,0.656 6.354,0.938 true 1.26,1.958 1.104,2.177 true 0.823,2.438 0.667,2.656 true 0.656,3.573 0.771,3.802 true 1.229,3.865 1.344,4.094 true 6.385,2.938 6.115,3.083 true 6.625,3.188 6.688,3.344 true 0.927,0.354 1.115,0.542 0.188,0.188 10 true *1 1.292,1.844 1.479,2.031 0.188,0.188 10 true *1 1.333,4.125 1.521,4.313 0.188,0.188 10 true *1 4.26,0.302 4.448,0.49 0.188,0.188 10 true *1 6.021,0.49 6.208,0.677 0.188,0.188 10 true *1 6.604,3.385 6.792,3.573 0.188,0.188 10 true *1 1.344,1.135 1.531,1.323 0.188,0.188 10 true *a 0.469,2.667 0.656,2.854 0.188,0.188 10 true *a 0.427,3.396 0.615,3.583 0.188,0.188 10 true *a 4.896,0.333 5.083,0.521 0.188,0.188 10 true *a 6.583,0.521 6.771,0.708 0.188,0.188 10 true *a 6.438,2.833 6.625,3.021 0.188,0.188 10 true *a

*1	Hood Lock Control Cable Assembly	-	-
*a	Clamp	-	-

Attach the clamp and connect the hood lock control cable assembly.

NOTICE:

Do not bend the hood lock control cable assembly excessively.

0.646,1.448 1.365,1.135 true 0.417,1.406 0.625,1.604 0.208,0.198 10 true *1

*1	Hood Lock Bolt

Install the hood lock assembly with the 2 bolts and hood lock bolt.

Torque:

7.5 N*m (76 kgf*cm, 66 in.*lbf)

HINT:

The hood lock nut cap is a non-reusable part. Be sure to install it after inspecting and adjusting the hood sub-assembly.

w/ Courtesy Switch:

Install the hood lock control cable assembly to the hood lock control lever sub-assembly.

0,0 0,0 false

Install in this Direction

Attach the guide and claw to install the hood lock control lever sub-assembly in the direction indicated by the arrow shown in the illustration.
