RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384889 CONDENSER FAN A

HEATING / AIR CONDITIONING CONDENSER FAN REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during the condenser fan removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
· Front television camera assembly (Including removal and installation) · Radiator grille assembly (Including removal and installation) · Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
· Front television camera assembly, radiator grille assembly or front bumper assembly · Television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

HINT:: ·

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>ADJUSTMENT201906,202208,_51,_078884,_0384730,RM100000001IUMI,202208,999999,_51,_078884,_0384730,RM1000000024I1I,

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397093,RM100000001IMTD,

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397092,RM100000001IMT8,

Hide Display 86510 2.REMOVE HIGH PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>REMOVAL201906,999999,_59,_079321,_0385005,RM100000001IHXT_01_0007,

Hide Display 86520 3.REMOVE LOW PITCHED HORN ASSEMBLY

Click hereVehicle Exterior>HORN>HORN>REMOVAL201906,999999,_59,_079321,_0385005,RM100000001IHXT_01_0003,

Hide Display 17311B 4.REMOVE NO. 1 AIR INLET DUCT

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>REMOVAL201906,202005,_51,_079309,_0386771,RM100000001IZPY_01_0052,202005,999999,_51,_079309,_0386771,RM100000001LT5Z_01_0052,

Hide Display 53286F 5.REMOVE RADIATOR SIDE AIR SEAL LH

except Wagon:

0,0 0,0 false

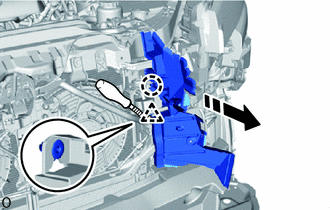

Remove in this Direction

Detach the clip and claw to remove the radiator side air seal LH.

for Wagon:

0,0 0,0 false

Remove in this Direction

Detach the clip and claw to remove the radiator side air seal LH.

Hide Display 53285N 6.REMOVE RADIATOR SIDE AIR SEAL RH

except Wagon:

0,0 0,0 false

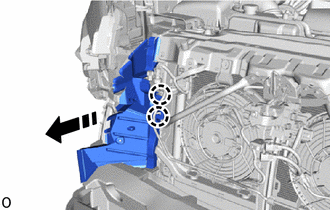

Remove in this Direction

Detach the claw and remove the radiator side air seal RH.

for Wagon:

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the radiator side air seal RH.

Hide Display 51466 7.REMOVE UPPER RADIATOR SUPPORT BRACE LH (for Wagon)

Remove the 2 bolts and upper radiator support brace LH.

Hide Display 51465 8.REMOVE UPPER RADIATOR SUPPORT BRACE RH (for Wagon)

Remove the 2 bolts and upper radiator support brace RH.

Hide Display 53510 9.REMOVE HOOD LOCK ASSEMBLY (for LHD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for LHD)>REMOVAL201906,999999,_59,_078503,_0385649,RM100000001JOQ7,

Hide Display 53510 10.REMOVE HOOD LOCK ASSEMBLY (for RHD)

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY (for RHD)>REMOVAL201906,999999,_59,_078503,_0385650,RM100000001JOQC,

Hide Display 88590E 11.REMOVE NO. 2 BLOWER ASSEMBLY WITH SHROUD

for Dual Condenser Fan:

0,0 0,0 false

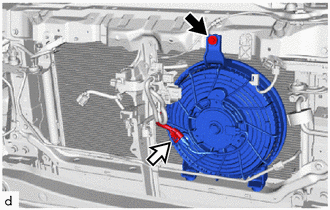

	Bolt
	Connector

Disconnect the connector.

ii.

Remove the bolt.

iii.

0,0 0,0 false

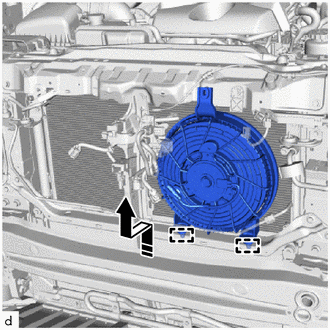

Remove in this Direction

Detach the guide and remove the No. 2 blower assembly with shroud as shown in the illustration.

for Single Fan:

0,0 0,0 false

	Bolt
	Connector

Disconnect the connector.

ii.

Remove the bolt.

iii.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the No. 2 blower assembly with shroud as shown in the illustration.

Hide Display 88590D 12.REMOVE NO. 1 BLOWER ASSEMBLY WITH SHROUD

except Wagon:

0,0 0,0 false

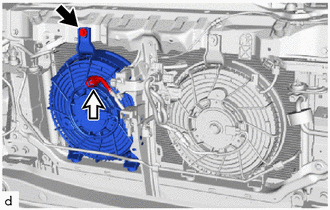

	Bolt
	Connector

Disconnect the connector.

ii.

Remove the bolt.

iii.

0,0 0,0 false

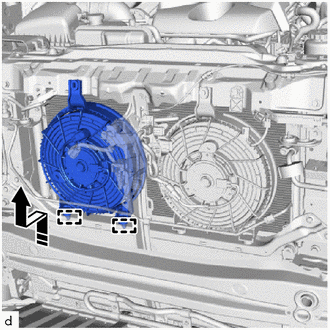

Remove in this Direction

Detach the guide and remove the No. 1 blower assembly with shroud as shown in the illustration.

for Wagon:

0,0 0,0 false

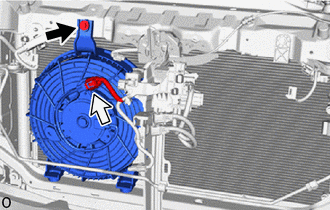

	Bolt
	Connector

Disconnect the connector.

ii.

Remove the bolt.

iii.

0,0 0,0 false

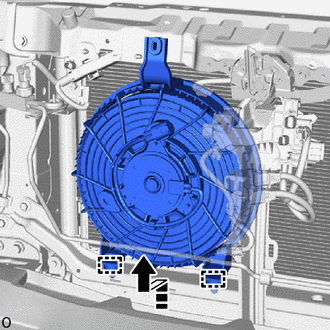

Remove in this Direction

Detach the guide and remove the No. 1 blower assembly with shroud as shown in the illustration.
