The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during the front bumper assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
·
Front television camera assembly (Including removal and installation) ·
Radiator grille assembly (Including removal and installation) ·
Front bumper assembly (Including removal and installation) |
Front television camera view adjustment | Panoramic view monitor system | ( 201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
|
·
Front television camera assembly, radiator grille assembly or front bumper assembly ·
Television camera assembly ·
Side television camera assembly LH or outer rear view mirror assembly LH ·
Side television camera assembly RH or outer rear view mirror assembly RH |
Television camera view adjustment (Adjustment of all cameras)
|
Panoramic view monitor system | ( 201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
|
When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.
53101
1.REMOVE RADIATOR GRILLE SUB-ASSEMBLY
53128E
2.REMOVE LOWER RADIATOR GRILLE SIDE LH
|
Remove in this Direction |

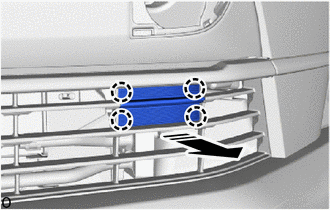

Detach the claw and remove the lower radiator grille side LH as shown in the illustration.
53127D
3.REMOVE LOWER RADIATOR GRILLE SIDE RH
Use the same procedure described for the LH side.
4.REMOVE FRONT BUMPER ASSEMBLY
Remove the clip.
Use the same procedure for the other side.

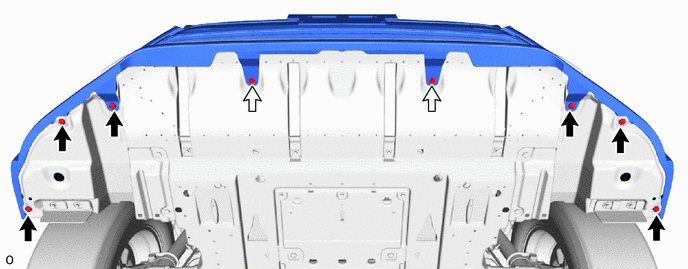

Remove the 2 screws and 6 clips.
|
Clip |
|
Screw |
|
Protective Tape |
Apply protective tape as shown in the illustration.
Use the same procedure for the other side.
|
Place Hand Here |
|
Remove in this Direction |
|
Protective Tape |

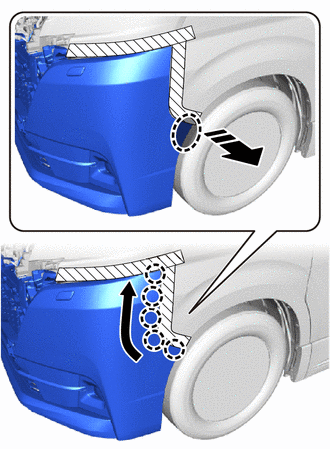

Using a screwdriver, detach the claw and remove part of the front bumper assembly as shown in the illustration.
Tape the screwdriver tip before use.
Use the same procedure for the other side.
|
Protective Tape |

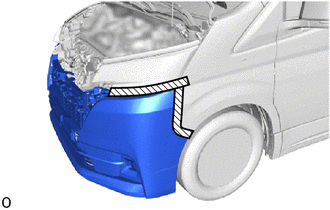

Apply protective tape around the front bumper assembly.
Use the same procedure for the other side.

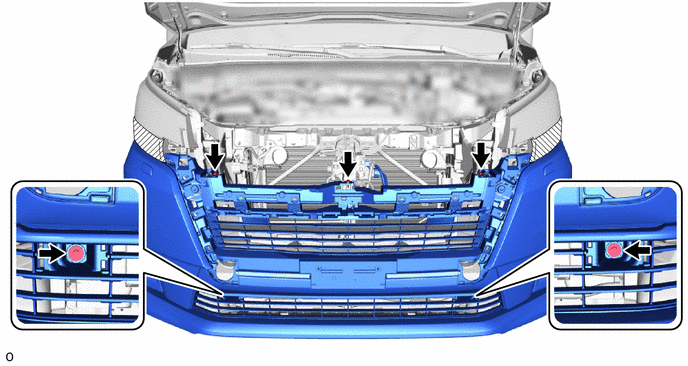

Remove the 5 bolts.
Disconnect the connector.

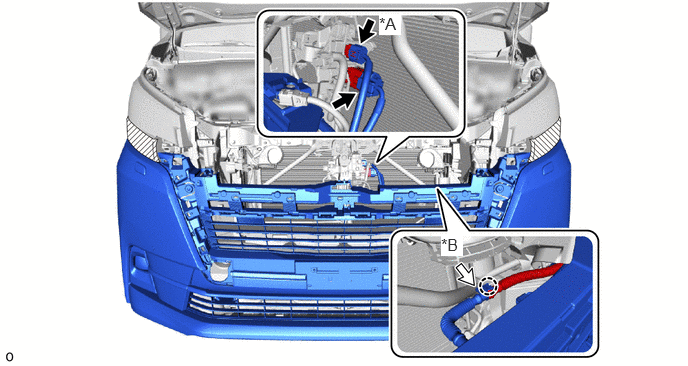

| *A | w/ TOYOTA Parking Assist-sensor System | *B | w/ Headlight Cleaner System |
w/ TOYOTA Parking Assist-sensor System:
Disconnect the connector.
w/ Headlight Cleaner System:
Detach the claw and disconnect the headlight cleaner hose.
|
Place Hands Here |
|
Remove in this Direction |
|
Order of Removal |
Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.
Use the same procedure for the other side.
|
Remove in this Direction |

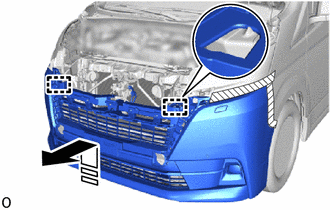

Detach the hook and remove the front bumper assembly as shown in the illustration.
47749F
5.REMOVE PIN HOLD CLIP
|
Remove in this Direction |
Remove the 2 pin hold clips as shown in the illustration.
Use the same procedure for the other side.
53879H
6.REMOVE FRONT FENDER LINER RETAINER
|
Remove in this Direction |
Remove the 2 front fender liner retainers as shown in the illustration.
Use the same procedure for the other side.
