DOOR / HATCH  HOOD LOCK CONTROL CABLE ASSEMBLY(for LHD)  REMOVAL

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

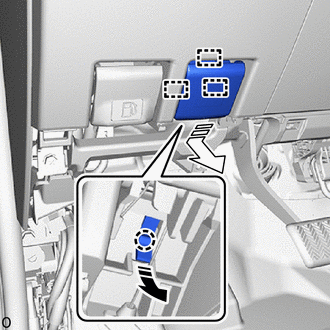

Detach the claw in the direction (1) indicated by the arrow shown in the illustration.

Detach the clamp and remove the hood lock control lever sub-assembly from the hood lock control cable assembly.

w/ Courtesy Switch:

0,0 0,0 false

Protective Tape

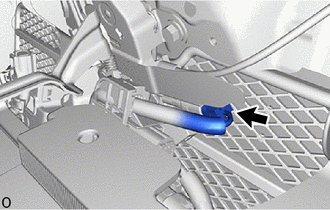

Using a screwdriver with its tip wrapped in protective tape, remove the hood lock nut cap.

0.646,1.448 1.365,1.135 true 0.417,1.406 0.625,1.604 0.208,0.198 10 true *1

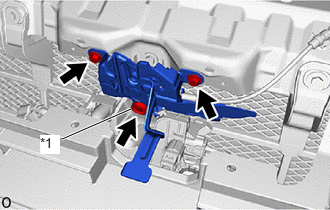

*1	Hood Lock Bolt

Remove the 2 bolts and hood lock bolt.

Detach the clamp and disconnect the hood lock control cable assembly to remove the hood lock assembly.

NOTICE:

Do not bend the hood lock control cable assembly excessively.

1.896,1.135 2.396,1.135 true 1.729,1.083 2.042,1.323 0.313,0.24 10 false *a

*a

String

Tie a string to the end of the hood lock control cable assembly in the cabin.

HINT:

Use a length of string long enough to pass through the engine compartment.

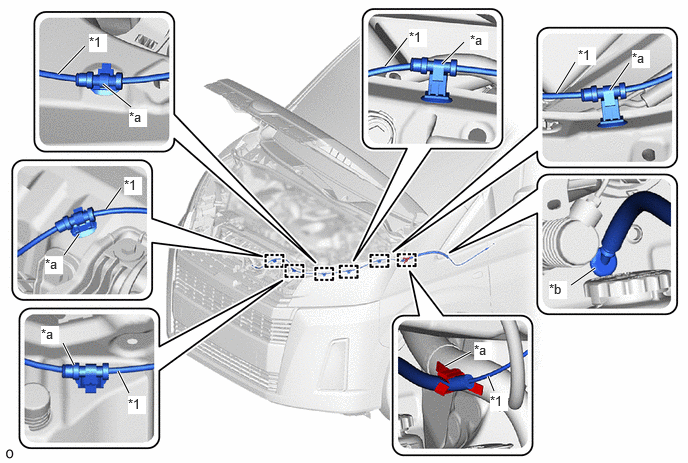

Using a screwdriver with its tip wrapped with protective tape, detach the clamp and grommet as shown in the illustration.

0.604,0.771 0.885,0.479 true 1.365,1.115 1.073,0.875 true 4.833,0.438 4.604,0.667 true 4.24,0.396 4.01,0.688 true 5.99,0.646 5.792,0.969 true 6.552,0.656 6.354,0.938 true 6.198,2.792 5.948,2.969 true 1.26,1.958 1.104,2.177 true 0.823,2.438 0.667,2.656 true 0.656,3.573 0.771,3.802 true 1.229,3.865 1.344,4.094 true 4.906,3.667 4.635,3.813 true 5.083,3.917 5.146,4.073 true 0.927,0.354 1.115,0.542 0.188,0.188 10 true *1 1.292,1.844 1.479,2.031 0.188,0.188 10 true *1 1.333,4.125 1.521,4.313 0.188,0.188 10 true *1 4.26,0.302 4.448,0.49 0.188,0.188 10 true *1 6.021,0.49 6.208,0.677 0.188,0.188 10 true *1 5.104,4.094 5.292,4.281 0.188,0.188 10 true *1 1.344,1.135 1.531,1.323 0.188,0.188 10 true *a 0.469,2.667 0.656,2.854 0.188,0.188 10 true *a 0.427,3.396 0.615,3.583 0.188,0.188 10 true *a 4.896,0.333 5.083,0.521 0.188,0.188 10 true *a 6.583,0.521 6.771,0.708 0.188,0.188 10 true *a 4.938,3.563 5.125,3.75 0.188,0.188 10 true *a 5.719,2.927 5.906,3.115 0.188,0.188 10 true *b

*1	Hood Lock Control Cable Assembly	-	-
*a	Clamp	*b	Grommet
