EXTERIOR PANELS / TRIM FRONT BUMPER(except Wagon) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>ADJUSTMENT201906,202208,_51,_078884,_0384730,RM100000001IUMI,202208,999999,_51,_078884,_0384730,RM1000000024I1I,

PROCEDURE

Hide Display 53101 1.REMOVE RADIATOR GRILLE SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (except Wagon)>REMOVAL201906,999999,_59,_079322,_0397096,RM100000001IMTX,

Hide Display 53128E 2.REMOVE LOWER RADIATOR GRILLE SIDE LH

0,0 0,0 false

Remove in this Direction

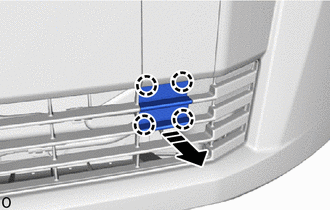

Detach the claw and remove the lower radiator grille side LH as shown in the illustration.

Hide Display 53127D 3.REMOVE LOWER RADIATOR GRILLE SIDE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 4.REMOVE FRONT BUMPER ASSEMBLY

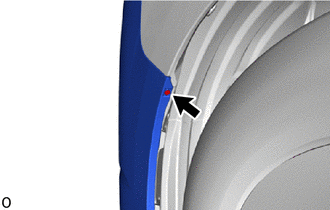

Remove the clip.

HINT:: Use the same procedure for the other side.

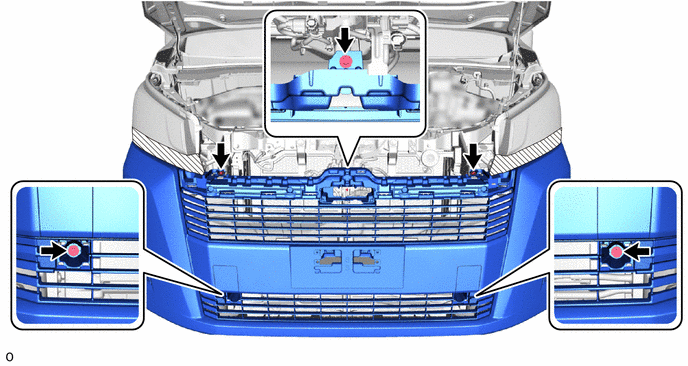

Remove the 2 screws and 6 clips.

0,0 0,0 false

Clip

Screw

0,0 0,0 false

Protective Tape

Apply protective tape as shown in the illustration.

HINT:: Use the same procedure for the other side.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction
	Protective Tape

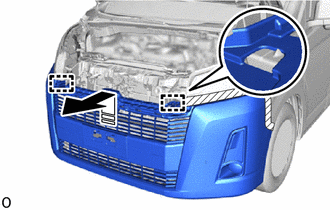

Using a screwdriver, detach the claw and remove part of the front bumper assembly as shown in the illustration.

HINT:: ·

Tape the screwdriver tip before use.

·

Use the same procedure for the other side.

0,0 0,0 false

Protective Tape

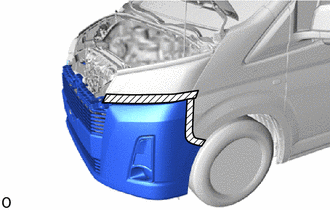

Apply protective tape around the front bumper assembly.

HINT:: Use the same procedure for the other side.

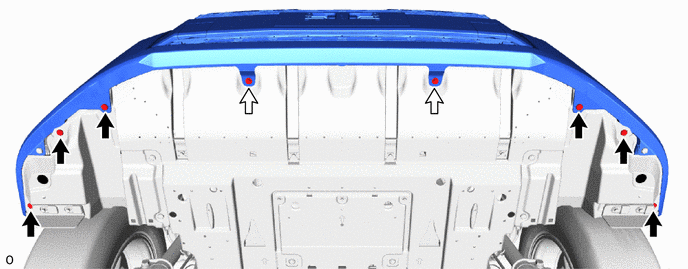

Remove the 5 bolts.

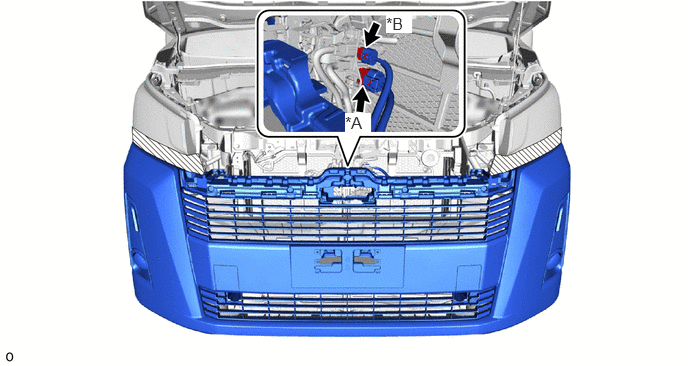

w/ Wire Harness:

w/ Fog Light:

Disconnect the connector.

ii.

w/ TOYOTA Parking Assist-sensor System:

Disconnect the connector.

3.594,1.177 3.865,1.375 0.271,0.198 12 true *A 4.021,0.146 4.292,0.344 0.271,0.198 12 true *B

w/ Fog Light

w/ TOYOTA Parking Assist-sensor System

0,0 0,0 false

	Place Hands Here
	Remove in this Direction
	Order of Removal

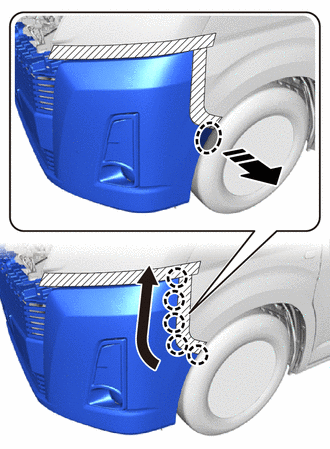

Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.

HINT:: Use the same procedure for the other side.

0,0 0,0 false

Remove in this Direction

Detach the hook and remove the front bumper assembly as shown in the illustration.

Hide Display 47749F 5.REMOVE PIN HOLD CLIP

0,0 0,0 false

Remove in this Direction

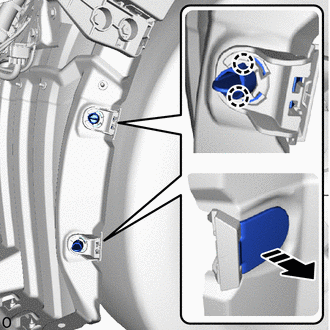

Remove the 2 pin hold clips as shown in the illustration.

HINT:: Use the same procedure for the other side.

Hide Display 53879H 6.REMOVE FRONT FENDER LINER RETAINER

0,0 0,0 false

Remove in this Direction

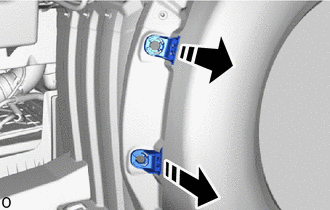

Remove the 2 front fender liner retainers as shown in the illustration.

HINT:: Use the same procedure for the other side.
