PARKING BRAKE  PARKING BRAKE CABLE(for Rear Side)  INSTALLATION

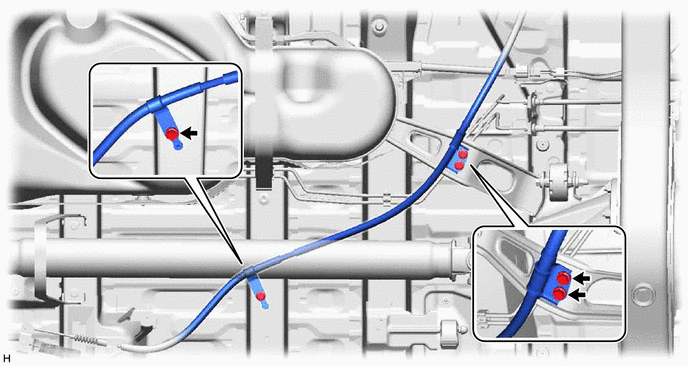

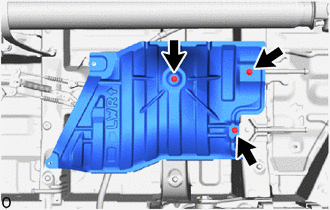

Connect the No. 2 parking brake cable assembly to the vehicle body with the 3 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

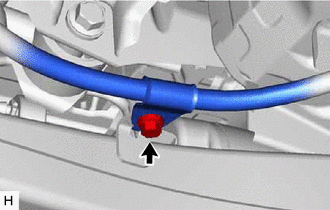

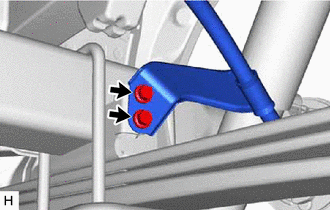

Install the No. 2 parking brake cable assembly to the rear leaf spring assembly with the bolt.

Torque:

14 N*m (143 kgf*cm, 10 ft.*lbf)

for Wagon:

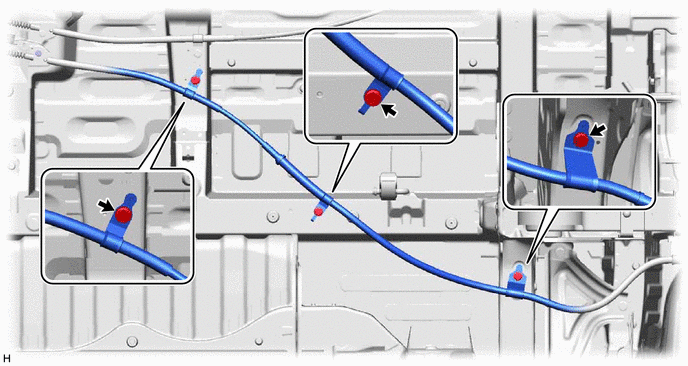

Connect the No. 2 parking brake cable assembly to the vehicle body with the 2 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

except Wagon:

Connect the No. 2 parking brake cable assembly to the vehicle body with the 2 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

for Wagon:

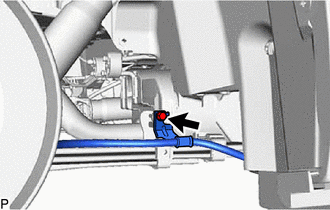

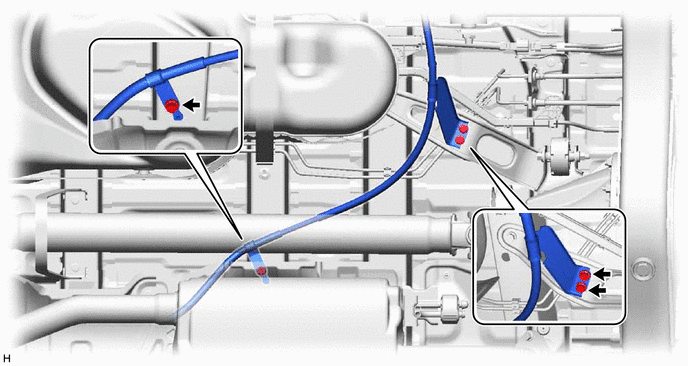

Install the No. 2 parking brake cable assembly to the lower control arm assembly with the bolt.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

except Wagon:

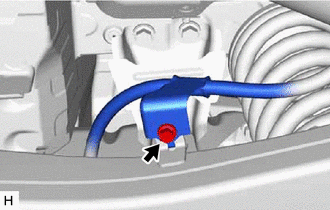

Install the No. 2 parking brake cable assembly to the rear leaf spring assembly with the bolt.

Torque:

14 N*m (143 kgf*cm, 10 ft.*lbf)

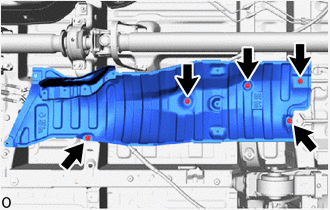

Connect the No. 3 parking brake cable assembly to the vehicle body with the 4 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the No. 3 parking brake cable assembly to the rear leaf spring assembly with the bolt.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

for Wagon:

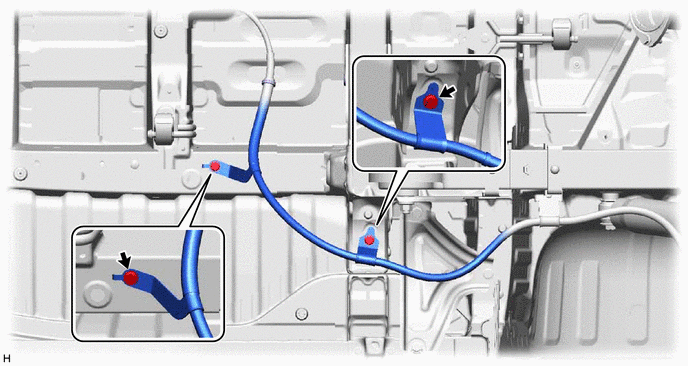

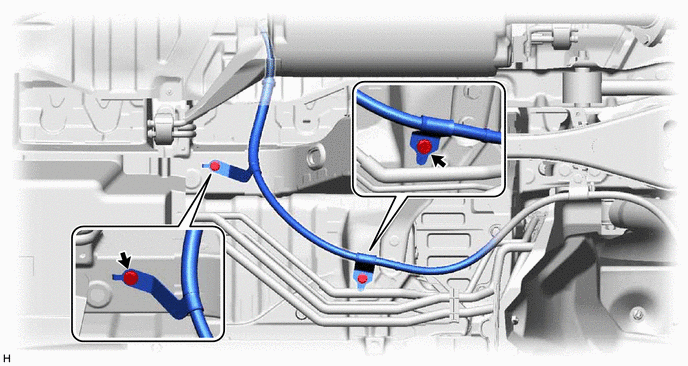

Connect the No. 3 parking brake cable assembly to the vehicle body with the 3 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

except Wagon:

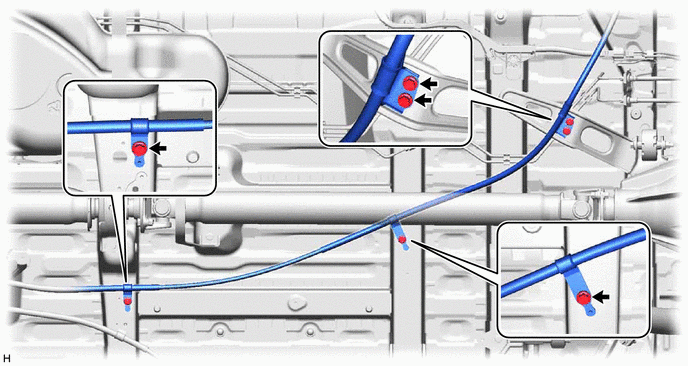

Connect the No. 3 parking brake cable assembly to the vehicle body with the 3 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

for Wagon:

Install the No. 3 parking brake cable assembly to the lower control arm assembly with the bolt.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

except Wagon:

Install the No. 3 parking brake cable assembly to the rear leaf spring assembly with the 2 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

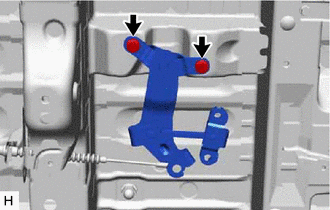

Install the parking brake intermediate lever sub-assembly to the vehicle body with the 2 bolts.

Torque:

32 N*m (326 kgf*cm, 24 ft.*lbf)

2.448,1 2.698,0.667 2.698,0.667 2.865,0.667 true 0.438,1.542 0.604,1.542 0.604,1.542 0.969,1.229 true 1.094,0.781 1.438,0.5 1.438,0.5 1.604,0.5 true 2.302,1.479 2.469,1.865 2.469,1.865 2.635,1.865 true 2.729,1.76 2.927,1.948 0.198,0.188 10 true *1 2.958,0.563 3.167,0.76 0.208,0.198 10 true *2 0.208,1.448 0.406,1.635 0.198,0.188 10 true *a 1.688,0.396 1.885,0.583 0.198,0.188 10 true *b

*1	No. 2 Parking Brake Cable Assembly
*2	No. 3 Parking Brake Cable Assembly
*a	End of No. 2 Parking Brake Cable Assembly
*b	End of No. 3 Parking Brake Cable Assembly
	MP grease

Apply MP grease to the circumference of the End of No. 2 and No. 3 parking brake cable assembly.

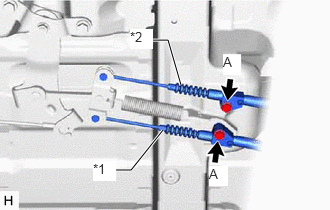

1.198,1.771 1.365,1.771 1.365,1.771 1.698,1.354 true 1.583,0.417 1.75,0.417 1.75,0.417 1.885,0.885 true 0.969,1.677 1.208,1.885 0.24,0.208 10 true *1 1.354,0.302 1.594,0.51 0.24,0.208 10 true *2 2.177,1.729 2.375,1.938 0.198,0.208 10 true A 2.323,0.563 2.51,0.781 0.188,0.219 10 true A

*1	No. 2 Parking Brake Cable Assembly
*2	No. 3 Parking Brake Cable Assembly

Install the No. 2 and No. 3 parking brake cable assemblies with the 2 bolts.

Torque:

for Bolt A : 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

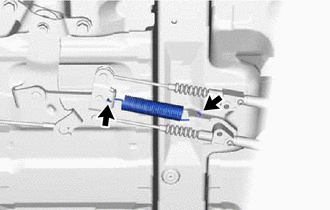

Install the parking brake intermediate lever tension spring.

for Standard Roof:

for High Roof:
