RM35X0E _54 Brake _078671 PARKING BRAKE _0381558 PARKING BRAKE CABLE(for Rear Side) A

PARKING BRAKE PARKING BRAKE CABLE(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 2 and No. 3 parking brake cable assemblies removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,202310,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 17420 2.REMOVE CENTER EXHAUST PIPE ASSEMBLY (for 7GR-FKS)

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201902,999999,_51,_079308,_0385728,RM100000001GNNZ,

Hide Display 17420 3.REMOVE CENTER EXHAUST PIPE ASSEMBLY (for 1GD-FTV)

Click hereEngine / Hybrid System>1GD-FTV (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_079307,_0385723,RM100000001M38X,

Hide Display 4.REMOVE UPPER MAIN MUFFLER HEAT INSULATOR

Click hereBrake>PARKING BRAKE>PARKING BRAKE CABLE (for Front Side)>REMOVAL201906,202310,_54,_078671,_0381557,RM100000001JQ5U_05_0029,

Hide Display 5.REMOVE NO. 3 FLOOR HEAT INSULATOR

Click hereBrake>PARKING BRAKE>PARKING BRAKE CABLE (for Front Side)>REMOVAL201906,202310,_54,_078671,_0381557,RM100000001JQ5U_05_0029,

Hide Display 58328B 6.REMOVE LOWER MAIN MUFFLER HEAT INSULATOR

for Standard Roof:

Remove the 3 bolts and lower main muffler heat insulator.

for High Roof:

Remove the 5 bolts and lower main muffler heat insulator.

Hide Display 46410 7.SEPARATE NO. 1 PARKING BRAKE CABLE ASSEMBLY

Click hereBrake>PARKING BRAKE>PARKING BRAKE CABLE (for Front Side)>REMOVAL201906,202310,_54,_078671,_0381557,RM100000001JQ5U_05_0001,

Hide Display 46301 8.REMOVE PARKING BRAKE INTERMEDIATE LEVER SUB-ASSEMBLY

Remove the parking brake intermediate lever tension spring.

1.198,1.771 1.365,1.771 1.365,1.771 1.698,1.354 true 1.583,0.417 1.75,0.417 1.75,0.417 1.885,0.885 true 0.969,1.677 1.208,1.885 0.24,0.208 10 true *1 1.354,0.302 1.594,0.51 0.24,0.208 10 true *2 2.177,1.729 2.375,1.938 0.198,0.208 10 true A 2.323,0.563 2.51,0.781 0.188,0.219 10 true A

*1	No. 2 Parking Brake Cable Assembly
*2	No. 3 Parking Brake Cable Assembly

Remove the 2 bolts and separate the No. 2 and No. 3 parking brake cable assemblies.

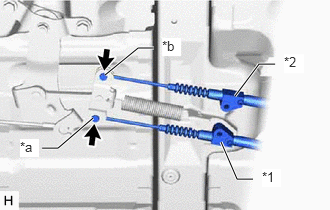

2.448,1 2.698,0.667 2.698,0.667 2.865,0.667 true 0.438,1.542 0.604,1.542 0.604,1.542 0.969,1.229 true 1.094,0.781 1.438,0.5 1.438,0.5 1.604,0.5 true 2.302,1.479 2.469,1.865 2.469,1.865 2.635,1.865 true 2.729,1.76 2.927,1.948 0.198,0.188 10 true *1 2.958,0.563 3.167,0.76 0.208,0.198 10 true *2 0.208,1.448 0.406,1.635 0.198,0.188 10 true *a 1.688,0.396 1.885,0.583 0.198,0.188 10 true *b

*1	No. 2 Parking Brake Cable Assembly
*2	No. 3 Parking Brake Cable Assembly
*a	End of No. 2 Parking Brake Cable Assembly
*b	End of No. 3 Parking Brake Cable Assembly

Disconnect the end of the No. 2 and No. 3 parking brake cable assemblies and separate the No. 2 and No. 3 parking brake cable assemblies from the parking brake intermediate lever sub-assembly.

Remove the 2 bolts and parking brake intermediate lever sub-assembly

Hide Display 46430 9.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Rear Drum Brake)

Click hereBrake>BRAKE (REAR)>REAR BRAKE (for Rear Drum Brake)>REMOVAL201902,999999,_54,_078669,_0381552,RM100000001G0N9,

Hide Display 46430 10.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Rear Disc Brake)

Click hereBrake>PARKING BRAKE>PARKING BRAKE ASSEMBLY (for Rear Disc Brake)>DISASSEMBLY201902,999999,_54,_078671,_0381560,RM100000001G0O5,

Hide Display 46420 11.SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

HINT:: Use the same procedure as for the No. 3 parking brake cable assembly.

Hide Display 46430 12.DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Rear Drum Brake)

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE SHAFT (for Rear Drum Brake)>REMOVAL201902,999999,_52,_079259,_0385090,RM100000001GKDM_02_0037,

Hide Display 46430 13.DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Rear Disc Brake)

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE SHAFT (for Rear Disc Brake)>REMOVAL201906,999999,_52,_079259,_0385092,RM100000001IPA9_02_0006,

Hide Display 46420 14.DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY

HINT:: Use the same procedure as for the No. 3 parking brake cable assembly.

Hide Display 46430 15.REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY (for High Roof)

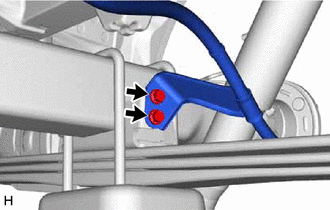

Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the rear leaf spring assembly.

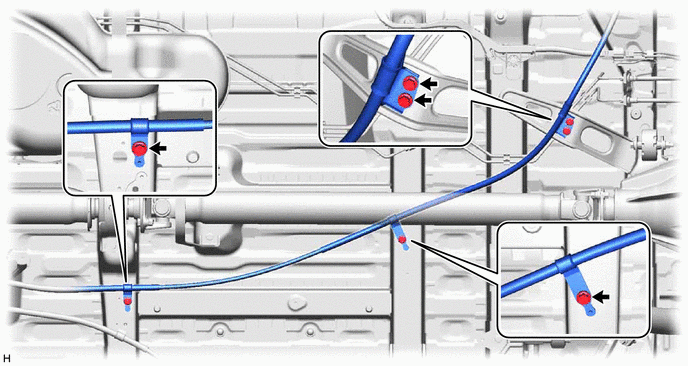

Remove the 4 bolts and No. 3 parking brake cable assembly from the vehicle body.

0,0 0,0 false

Hide Display 46430 16.REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Standard Roof)

for Wagon:

Remove the bolt and separate the No. 3 parking brake cable assembly from the lower control arm assembly.

except Wagon:

Remove the 2 bolts and separate the No. 3 parking brake cable assembly from the rear leaf spring assembly.

for Wagon:

Remove the 3 bolts and No. 3 parking brake cable assembly from the vehicle body.

except Wagon:

Remove the 3 bolts and No. 3 parking brake cable assembly from the vehicle body.

Hide Display 46420 17.REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY (for High Roof)

Remove the bolt and separate the No. 2 parking brake cable assembly from the rear leaf spring assembly.

Remove the 3 bolts and No. 2 parking brake cable assembly from the vehicle body.

Hide Display 46420 18.REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY (for Standard Roof)

for Wagon:

Remove the bolt and separate the No. 2 parking brake cable assembly from the lower control arm assembly.

except Wagon:

Remove the bolt and separate the No. 2 parking brake cable assembly from the rear leaf spring assembly.

for Wagon:

Remove the 2 bolts and No. 2 parking brake cable assembly from the vehicle body.

except Wagon:

Remove the 2 bolts and No. 2 parking brake cable assembly from the vehicle body.
