DOOR LOCK DOOR LOCK JUNCTION REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the slide door control junction male removal/installation are shown below.
| Replaced Part or Performed Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|---|
| Removal and installation of battery terminal | Parking assist monitor system | Memorize steering angle neutral point | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·Use the same procedure described for the RH side.
PROCEDURE
1. PRECAUTION (w/ Pretensioner and Force Limiter)
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ··
- NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Pretensioner and Force Limiter)
for 1GD-FTV:
Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
73210
3.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
- HINT:
-
Use the same procedure described for the LH side.
84261B

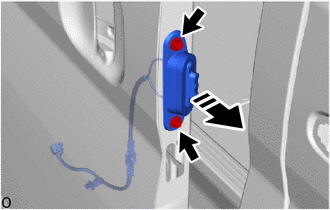

4.REMOVE SLIDE DOOR CONTROL JUNCTION MALE
|
Bolt |
|
Connector |
Disconnect the connector.
Remove the 2 bolts and slide door control junction male.
67667A
5.REMOVE SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for Standard Roof)
67667A
6.REMOVE SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for High Roof)
67603
7.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY RH (for Semi-trim, for Type A)
67603
8.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY RH (for Semi-trim, for Type B)
67680B
9.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for Standard Roof)
67680B
10.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for High roof)
67851E
11.REMOVE SLIDE DOOR SERVICE HOLE COVER RH
84262B

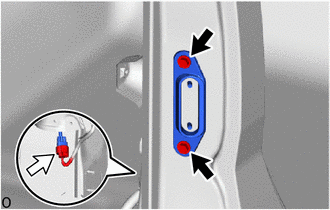

12.REMOVE SLIDE DOOR CONTROL JUNCTION FEMALE
Disconnect the connector and detach the clamp.
|
Remove in this Direction |
Remove the 2 bolts and slide door control junction female as shown in the illustration.
