RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0381535 BRAKE PEDAL(for RHD) A

BRAKE SYSTEM (OTHER)  BRAKE PEDAL(for RHD)  INSTALLATION


PROCEDURE

Hide 47121 1.INSTALL BRAKE PEDAL PAD

a.

Install the brake pedal pad to the brake pedal support assembly.

HINT:

Installation is easier after applying a small amount of soapy water.



Hide 47110 2.INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

a.
C410870

Install the brake pedal support assembly to the instrument panel reinforcement assembly with the bolt.

Torque:
23.6 N*m (241 kgf*cm, 17 ft.*lbf)


b.
C414023

Install the 2 clips to the brake pedal support assembly.


c.

w/ Brake pedal Load Sensing Switch:

i.
C417192

Connect the connector to the brake pedal support assembly.



Hide 47264A 3.INSTALL PUSH ROD PIN

a.
C414026C01
0,0 0,0 false
V100144

Lithium Soap Base Glycol Grease


for Type A:

i.

Apply lithium soap base glycol grease to the push rod pin.



b.
C297005C01
0,0 0,0 false
V100144

Lithium Soap Base Glycol Grease


for Type B:

i.

Apply lithium soap base glycol grease to the push rod pin.



c.
C410868

Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin as shown in the illustration and install a new clip.

NOTICE:

Install the push rod pin in the correct direction.



Hide 4.INSTALL BRAKE PEDAL RETURN SPRING

a.

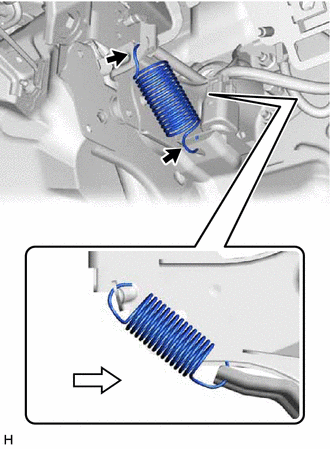

C410880C01
0,0 0,0 false
V100136

Front of the Vehicle


Install the brake pedal return spring to the brake pedal support assembly as shown in the illustration.

NOTICE:

Install the brake pedal return spring in the correct direction.
