RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0381539 BRAKE BOOSTER(for RHD) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for RHD)  INSTALLATION


PROCEDURE

Hide 44785 1.INSTALL BRAKE BOOSTER GASKET

a.

Install a new brake booster gasket to the brake booster assembly.


Hide 44610 2.INSTALL BRAKE BOOSTER ASSEMBLY

a.

Install the brake booster assembly to the vehicle body with the 4 nuts.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Do not apply excessive force to the brake lines.



Hide 5.INSTALL BRAKE LINE

a.

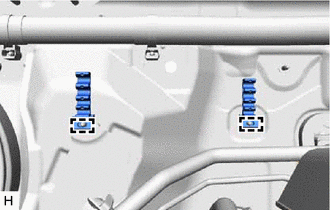

C412525

Engage the 2 clamps and install 2 new brake tube clamps to the vehicle body.


b.

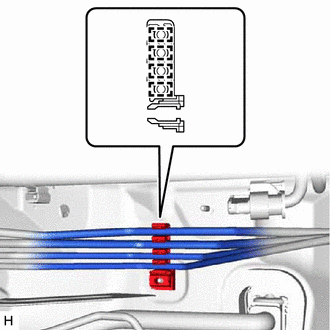

C412524

for Manual Transmission:

Engage the 4 clamps to connect the brake lines and clutch line to the brake tube clamp.


c.

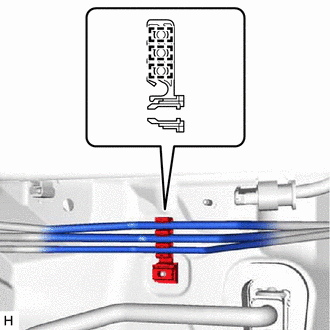

C412523

for Automatic Transmission:

Engage the 3 clamps to connect the brake lines to the brake tube clamp.


d.

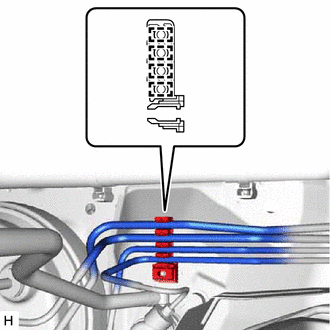

C412522

for Manual Transmission:

Engage the 4 clamps to connect the brake lines and clutch line to the brake tube clamp.


e.

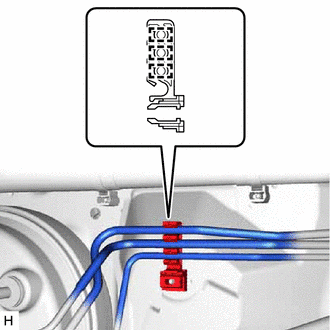

C412521

for Automatic Transmission:

Engage the 3 clamps to connect the brake lines to the brake tube clamp.


Hide 82111 6.CONNECT ENGINE ROOM MAIN WIRE

a.
A438024

w/ Stop and Start System:

i.

Connect the connector to the vacuum sensor.



b.

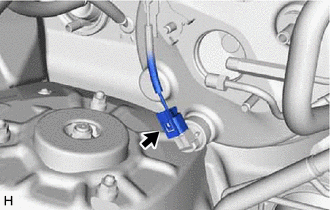

C412518

Connect the connector to the vacuum warning switch assembly.


Hide 44776 8.CONNECT BRAKE BOOSTER HOSE

a.

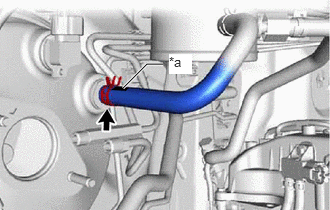

C414045C01
1.281,0.917 1.531,0.667 1.531,0.667 1.698,0.667 true 1.76,0.563 2,0.771 0.24,0.208 10 true *a
*a Paint Mark


Connect the brake booster hose to the brake booster assembly and slide the clip to secure it.

NOTICE:
·

When connecting the brake booster hose, face the paint mark up.

·

Make sure that the tabs of the clip are facing upward.
