RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0381535 BRAKE PEDAL(for RHD) N

BRAKE SYSTEM (OTHER)  BRAKE PEDAL(for RHD)  ADJUSTMENT


PROCEDURE

Hide 1.INSPECT AND ADJUST BRAKE PEDAL HEIGHT

HINT:

Inspect and adjust the brake pedal height with the floor carpet folded back.


a.

Remove the front door outside scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL

HINT:

Use the same procedure described for the LH side.



b.

Remove the front door scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL

HINT:

Use the same procedure described for the LH side.



c.

Remove the cowl side trim board RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

HINT:

Use the same procedure described for the LH side.



d.

Fold back the front floor carpet assembly.


e.

Check the brake pedal height.

i.

Measure the shortest distance between the left edge of the brake pedal pad and dash panel.

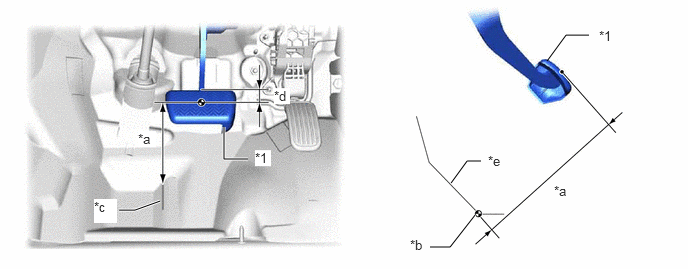

C410874C01
5.698,0.635 5.896,0.365 5.896,0.365 6.135,0.365 false 4.698,1.906 4.865,1.677 4.865,1.677 5.01,1.677 false 4.479,2.573 4.688,2.573 4.688,2.573 4.948,2.24 true 2.583,1.656 2.333,1.656 2.333,1.656 2.333,1.323 true 1.667,2.094 1.406,2.188 1.406,2.188 1.24,2.188 true 6.24,0.292 6.552,0.448 0.313,0.156 10 false *1 1.438,1.365 1.625,1.531 0.188,0.167 10 true *a 0.979,2.073 1.219,2.323 0.24,0.25 10 true *c 2.854,0.917 3.021,1.083 0.167,0.167 10 true *d 2.656,1.563 2.823,1.729 0.167,0.167 10 true *1 5.771,1.906 6.083,2.063 0.313,0.156 10 false *a 4.271,2.469 4.479,2.625 0.208,0.156 10 false *b 5.083,1.594 5.396,1.75 0.313,0.156 10 false *e
*A for Automatic Transmission - -
*1 Brake Pedal Pad - -
*a Brake Pedal Height *b Measuring Point of Dash Panel
*c Silencer Slit *d 30 mm (1.18 in.)
*e Dash Panel - -

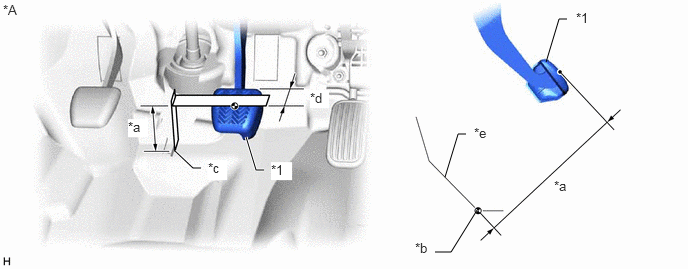

C414077C02
5.688,0.646 5.823,0.198 5.823,0.198 5.906,0.198 false 2.563,1.427 2.667,1.771 2.667,1.771 2.75,1.771 true 4.531,2.625 4.698,2.625 4.698,2.625 4.969,2.188 false 1.823,1.573 2.01,1.75 2.01,1.75 2.094,1.75 true 4.635,1.844 4.771,1.396 4.771,1.396 4.854,1.396 false 0.031,0.021 0.302,0.198 0.271,0.177 10 false *A 6,0.104 6.313,0.26 0.313,0.156 10 false *1 5.771,1.854 6,2.073 0.229,0.219 10 false *a 4.323,2.5 4.531,2.708 0.208,0.208 10 false *b 2.167,1.667 2.365,1.875 0.198,0.208 10 true *c 3.229,0.938 3.427,1.125 0.198,0.188 10 true *d 4.938,1.302 5.125,1.5 0.188,0.198 10 false *e 2.823,1.688 3.042,1.875 0.219,0.188 10 true *1 1.333,1.24 1.542,1.427 0.208,0.188 10 true *a
*A for Manual Transmission - -
*1 Brake Pedal Pad - -
*a Brake Pedal Height *b Measuring Point of Dash Panel
*c Silencer Slit *d 30 mm (1.18 in.)
*e Dash Panel - -


Brake Pedal Height from Dash Panel.:

218.7 to 232.7 mm (8.61 to 9.16 in.)


NOTICE:

Insert a vernier caliper into the dash panel insulator slit until it contacts the vehicle body, and measure the brake pedal height.


HINT:

If the brake pedal height is not as specified, inspect and adjust the push rod length according to the procedure below.




f.

Adjust the brake pedal height.

i.

Remove the stop light switch assembly.

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL


ii.

Remove the lower No. 1 instrument panel airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL


iii.

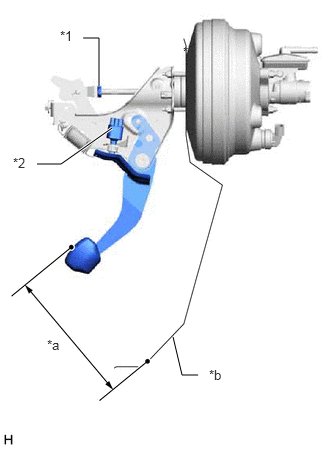

C410876C01
0.865,0.396 1.031,0.396 1.031,0.396 1.031,0.896 true 1.802,3.51 1.896,3.906 1.896,3.906 2.063,3.906 true 0.385,1.708 0.635,1.708 0.635,1.708 1.167,1.333 true 1.906,0.458 2.219,0.771 0.313,0.313 10 false *1 0.135,1.615 0.417,1.844 0.281,0.229 10 false *2 0.49,3.51 0.802,3.667 0.313,0.156 10 false *a 2.177,3.823 2.49,3.979 0.313,0.156 10 false *b 0.625,0.292 0.906,0.521 0.281,0.229 10 false *1
*1 Clevis Lock Nut
*2 Stop Light Switch Assembly
*a Brake Pedal Height
*b Dash Panel


Loosen the clevis lock nut and adjust the brake pedal height by turning the push rod to achieve the correct height.

Brake Pedal Height from Dash Panel:

218.7 to 232.7 mm (8.61 to 9.16 in.)



iv.

Tighten the clevis lock nut.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


v.

Install the lower No. 1 instrument panel airbag assembly.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION


vi.

Install the stop light switch assembly.

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>INSTALLATION



g.

Install the front floor carpet assembly to its original position.


h.

Install the cowl side trim board RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION

HINT:

Use the same procedure described for the LH side.



i.

Install the front door scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION

HINT:

Use the same procedure described for the LH side.



j.

Install the front door outside scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION

HINT:

Use the same procedure described for the LH side.



Hide 2.INSPECT BRAKE PEDAL FREE PLAY

a.

Stop the engine and firmly depress the brake pedal several times until no vacuum is left in the brake booster assembly.


b.
C132708C04
2.177,1.542 2.781,1.885 0.604,0.344 10 *a
*a Brake Pedal Free Play


Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.

Brake Pedal Free Play:

1.0 to 6.0 mm (0.0394 to 0.236 in.)


If the brake pedal free play is not as specified, check the stop light switch clearance.

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>INSTALLATION

If the brake pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.


Hide 3.INSPECT BRAKE PEDAL RESERVE DISTANCE

NOTICE:

Measure the brake pedal reserve distance at the same point used for the brake pedal height inspection.


a.

Remove the front door outside scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL

HINT:

Use the same procedure described for the LH side.



b.

Remove the front door scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL

HINT:

Use the same procedure described for the LH side.



c.

Remove the cowl side trim board RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL

HINT:

Use the same procedure described for the LH side.



d.

Fold back the front floor carpet assembly.


e.

With the engine running, depress the brake pedal and measure the brake pedal reserve distance.

C410874C02
5.698,0.635 5.896,0.365 5.896,0.365 6.135,0.365 false 4.698,1.906 4.865,1.677 4.865,1.677 5.01,1.677 false 4.479,2.573 4.688,2.573 4.688,2.573 4.948,2.24 true 2.583,1.656 2.333,1.656 2.333,1.656 2.333,1.323 true 1.667,2.094 1.406,2.188 1.406,2.188 1.24,2.188 true 6.24,0.292 6.552,0.448 0.313,0.156 10 false *1 1.438,1.365 1.625,1.531 0.188,0.167 10 true *a 0.979,2.073 1.219,2.323 0.24,0.25 10 true *c 2.854,0.917 3.021,1.083 0.167,0.167 10 true *d 2.656,1.563 2.823,1.729 0.167,0.167 10 true *1 5.771,1.906 6.083,2.063 0.313,0.156 10 false *a 4.271,2.469 4.479,2.625 0.208,0.156 10 false *b 5.083,1.594 5.396,1.75 0.313,0.156 10 false *e
*A for Automatic Transmission - -
*1 Brake Pedal Pad - -
*a Brake Pedal Reserve Distance *b Measuring Point of Dash Panel
*c Silencer Slit *d 30 mm (1.18 in.)
*e Dash Panel - -


C414077C03
5.688,0.646 5.823,0.198 5.823,0.198 5.906,0.198 false 2.563,1.427 2.667,1.771 2.667,1.771 2.75,1.771 true 4.531,2.625 4.698,2.625 4.698,2.625 4.969,2.188 false 1.823,1.573 2.01,1.75 2.01,1.75 2.094,1.75 true 4.635,1.844 4.771,1.396 4.771,1.396 4.854,1.396 false 0.031,0.021 0.302,0.198 0.271,0.177 10 false *A 6,0.104 6.313,0.26 0.313,0.156 10 false *1 5.771,1.854 6,2.073 0.229,0.219 10 false *a 4.323,2.5 4.531,2.708 0.208,0.208 10 false *b 2.167,1.667 2.365,1.875 0.198,0.208 10 true *c 3.229,0.938 3.427,1.125 0.198,0.188 10 true *d 4.938,1.302 5.125,1.5 0.188,0.198 10 false *e 2.823,1.688 3.042,1.875 0.219,0.188 10 true *1 1.333,1.24 1.542,1.427 0.208,0.188 10 true *a
*A for Manual Transmission - -
*1 Brake Pedal Pad - -
*a Brake Pedal Reserve Distance *b Measuring Point of Dash Panel
*c Silencer Slit *d 30 mm (1.18 in.)
*e Dash Panel - -


Brake Pedal Reserve Distance from Dash Panel. at 300 N (31 kgf, 67.4 lbf):
Model Specified Condition
for Rear Drum Brake 116 mm (4.57 in.) or more
for Rear Disc Brake 123 mm (4.84 in.) or more


If the distance is not as specified, troubleshoot the brake system.

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE SYSTEM>PROBLEM SYMPTOMS TABLE


f.

Install the front floor carpet assembly to its original position.


g.

Install the cowl side trim board RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION

HINT:

Use the same procedure described for the LH side.



h.

Install the front door scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION

HINT:

Use the same procedure described for the LH side.



i.

Install the front door outside scuff plate RH.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION

HINT:

Use the same procedure described for the LH side.
