RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384445 STOP LIGHT SWITCH A

LIGHTING (EXT)  STOP LIGHT SWITCH  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 84345 1.INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

a.

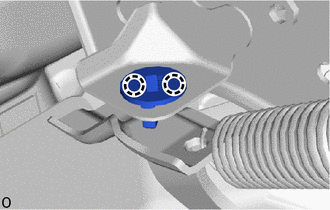

E413279

Attach the claw to install a new stop light switch mounting adjuster.


Hide 84340 2.INSTALL STOP LIGHT SWITCH ASSEMBLY

a.
E167768

Insert the stop light switch assembly to the stop light switch mounting adjuster until the switch body slightly touches the brake pedal.

NOTICE:

Do not depress the brake pedal.



b.

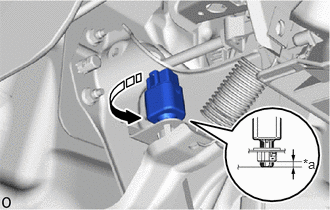

E413280C01
3.156,1.625 3.333,1.813 0.177,0.188 10 false *a
*a Protrusion Amount Measurement Area
V113147

Turn in this Direction


Turn the stop light switch assembly by approximately one fourth of a rotation as shown in the illustration.


c.

Check the protrusion amount of the shaft.

Standard:

0.5 to 2.6 mm (0.0197 to 0.102 in.)



d.

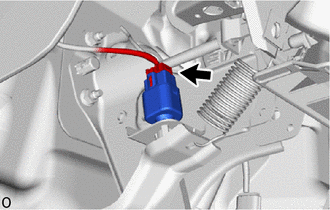

E413281

Connect the connector.
