RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384935 STEERING PAD A

SUPPLEMENTAL RESTRAINT SYSTEMS STEERING PAD INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 45130 1.INSTALL HORN BUTTON ASSEMBLY

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

2.198,0.583 2.385,0.771 0.188,0.188 10 true *a

*a	Wire Harness Clamp
	Airbag Connector
	Horn Connector

for Dual Type:

Support the horn button assembly with one hand.

ii.

Connect the horn connector and attach the wire harness clamp.

iii.

Connect the 2 airbag connectors.

NOTICE:: ·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Be sure to connect the connectors to each corresponding color.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

iv.

Set the horn button assembly to the steering wheel assembly.

Check that the airbag wire harness and horn wire harness are not pinched.

2.198,0.583 2.385,0.771 0.188,0.188 10 true *a

*a	Wire Harness Clamp
	Airbag Connector
	Horn Connector

for Single Type:

Support the horn button assembly with one hand.

ii.

Connect the horn connector and attach the wire harness clamp.

iii.

Connect the airbag connector.

NOTICE:: ·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

Make sure the lock button is securely locked.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

iv.

Set the horn button assembly to the steering wheel assembly.

Check that the airbag wire harness and horn wire harness are not pinched.

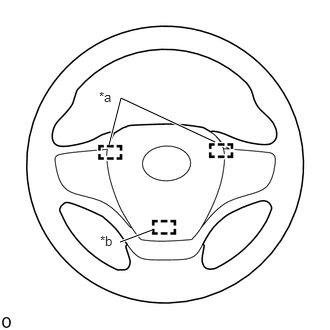

1.25,2.521 1.583,2.396 true 1.135,1.51 1.26,1.021 1.26,1.021 2.24,1.479 true 1.031,0.927 1.219,1.104 0.188,0.177 10 true *a 1.042,2.427 1.229,2.625 0.188,0.198 10 true *b
