SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the horn button assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:
·

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system


-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

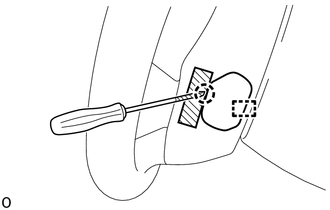

Hide 45186 3.REMOVE LOWER NO. 2 STEERING WHEEL COVER

a.
B528831C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver, insert the screwdriver into the cutout of the lower No. 2 steering wheel cover and detach the claw and guide to remove the lower No. 2 steering wheel cover.

HINT:

Before performing work, wrap the tip of the screwdriver with protective tape and apply protective tape to the position shown in the illustration.

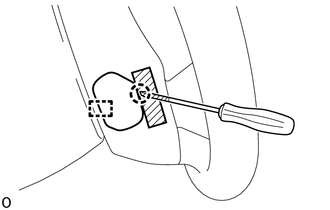

Hide 45187 4.REMOVE LOWER NO. 3 STEERING WHEEL COVER

a.
B528832C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver, insert the screwdriver into the cutout of the lower No. 3 steering wheel cover and detach the claw and guide to remove the lower No. 3 steering wheel cover.

HINT:

Before performing work, wrap the tip of the screwdriver with protective tape and apply protective tape to the position shown in the illustration.



Hide 45130 5.REMOVE HORN BUTTON ASSEMBLY

CAUTION:
B528833C01
0,0 0,0 false
V100155

Deployment Side


·

When storing the horn button assembly, keep the airbag deployment side facing upward.

·

If the airbag deploys for any reason, it may cause a serious accident.



a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




c.
B528834C01
0,0 0,0 false
V100135

Release in this Direction


Using a screwdriver, insert it from the hole of the steering wheel assembly and push the torsion spring to detach the pin.

HINT:

Insert the screwdriver into the installation areas of the lower No. 2 steering wheel cover and lower No. 3 steering wheel cover.



d.

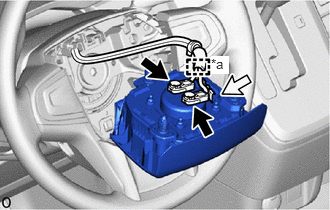

B524554C01
2.198,0.583 2.385,0.771 0.188,0.188 10 true *a
*a Wire Harness Clamp
V100135

Airbag Connector
V100136

Horn Connector


for Dual Type:

i.

Tilt the horn button assembly toward the seat and support it with one hand.

NOTICE:
·

Do not drop the horn button assembly.

·

When disconnecting the horn button assembly, do not pull the airbag wire harness.





iii.

Detach the wire harness clamp and disconnect the horn connector.



e.

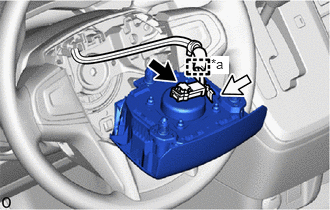

B524555C01
2.198,0.583 2.385,0.771 0.188,0.188 10 true *a
*a Wire Harness Clamp
V100135

Airbag Connector
V100136

Horn Connector


for Single Type:

i.

Tilt the horn button assembly toward the seat and support it with one hand.

NOTICE:
·

Do not drop the horn button assembly.

·

When disconnecting the horn button assembly, do not pull the airbag wire harness.




ii.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:




iii.

Detach the wire harness clamp and disconnect the horn connector.
