SUPPLEMENTAL RESTRAINT SYSTEMS  CENTER AIRBAG SENSOR ASSEMBLY  INSTALLATION

89170 1.INSTALL AIRBAG SENSOR ASSEMBLY

a.

Check that the ignition switch is off.

b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

c.

Install the airbag sensor assembly with the 3 bolts.

Torque:

17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:

·

If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the airbag sensor assembly with a new one.

·

When installing the airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

·

When the ignition switch is first turned to ON after the airbag sensor assembly has been replaced, make sure that no one is in the vehicle.

d.

0,0 0,0 false

Push in

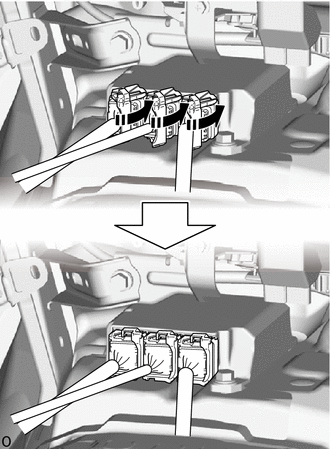

Connect the 3 connectors and push in the lock lever to lock the connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

e.

Check that there is no looseness in the installation parts of the airbag sensor assembly.

55646 2.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER

58534E 3.INSTALL CENTER FLOOR CARPET COVER LH

58533C 4.INSTALL CENTER FLOOR CARPET COVER RH

58802E 5.INSTALL FRONT CONSOLE BOX SUB-ASSEMBLY (w/ Console Tray, for Short Type)

58839A 6.INSTALL CONSOLE BOX HOLE COVER (w/ Console Tray, for Short Type)

58810J 7.INSTALL CONSOLE BOX ASSEMBLY (w/ Console Tray, for Long Type)

58904B 8.INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY (w/ Console Tray, for Long Type, for Separate Seat Type)

58839A 9.INSTALL CONSOLE BOX HOLE COVER (w/ Console Tray, for Long Type, w/o Console Box, w/o Fire Extinguisher)

58199D 10.INSTALL NO. 2 EXTINGUISHER BRACKET (w/ Console Tray, for Long Type, w/o Console Box, w/ Fire Extinguisher)

58919B 11.INSTALL CONSOLE BOX PLATE (w/ Console Tray, for Long Type, w/o Console BOX)

58820A 12.INSTALL CONSOLE COMPARTMENT BOX ASSEMBLY (w/ Console Tray, for Long Type, w/ Console Box)

58815A 13.INSTALL CONSOLE BOX CARPET (w/ Console Tray, for Long Type, w/ Console Box, w/o Fire Extinguisher)

58825A 14.INSTALL CONSOLE BOX POCKET (w/ Console Tray, for Long Type, w/ Console Box, w/o Fire Extinguisher)

58199D 15.INSTALL NO. 2 EXTINGUISHER BRACKET (w/ Console Tray, for Long Type, w/ Console Box, w/ Fire Extinguisher)

58903E 16.INSTALL NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY (w/ Console Tray, for Long Type, w/ Console Box)

58903A 17.INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY (w/ Console Tray, for Long Type)

55438A 18.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER

55317A 19.INSTALL INSTRUMENT SIDE PANEL RH

55012A 20.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

55632B 21.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT

55642 22.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER

55641 23.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

55318C 24.INSTALL INSTRUMENT SIDE PANEL LH

55011A 25.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

55631A 26.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

62112 27.INSTALL COWL SIDE TRIM BOARD LH

67914B 28.INSTALL FRONT DOOR SCUFF PLATE LH

67912A 29.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

30.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

31. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

32.PERFORM DIAGNOSTIC SYSTEM CHECK

33.CHECK SRS WARNING LIGHT

34.PERFORM SYSTEM INITIALIZATION AND CALIBRATION
