DOOR / HATCH  POWER SLIDE DOOR SYSTEM  Power Slide Door LH does not Operate Using Cabin Switch


DESCRIPTION

The No. 2 power slide door control switch signal is sent to the slide door motor unit LH (slide door ECU LH).

If the power slide door does not operate using the No. 2 power slide door control switch, a No. 2 power slide door control switch circuit malfunction is a possible cause.

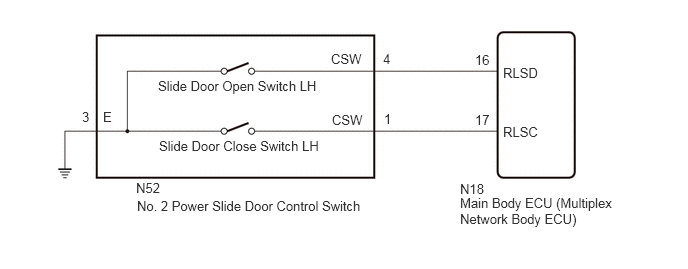

WIRING DIAGRAM

E416516E01
4.792,1.885 5.25,2.083 0.458,0.198 10 false N18 4.792,2.031 6.417,2.396 1.625,0.365 10 false Main Body ECU (Multiplex Network Body ECU) 1.417,1.875 1.875,2.073 0.458,0.198 10 false N52 1.427,2.063 6.167,2.26 4.74,0.198 10 false No. 2 Power Slide Door Control Switch 5.24,0.677 5.854,0.875 0.615,0.198 10 false RLSD 5.24,1.292 5.854,1.49 0.615,0.198 10 false RLSC 3.448,0.531 3.906,0.729 0.458,0.198 10 false CSW 3.458,1.167 3.917,1.365 0.458,0.198 10 false CSW 1.073,1.135 1.229,1.333 0.156,0.198 10 false E 0.854,1.135 1.01,1.333 0.156,0.198 10 false 3 3.99,0.531 4.146,0.729 0.156,0.198 10 false 4 4,1.156 4.156,1.354 0.156,0.198 10 false 1 4.948,0.542 5.26,0.74 0.313,0.198 10 false 16 4.948,1.167 5.26,1.365 0.313,0.198 10 false 17 1.646,0.813 5.01,1.01 3.365,0.198 10 false Slide Door Open Switch LH 1.656,1.438 5.021,1.635 3.365,0.198 10 false Slide Door Close Switch LH

CAUTION / NOTICE / HINT

NOTICE:

w/ Entry and Start System:

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.


PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Main Body > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
Slide Door LH Close Switch No. 2 power slide door control switch (slide door close switch LH) signal ON or OFF ON: No. 2 power slide door control switch (slide door close switch LH) on
OFF: No. 2 power slide door control switch (slide door close switch LH) off 		-
Slide Door LH Open Switch No. 2 power slide door control switch (slide door open switch LH) signal ON or OFF ON: No. 2 power slide door control switch (slide door open switch LH) on
OFF: No. 2 power slide door control switch (slide door open switch LH) off 		-
Body Electrical > Main Body > Data List
Tester Display
Slide Door LH Close Switch
Slide Door LH Open Switch
50003 123 297,299
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Result Proceed to
OK (for LHD) A
OK (for RHD) B
NG C



A

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL


B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


C

2.INSPECT NO. 2 POWER SLIDE DOOR CONTROL SWITCH
2.INSPECT NO. 2 POWER SLIDE DOOR CONTROL SWITCH
a.

Remove the No. 2 power slide door control switch.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR CONTROL SWITCH>REMOVAL


b.

Inspect the No. 2 power slide door control switch.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR CONTROL SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (NO. 2 POWER SLIDE DOOR CONTROL SWITCH - MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU] AND BODY GROUND)

NG

REPLACE NO. 2 POWER SLIDE DOOR CONTROL SWITCH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR CONTROL SWITCH>REMOVAL


3.CHECK HARNESS AND CONNECTOR (NO. 2 POWER SLIDE DOOR CONTROL SWITCH - MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU] AND BODY GROUND)
a.

Disconnect the N52 No. 2 power slide door control switch connector.


b.

Disconnect the N18 main body ECU (multiplex network body ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N52-1 (CSW) - N18-17 (RLSC) Always Below 1 Ω
N52-4 (CSW) - N18-16 (RLSD) Always Below 1 Ω
N52-3 (E) - Body ground Always Below 1 Ω
N52-1 (CSW) or N18-17 (RLSC) - Body ground Always 10 kΩ or higher
N52-4 (CSW) or N18-16 (RLSD) - Body ground Always 10 kΩ or higher



Result:
Result Proceed to
OK (for LHD) A
OK (for RHD) B
NG C



A

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>REMOVAL


B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for RHD)>REMOVAL


C

REPAIR OR REPLACE HARNESS OR CONNECTOR
