DOOR / HATCH  POWER SLIDE DOOR SYSTEM  Power Slide Door LH does not Operated Using Any Operation


DESCRIPTION

The power slide door main switch signal is sent to the slide door motor unit LH (slide door ECU LH) and slide door motor unit RH (slide door ECU RH)*.

If the power slide door does not operate using any of the operations, a malfunction related to the power slide door operation conditions, power slide door main switch or power slide door sensor assembly LH circuit malfunction is a possible cause.

*: w/ Power Slide Door RH

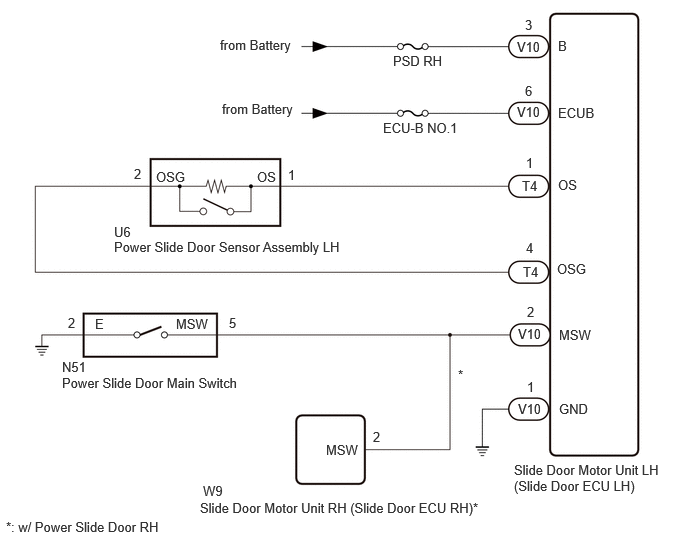

WIRING DIAGRAM

E416711E05
2.292,0.385 4.125,0.583 1.833,0.198 10 false from Battery 2.313,1.052 4.146,1.25 1.833,0.198 10 false from Battery 4.094,0.552 5.01,0.75 0.917,0.198 10 false PSD RH 3.99,1.25 4.906,1.448 0.917,0.198 10 false ECU-B NO.1 5.385,0.406 5.844,0.604 0.458,0.198 10 false V10 5.385,1.083 5.844,1.281 0.458,0.198 10 false V10 5.396,3.396 5.854,3.594 0.458,0.198 10 false V10 5.396,4.177 5.854,4.375 0.458,0.198 10 false V10 5.813,0.396 5.969,0.594 0.156,0.198 10 false B 5.469,0.177 5.625,0.375 0.156,0.198 10 false 3 2.677,1.76 2.99,1.958 0.313,0.198 10 false OS 5.813,1.094 6.427,1.292 0.615,0.198 10 false ECUB 2.115,5.031 2.573,5.229 0.458,0.198 10 false W9 5.813,1.844 6.125,2.042 0.313,0.198 10 false OS 5.438,1.854 5.896,2.052 0.458,0.198 10 false T4 5.448,2.75 5.906,2.948 0.458,0.198 10 false T4 5.802,2.719 6.417,2.917 0.615,0.198 10 false OSG 5.823,3.406 6.438,3.604 0.615,0.198 10 false MSW 3.396,4.604 4.01,4.802 0.615,0.198 10 false MSW 5.823,4.177 6.438,4.375 0.615,0.198 10 false GND 5.354,4.813 6.917,5.208 1.563,0.396 10 false Slide Door Motor Unit LH (Slide Door ECU LH) 2.083,5.208 5.344,5.604 3.26,0.396 10 false Slide Door Motor Unit RH (Slide Door ECU RH)* 0.063,5.406 3.885,5.604 3.823,0.198 10 false *: w/ Power Slide Door RH 1.188,2.49 6.542,2.688 5.354,0.198 10 false Power Slide Door Sensor Assembly LH 1.188,2.333 1.646,2.531 0.458,0.198 10 false U6 1.625,1.76 2.24,1.958 0.615,0.198 10 false OSG 3,1.74 3.156,1.938 0.156,0.198 10 false 1 1.396,1.729 1.552,1.927 0.156,0.198 10 false 2 5.469,0.865 5.625,1.063 0.156,0.198 10 false 6 5.479,1.615 5.635,1.813 0.156,0.198 10 false 1 0.646,3.74 1.104,3.938 0.458,0.198 10 false N51 0.646,3.906 4.927,4.104 4.281,0.198 10 false Power Slide Door Main Switch 0.708,3.281 0.865,3.479 0.156,0.198 10 false 2 2.385,3.281 2.542,3.479 0.156,0.198 10 false 5 3.885,4.469 4.042,4.667 0.156,0.198 10 false 2 4.771,3.823 4.927,4.021 0.156,0.198 10 false * 5.479,2.5 5.635,2.698 0.156,0.198 10 false 4 5.49,3.167 5.646,3.365 0.156,0.198 10 false 2 5.49,3.948 5.646,4.146 0.156,0.198 10 false 1 0.99,3.292 1.146,3.49 0.156,0.198 10 false E 1.833,3.292 2.448,3.49 0.615,0.198 10 false MSW

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] - BATTERY AND BODY GROUND)
a.
E416917C02
1.469,0.188 1.938,0.417 0.469,0.229 0.979,0.615 1.146,0.615 1.146,0.615 1.406,0.865 true 1.99,0.844 2.219,0.656 2.219,0.656 2.448,0.656 true 0.948,1.594 1.115,1.594 1.115,1.594 1.375,1.24 true 0.094,0.073 0.406,0.229 0.313,0.156 10 false *a 1.583,0.208 1.896,0.365 0.313,0.156 10 false V10 0.531,1.51 0.99,1.75 0.458,0.24 10 false ECUB 2.521,0.573 2.979,0.813 0.458,0.24 10 false GND 0.833,0.542 1.292,0.781 0.458,0.24 10 false B

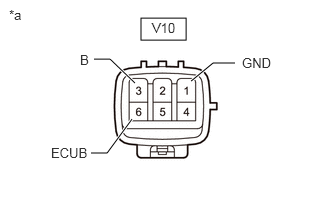

*a Front view of wire harness connector
(to Slide Door Motor Unit LH [Slide Door ECU LH])


Disconnect the slide door motor unit LH (slide door ECU LH) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V10-1 (GND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
V10-3 (B) - Body ground Always 11 to 14 V
V10-6 (ECUB) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Left Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
PSD Main Switch Power slide door main switch signal ON or OFF ON: Power slide door main switch on
OFF: Power slide door main switch off 		-
Body Electrical > Rear Left Door > Data List
Tester Display
PSD Main Switch
50003 160 8
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

3.READ VALUE USING GTS

NG

6.INSPECT POWER SLIDE DOOR MAIN SWITCH
3.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Left Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
PSD Touch Sensor Power slide door sensor assembly LH signal OFF, ON or Open OFF: Power slide door sensor assembly LH not pressed
ON: Power slide door sensor assembly LH pressed
Open: Power slide door sensor assembly LH open 		-
Body Electrical > Rear Left Door > Data List
Tester Display
PSD Touch Sensor
50003 160 5
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

4.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY LH
4.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY LH
a.

Remove the power slide door sensor assembly LH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL



b.

Inspect the power slide door sensor assembly LH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>INSPECTION

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>INSPECTION



Result:
Result Proceed to
OK A
NG (except Wagon) B
NG (for Wagon) C



A

5.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] - POWER SLIDE DOOR SENSOR ASSEMBLY LH)

B

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL


C

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL


5.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] - POWER SLIDE DOOR SENSOR ASSEMBLY LH)
a.

Disconnect the T4 slide door motor unit LH (slide door ECU LH) connector.


b.

Disconnect the U6 power slide door sensor assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T4-4 (OSG) - U6-2 (OSG) Always Below 1 Ω
T4-1 (OS) - U6-1 (OS) Always Below 1 Ω
T4-4 (OSG) or U6-2 (OSG) - Body ground Always 10 kΩ or higher
T4-1 (OS) or U6-1 (OS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.INSPECT POWER SLIDE DOOR MAIN SWITCH
a.

Remove the power slide door main switch.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MAIN SWITCH>REMOVAL


b.

Inspect the power slide door main switch.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MAIN SWITCH>INSPECTION


Result:
Result Proceed to
OK (w/o Power Slide Door RH) A
OK (w/ Power Slide Door RH) B
NG C



A

7.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR MAIN SWITCH - SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] AND BODY GROUND)

B

8.READ VALUE USING GTS

C

REPLACE POWER SLIDE DOOR MAIN SWITCH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MAIN SWITCH>REMOVAL


7.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR MAIN SWITCH - SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] AND BODY GROUND)
a.

Disconnect the N51 power slide door main switch connector.


b.

Disconnect the V10 slide door motor unit LH (slide door ECU LH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V10-2 (MSW) - N51-5 (MSW) Always Below 1 Ω
N51-2 (E) - Body ground Always 10 kΩ or higher
V10-2 (MSW) or N51-5 (MSW) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.READ VALUE USING GTS
a.

Disconnect the W9 slide door motor unit RH (slide door ECU RH) connector.


b.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Left Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
PSD Main Switch Power slide door main switch signal ON or OFF ON: Power slide door main switch on
OFF: Power slide door main switch off 		-
Body Electrical > Rear Left Door > Data List
Tester Display
PSD Main Switch
50003 160 8
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

9.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR MAIN SWITCH - SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] AND BODY GROUND)
9.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR MAIN SWITCH - SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] AND BODY GROUND)
a.

Disconnect the N51 power slide door main switch connector.


b.

Disconnect the V10 slide door motor unit LH (slide door ECU LH) connector.


c.

Disconnect the W9 slide door motor unit RH (slide door ECU RH) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V10-2 (MSW) - N51-5 (MSW) Always Below 1 Ω
N51-2 (E) - Body ground Always 10 kΩ or higher
V10-2 (MSW) or N51-5 (MSW) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
