DOOR / HATCH  POWER SLIDE DOOR TOUCH SENSOR(except Wagon)  REMOVAL

67667A 1.REMOVE SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for Standard Roof)

67667A 2.REMOVE SLIDE DOOR WINDOW GARNISH RH (for Full-trim, for High Roof)

67603 3.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY RH (for Semi-trim)

67680B 4.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for Standard Roof)

67680B 5.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY RH (for Full-trim, for High Roof)

67851E 6.REMOVE SLIDE DOOR SERVICE HOLE COVER RH

84250B 7.REMOVE POWER SLIDE DOOR SENSOR ASSEMBLY RH (for Standard Roof)

a.

Disconnect the connector.

b.

0,0 0,0 false

	Screw
	Bolt

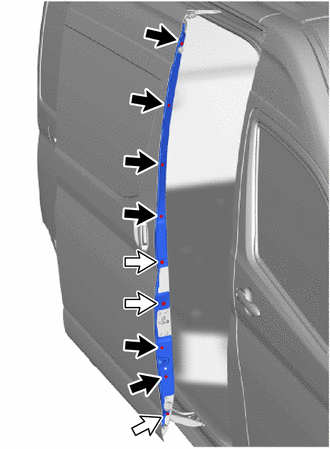

Remove the 5 screws and 3 bolts.

c.

0,0 0,0 false

Remove in this Direction

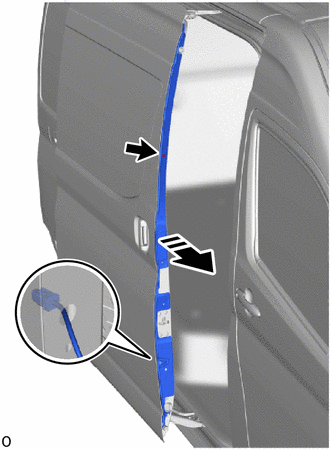

Remove the temporary screw and power slide door sensor assembly RH as shown in the illustration.

d.

Detach the claw and remove the 5 screw grommets.

84250B 8.REMOVE POWER SLIDE DOOR SENSOR ASSEMBLY RH (for High Roof)

a.

Disconnect the connector.

b.

0,0 0,0 false

	Screw
	Bolt

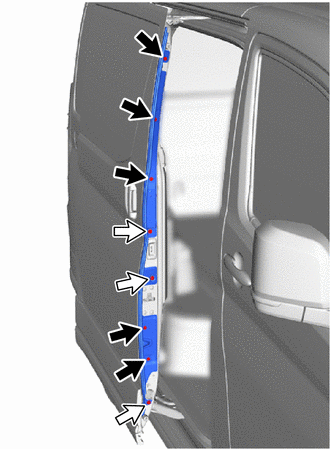

Remove the 6 screws and 3 bolts.

c.

0,0 0,0 false

Remove in this Direction

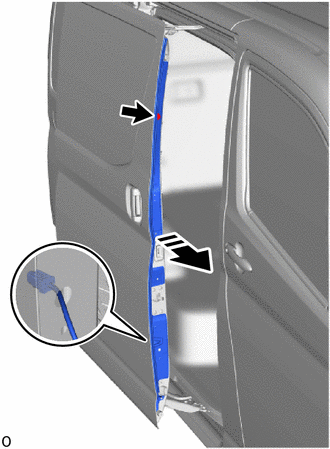

Remove the temporary screw and power slide door sensor assembly RH as shown in the illustration.

d.

Detach the claw and remove the 6 screw grommets.
