DOOR / HATCH  POWER SLIDE DOOR SYSTEM  B222D  Rear Power Slide Door LH Touch Sensor Circuit


DESCRIPTION

This DTC is output when the slide door motor unit LH (slide door ECU LH) detects a malfunction in the power slide door sensor assembly LH.

DTC No. Detection Item DTC Detection Condition Trouble Area
B222D Rear Power Slide Door LH Touch Sensor Circuit Malfunction detected in power slide door sensor assembly LH
·

Power slide door sensor assembly LH

·

Slide door motor unit LH (slide door ECU LH)

·

Harness or connector

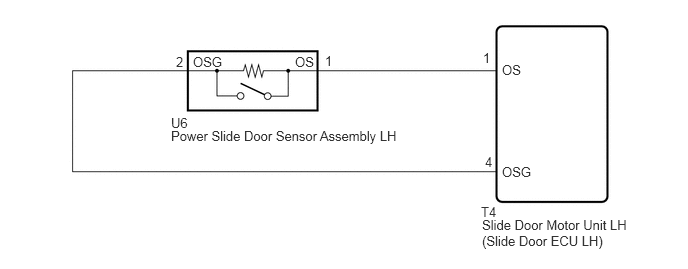

WIRING DIAGRAM

B366061E17
5.01,2.125 6.635,2.417 1.625,0.292 10 false T4 5.021,2.26 6.573,2.604 1.552,0.344 10 false Slide Door Motor Unit LH (Slide Door ECU LH) 5.229,1.708 6.854,2 1.625,0.292 10 false OSG 2.01,0.563 3.635,0.854 1.625,0.292 10 false OSG 3.073,0.563 4.698,0.854 1.625,0.292 10 false OS 5.229,0.646 6.854,0.938 1.625,0.292 10 false OS 5.031,0.521 6.656,0.813 1.625,0.292 10 false 1 5.052,1.604 6.677,1.896 1.625,0.292 10 false 4 3.385,0.552 5.01,0.844 1.625,0.292 10 false 1 1.833,0.563 3.458,0.854 1.625,0.292 10 false 2 1.781,1.198 3.813,1.531 2.031,0.333 10 false U6 1.781,1.333 4.479,1.729 2.698,0.396 10 false Power Slide Door Sensor Assembly LH

CAUTION / NOTICE / HINT

NOTICE:

If the replacement, removal and installation of the slide door motor unit or disconnection of the connectors of the slide door motor unit has been performed, initialize the power slide door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION


PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTC.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Left Door > Clear DTCs
50002 160

b.

Check for DTC.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Left Door > Trouble Codes
50001 160
OK:

DTC B222D is not output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.READ VALUE USING GTS
2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Left Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
PSD Touch Sensor Power slide door sensor assembly LH signal OFF, ON or Open OFF: Power slide door sensor assembly LH not pressed
ON: Power slide door sensor assembly LH pressed
Open: Power slide door sensor assembly LH open 		-
Body Electrical > Rear Left Door > Data List
Tester Display
PSD Touch Sensor
50003 160 5
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

3.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY LH
3.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY LH
a.

Remove the power slide door sensor assembly LH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL



b.

Inspect the power slide door sensor assembly LH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>INSPECTION

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>INSPECTION



Result:
Result Proceed to
OK A
NG (except Wagon) B
NG (for Wagon) C



A

4.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] - POWER SLIDE DOOR SENSOR ASSEMBLY LH)

B

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL


C

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT LH [SLIDE DOOR ECU LH] - POWER SLIDE DOOR SENSOR ASSEMBLY LH)
a.

Disconnect the T4 slide door motor unit LH (slide door ECU LH) connector.


b.

Disconnect the U6 power slide door sensor assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T4-4 (OSG) - U6-2 (OSG) Always Below 1 Ω
T4-1 (OS) - U6-1 (OS) Always Below 1 Ω
T4-4 (OSG) or U6-2 (OSG) - Body ground Always 10 kΩ or higher
T4-1 (OS) or U6-1 (OS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT LH (SLIDE DOOR ECU LH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
