DOOR / HATCH  POWER SLIDE DOOR SYSTEM  B222C  Rear Power Slide Door RH Touch Sensor Circuit


DESCRIPTION

This DTC is output when the slide door motor unit RH (slide door ECU RH) detects a malfunction in the power slide door sensor assembly RH.

DTC No. Detection Item DTC Detection Condition Trouble Area
B222C Rear Power Slide Door RH Touch Sensor Circuit Malfunction detected in power slide door sensor assembly RH
·

Power slide door sensor assembly RH

·

Slide door motor unit RH (slide door ECU RH)

·

Harness or connector

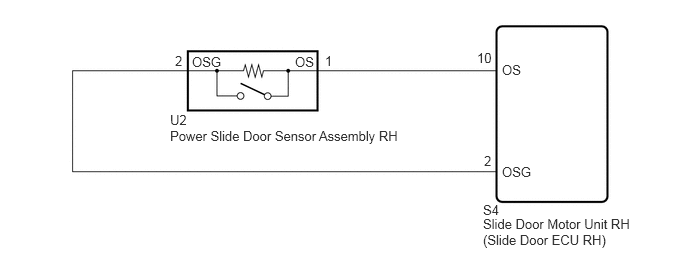

WIRING DIAGRAM

B366061E16
5.031,2.104 6.656,2.396 1.625,0.292 10 false S4 5.229,1.708 6.854,2 1.625,0.292 10 false OSG 2,0.563 3.625,0.854 1.625,0.292 10 false OSG 3.073,0.563 4.698,0.854 1.625,0.292 10 false OS 5.229,0.646 6.854,0.938 1.625,0.292 10 false OS 4.969,0.521 6.594,0.813 1.625,0.292 10 false 10 5.042,1.594 6.667,1.885 1.625,0.292 10 false 2 3.385,0.552 5.01,0.844 1.625,0.292 10 false 1 1.823,0.552 3.448,0.844 1.625,0.292 10 false 2 1.771,1.167 3.802,1.5 2.031,0.333 10 false U2 1.771,1.333 4.229,1.656 2.458,0.323 10 false Power Slide Door Sensor Assembly RH 5.031,2.25 6.594,2.583 1.563,0.333 10 false Slide Door Motor Unit RH (Slide Door ECU RH)

CAUTION / NOTICE / HINT

NOTICE:

If the replacement, removal and installation of the slide door motor unit or disconnection of the connectors of the slide door motor unit has been performed, initialize the power slide door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION


PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTC.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Clear DTCs
50002 161

b.

Check for DTC.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Trouble Codes
50001 161
OK:

DTC B222C is not output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.READ VALUE USING GTS
2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Right Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
PSD Touch Sensor Power slide door sensor assembly RH signal OFF, ON or Open OFF: Power slide door sensor assembly RH not pressed
ON: Power slide door sensor assembly RH pressed
Open: Power slide door sensor assembly RH open 		-
Body Electrical > Rear Right Door > Data List
Tester Display
PSD Touch Sensor
50003 161 5
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

3.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY RH
3.INSPECT POWER SLIDE DOOR SENSOR ASSEMBLY RH
a.

Remove the power slide door sensor assembly RH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL



b.

Inspect the power slide door sensor assembly RH.

except Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>INSPECTION

for Wagon:

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>INSPECTION



Result:
Result Proceed to
OK A
NG (except Wagon) B
NG (for Wagon) C



A

4.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] - POWER SLIDE DOOR SENSOR ASSEMBLY RH)

B

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY RH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (except Wagon)>REMOVAL


C

REPLACE POWER SLIDE DOOR SENSOR ASSEMBLY RH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR TOUCH SENSOR (for Wagon)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] - POWER SLIDE DOOR SENSOR ASSEMBLY RH)
a.

Disconnect the S4 slide door motor unit RH (slide door ECU RH) connector.


b.

Disconnect the U2 power slide door sensor assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
S4-10 (OS) - U2-1 (OS) Always Below 1 Ω
S4-2 (OSG) - U2-2 (OSG) Always Below 1 Ω
S4-10 (OS) or U2-1 (OS) - Body ground Always 10 kΩ or higher
S4-2 (OSG) or U2-2 (OSG) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
