The curtain shield squib RH circuit consists of the airbag sensor assembly and rear curtain shield airbag assembly RH (2nd step).
The circuit instructs the SRS to deploy when deployment conditions are met.
These DTCs are stored when a malfunction is detected in the curtain shield squib RH circuit.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate | Test Mode / Check Mode |
|---|---|---|---|---|---|
| B18F0 | Short in Curtain Shield Airbag (RH) Squib (Triple Stage - 3rd Step) Circuit | One of the following conditions is met:
·
The airbag sensor assembly detects a line short circuit signal 5 times in the curtain shield squib RH circuit during the primary check. ·
A rear curtain shield airbag assembly RH (2nd step) malfunction. ·
An airbag sensor assembly malfunction. |
·
No. 2 floor wire ·
Rear curtain shield airbag assembly RH (2nd step) ·
Airbag sensor assembly |
Comes on | Applicable |
| B18F1 | Open in Curtain Shield Airbag (RH) Squib (Triple Stage - 3rd Step) Circuit | One of the following conditions is met:
·
The airbag sensor assembly detects an open circuit signal in the curtain shield squib RH circuit for 2 seconds. ·
A rear curtain shield airbag assembly RH (2nd step) malfunction. ·
An airbag sensor assembly malfunction. |
·
No. 2 floor wire ·
Rear curtain shield airbag assembly RH (2nd step) ·
Airbag sensor assembly |
Comes on | Applicable |
| B18F2 | Short in Curtain Shield Airbag (RH) Squib (Triple Stage - 3rd Step) Circuit (to Ground) | One of the following conditions is met:
·
The airbag sensor assembly detects a short circuit to ground signal in the curtain shield squib RH circuit for 0.5 seconds. ·
A rear curtain shield airbag assembly RH (2nd step) malfunction. ·
An airbag sensor assembly malfunction. |
·
No. 2 floor wire ·
Rear curtain shield airbag assembly RH (2nd step) ·
Airbag sensor assembly |
Comes on | Applicable |
| B18F3 | Short in Curtain Shield Airbag (RH) Squib (Triple Stage - 3rd Step) Circuit (to +B) | One of the following conditions is met:
·
The airbag sensor assembly detects a short circuit to B+ signal in the curtain shield squib RH circuit for 0.5 seconds. ·
A rear curtain shield airbag assembly RH (2nd step) malfunction. ·
An airbag sensor assembly malfunction. |
·
No. 2 floor wire ·
Rear curtain shield airbag assembly RH (2nd step) ·
Airbag sensor assembly |
Comes on | Applicable |
After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
When disconnecting and reconnecting the battery
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
After replacing the airbag sensor assembly, refer to initialization.
To perform the simulation method, enter check mode (signal check) with the GTS (Click here Vehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>CHECK MODE PROCEDURE201906,999999,_58,_079257,_0396679,RM100000001IJ89,), and then wiggle each connector of the airbag system or drive the vehicle on various types of road (Click here General>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,).
| *1 | Rear Curtain Shield Airbag Assembly RH (2nd Step) |
| *2 | Airbag Sensor Assembly |
| *3 | No. 2 Floor Wire |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Check that the connectors are properly connected to the rear curtain shield airbag assembly RH (2nd step) and airbag sensor assembly.
The connectors are properly connected.
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
Disconnect the connectors from the rear curtain shield airbag assembly RH (2nd step) and airbag sensor assembly.
Check that the terminals of the connectors are not deformed or damaged.
The terminals are not deformed or damaged.
Check that the No. 2 floor wire connector (on the rear curtain shield airbag assembly RH (2nd step) side) is not loose, deformed or damaged.
The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.
Check that the short springs of the activation prevention mechanism of the No. 2 floor wire connector are not deformed or damaged.
The short springs are not deformed or damaged.
| Proceed to |
|---|
| OK |
| NG |
OK
NG

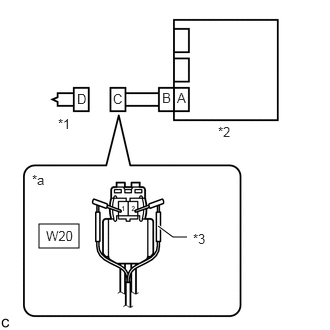

| *1 | Rear Curtain Shield Airbag Assembly RH (2nd step) |
| *2 | Airbag Sensor Assembly |
| *3 | SST |
| *a | Front view of wire harness connector
(to Rear Curtain Shield Airbag Assembly RH (2nd step)) |
Connect the connector to the airbag sensor assembly.
Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
Never connect the tester to the rear curtain shield airbag assembly RH (2nd step) for measurement, as this may lead to a serious injury due to airbag deployment.
Do not forcibly insert SST into the terminals of the connector when connecting SST.
Insert SST straight into the terminals of the connector.
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs stored in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTCs B18F0, B18F1, B18F2 and B18F3 are not output |
| DTC B18F0, B18F1, B18F2 or B18F3 is output |
Codes other than DTC B18F0, B18F1, B18F2 and B18F3 may be output at this time, but they are not related to this check.
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Disconnect SST from connector C.
DTCs B18F0, B18F1, B18F2 and B18F3 are not output
DTC B18F0, B18F1, B18F2 or B18F3 is output

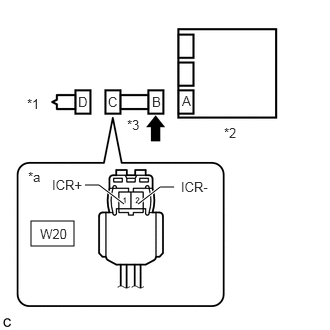

| *1 | Rear Curtain Shield Airbag Assembly RH (2nd Step) |
| *2 | Airbag Sensor Assembly |
| *3 | No. 2 Floor Wire |
| *a | Front view of wire harness connector
(to Rear Curtain Shield Airbag Assembly RH (2nd Step)) |
|
Release the activation prevention mechanism |
Disconnect the No. 2 floor wire from the airbag sensor assembly.
Check for a short to B+ in the circuit.
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| W20-1 (ICR+) - Body ground | Engine switch on (IG) | Below 1 V |
| W20-2 (ICR-) - Body ground | Engine switch on (IG) | Below 1 V |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Check for an open in the circuit.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| W20-1 (ICR+) - W20-2 (ICR-) | Always | Below 1 Ω |
Check for a short to ground in the circuit.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| W20-1 (ICR+) - Body ground | Always | 1 MΩ or higher |
| W20-2 (ICR-) - Body ground | Always | 1 MΩ or higher |
Check for a short in the circuit.
Release the activation prevention mechanism built into connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| W20-1 (ICR+) - W20-2 (ICR-) | Always | 1 MΩ or higher |
Restore the released activation prevention mechanism of connector B to the original condition.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| *1 | Rear Curtain Shield Airbag Assembly RH (2nd Step) |
| *2 | Airbag Sensor Assembly |
Connect the connectors to the rear curtain shield airbag assembly RH (2nd step) and airbag sensor assembly.
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs stored in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTCs B18F0, B18F1, B18F2 and B18F3 are not output |
| DTC B18F0, B18F1, B18F2 or B18F3 is output |
Codes other than DTC B18F0, B18F1, B18F2 and B18F3 may be output at this time, but they are not related to this check.
DTCs B18F0, B18F1, B18F2 and B18F3 are not output
DTC B18F0, B18F1, B18F2 or B18F3 is output
