SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type C)  B1688  Rear Floor No.2 Airbag Sensor LH Initialization Incomplete


DESCRIPTION

The side collision sensor LH circuit consists of the airbag sensor assembly, No. 4 side airbag sensor LH, No. 2 side airbag sensor LH and No. 3 side airbag sensor LH.

The No. 4 side airbag sensor LH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

DTC B1688 is stored when a malfunction is detected in the side collision sensor LH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B1688 Rear Floor No.2 Airbag Sensor LH Initialization Incomplete One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor LH for 2 seconds.

·

A No. 4 side airbag sensor LH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 rear door wire

·

Floor wire

·

No. 4 side airbag sensor LH

·

No. 2 side airbag sensor LH

·

No. 3 side airbag sensor LH

·

Airbag sensor assembly


Comes on Not applicable

WIRING DIAGRAM

C417471
5.542,4.75 6.24,5.656 0.698,0.906 10 false V1 5.542,4.917 7.125,5.125 1.583,0.208 10 false Airbag Sensor Assembly 5.667,0.5 6.5,1.198 0.833,0.698 10 false BBL+ 5.646,1.125 6.479,1.823 0.833,0.698 10 false BBL- 5.365,0.385 6.208,1.385 0.844,1 10 false 32 5.365,0.948 6.031,1.781 0.667,0.833 10 false 31 0.271,2.781 3.229,3.531 2.958,0.75 10 false No. 4 Side Airbag Sensor LH 0.26,2.615 0.833,3.167 0.573,0.552 10 false V24 1.74,0.385 2.771,1.188 1.031,0.802 10 false 4 1.729,0.979 2.76,1.781 1.031,0.802 10 false 3 1.719,1.531 2.75,2.333 1.031,0.802 10 false 1 1.708,2.156 2.74,2.958 1.031,0.802 10 false 2 1.188,0.521 2.135,1.021 0.948,0.5 10 false BBL+ 1.198,1.094 3.083,1.896 1.885,0.802 10 false BBL- 1.188,2.281 3.073,3.083 1.885,0.802 10 false BCL- 1.177,1.708 2.125,2.208 0.948,0.5 10 false BCL+ 4.177,1.708 5.125,2.208 0.948,0.5 10 false BCL+ 4.188,4.354 6.073,5.156 1.885,0.802 10 false BDL- 3.927,1.563 4.958,2.365 1.031,0.802 10 false 4 3.917,2.135 4.948,2.938 1.031,0.802 10 false 3 4.198,2.302 6.083,3.104 1.885,0.802 10 false BCL- 1.198,3.792 2.146,4.292 0.948,0.5 10 false BDL+ 4.167,3.802 5.115,4.302 0.948,0.5 10 false BDL+ 2.677,4.552 4.563,5.354 1.885,0.802 10 false BDL- 2.646,4 3.594,4.5 0.948,0.5 10 false BDL+ 1.219,4.344 3.104,5.146 1.885,0.802 10 false BDL- 3.625,4.792 5.656,5.719 2.031,0.927 10 false No. 2 Side Airbag Sensor LH 3.604,4.625 5.51,5.073 1.906,0.448 10 false V25 0.281,4.854 2.917,5.396 2.635,0.542 10 false No. 3 Side Airbag Sensor LH 0.281,4.677 0.781,5.073 0.5,0.396 10 false T7 2.677,3.802 3.135,4 0.458,0.198 10 false TV2 2.677,4.344 3.135,4.542 0.458,0.198 10 false TV2 3.958,4.219 4.99,5.021 1.031,0.802 10 false 2 2.76,3.594 3.792,4.396 1.031,0.802 10 false 2 1.667,4.229 2.698,5.031 1.031,0.802 10 false 1 1.677,3.677 2.708,4.479 1.031,0.802 10 false 2 3.938,3.667 4.969,4.469 1.031,0.802 10 false 1 2.76,4.146 3.792,4.948 1.031,0.802 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK PAST DTC
a.

Turn the engine switch on (IG), and wait for at least 60 seconds.


b.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188

Result:
Proceed to
DTC B1687 is not output
DTC B1687 is output



DTC B1687 is not output

2.CHECK CONNECTION OF CONNECTORS

DTC B1687 is output

GO TO DTC B1687

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>B1685


2.CHECK CONNECTION OF CONNECTORS
a.

Turn the engine switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the airbag sensor assembly and No. 4 side airbag sensor LH.


Result:
Proceed to
The connectors are properly connected
The connectors are not properly connected



The connectors are properly connected

3.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

3.CHECK CONNECTORS
a.

Disconnect the connectors from the airbag sensor assembly and No. 4 side airbag sensor LH.


b.
C208244C47
0.656,1.344 0.969,1.542 0.313,0.198 10 false *1 1.531,0.604 1.844,0.802 0.313,0.198 10 false *3 2.583,1.771 2.896,1.969 0.313,0.198 10 false *2
*1 No. 4 Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Floor Wire


Check that the connectors (on the airbag sensor assembly side and No. 4 side airbag sensor LH side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

4.CHECK FLOOR WIRE

The connectors are deformed or damaged

REPLACE FLOOR WIRE

4.CHECK FLOOR WIRE
a.

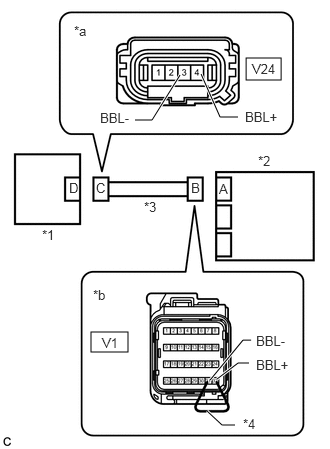

C418111C02
0.948,3.458 1.333,3.667 0.385,0.208 2.563,0.604 2.927,0.833 0.365,0.229 1.406,1.25 1.583,1.25 1.583,1.25 1.875,0.781 true 2.479,1.219 2.292,1.219 2.292,1.219 2.094,0.771 true 2.594,3.781 2.479,3.781 2.479,3.781 2.26,3.948 true 2.615,3.542 2.531,3.542 2.531,3.542 2.188,3.958 true 2.448,4.427 2.313,4.427 2.313,4.427 2.156,4.281 true 0.438,2.365 0.75,2.521 0.313,0.156 10 false *1 2.688,1.594 3,1.75 0.313,0.156 10 false *2 1.5,2.073 1.813,2.229 0.313,0.156 10 false *3 2.531,4.333 2.844,4.49 0.313,0.156 10 false *4 0.771,0.24 1.083,0.396 0.313,0.156 10 false *a 0.969,2.99 1.281,3.146 0.313,0.156 10 false *b 1.063,3.49 1.375,3.646 0.313,0.156 10 false V1 2.625,0.635 2.938,0.792 0.313,0.156 10 false V24 2.281,1.885 2.594,2.042 0.313,0.156 10 false A 1.99,1.875 2.302,2.031 0.313,0.156 10 false B 1,1.875 1.313,2.031 0.313,0.156 10 false C 0.719,1.875 1.031,2.031 0.313,0.156 10 false D 2.552,1.135 2.979,1.344 0.427,0.208 10 false BBL+ 1.042,1.146 1.469,1.354 0.427,0.208 10 false BBL- 2.667,3.719 3.094,3.927 0.427,0.208 10 false BBL+ 2.667,3.469 3.094,3.677 0.427,0.208 10 false BBL-
*1 No. 4 Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Floor Wire
*4 Service Wire
*a Front view of wire harness connector
(to No. 4 Side Airbag Sensor LH)
*b Front view of wire harness connector
(to Airbag Sensor Assembly)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
V24-4 (BBL+) - Body ground Engine switch on (IG) Below 1 V
V24-3 (BBL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 32 (BBL+) and 31 (BBL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V24-4 (BBL+) - V24-3 (BBL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V24-4 (BBL+) - V24-3 (BBL-) Always 1 MΩ or higher
V24-4 (BBL+) - Body ground Always 1 MΩ or higher
V24-3 (BBL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK NO. 4 SIDE AIRBAG SENSOR LH

NG

REPLACE FLOOR WIRE

5.CHECK NO. 4 SIDE AIRBAG SENSOR LH
a.
C370762C25
0.875,0.938 1.188,1.135 0.313,0.198 10 false *1 2.406,1.313 2.719,1.51 0.313,0.198 10 false *2
*1 No. 4 Side Airbag Sensor RH
*2 Airbag Sensor Assembly


Connect the connectors to the airbag sensor assembly.


b.

Interchange the No. 4 side airbag sensor LH with RH and connect the connectors to them.


c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the engine switch on (IG), and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the engine switch off.


g.

Turn the engine switch on (IG), and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B1688 is output
DTC B1683 is output
DTCs B1683 and B1688 are not output


HINT:

Codes other than DTC B1683 and B1688 may be output at this time, but they are not related to this check.



i.

Turn the engine switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Return the No. 4 side airbag sensor RH and LH to their original positions and connect the connectors to them.



DTC B1688 is output

6.CHECK CONNECTION OF CONNECTOR

DTC B1683 is output

REPLACE NO. 4 SIDE AIRBAG SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Pillar)>REMOVAL


DTCs B1683 and B1688 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


6.CHECK CONNECTION OF CONNECTOR
a.

Check that the connector is properly connected to the No. 2 side airbag sensor LH.


Result:
Proceed to
The connector is properly connected
The connector is not properly connected



The connector is properly connected

7.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

7.CHECK CONNECTOR
a.

Disconnect the connectors from the No. 2 side airbag sensor LH and No. 4 side airbag sensor LH.


b.
C413756C01
0.604,1.5 0.917,1.656 0.313,0.156 10 false *1 2.604,1.5 2.917,1.656 0.313,0.156 10 false *2 1.563,1.135 1.875,1.292 0.313,0.156 10 false *3
*1 No. 2 Side Airbag Sensor LH
*2 No. 4 Side Airbag Sensor LH
*3 Floor Wire


Check that the connector (on the No. 2 side airbag sensor LH side) is not damaged.


Result:
Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged



The connector is not deformed or damaged

8.CHECK FLOOR WIRE

The connector is deformed or damaged

REPLACE FLOOR WIRE

8.CHECK FLOOR WIRE
a.

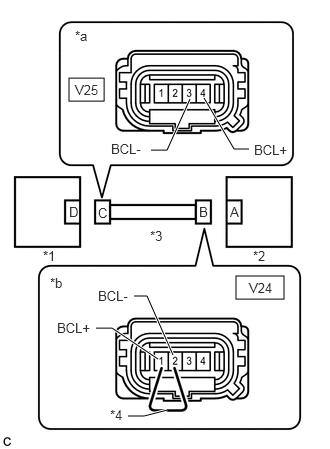

C418104C03
0.719,0.813 1.083,1.052 0.365,0.24 2.458,2.875 2.958,3.115 0.5,0.24 1.573,1.563 1.74,1.563 1.74,1.563 1.979,1.031 true 2.594,1.552 2.438,1.552 2.438,1.552 2.125,1.021 true 1,3.417 1.167,3.417 1.167,3.417 1.646,3.74 true 1.396,3.083 1.531,3.083 1.531,3.083 1.802,3.698 true 1.74,4.271 1.5,4.333 1.5,4.333 1.333,4.333 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.563,2.375 1.875,2.531 0.313,0.156 10 false *3 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.521,2.865 0.833,3.021 0.313,0.156 10 false *b 0.781,0.854 1.094,1.01 0.313,0.156 10 false V25 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.135 1.333,2.292 0.313,0.156 10 false C 0.719,2.125 1.031,2.281 0.313,0.156 10 false D 2.594,2.917 2.927,3.156 0.333,0.24 10 false V24 2.646,1.479 3.208,1.74 0.563,0.26 10 false BCL+ 1.156,1.469 1.719,1.729 0.563,0.26 10 false BCL- 1.021,3 1.583,3.26 0.563,0.26 10 false BCL- 0.594,3.333 1.156,3.594 0.563,0.26 10 false BCL+ 1.146,4.24 1.458,4.396 0.313,0.156 10 false *4
*1 No. 2 Side Airbag Sensor LH
*2 No. 4 Side Airbag Sensor LH
*3 Floor Wire
*4 Service Wire
*a Front view of wire harness connector
(to No. 2 Side Airbag Sensor LH)
*b Front view of wire harness connector
(to No. 4 Side Airbag Sensor LH)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
V25-4 (BCL+) - Body ground Engine switch on (IG) Below 1 V
V25-3 (BCL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 1 (BCL+) and 2 (BCL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V25-4 (BCL+) - V25-3 (BCL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V25-4 (BCL+) - V25-3 (BCL-) Always 1 MΩ or higher
V25-4 (BCL+) - Body ground Always 1 MΩ or higher
V25-3 (BCL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

9.CHECK CONNECTION OF CONNECTOR

NG

REPLACE FLOOR WIRE

9.CHECK CONNECTION OF CONNECTOR
a.

Check that the connector is properly connected to the No. 3 side airbag sensor LH.


Result:
Proceed to
The connector is properly connected
The connector is not properly connected



The connector is properly connected

10.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

10.CHECK CONNECTOR
a.

Disconnect the connectors from the No. 2 side airbag sensor LH and No. 3 side airbag sensor LH.


b.
C306644C25
0.604,1.5 0.917,1.656 0.313,0.156 10 false *1 2.604,1.5 2.917,1.656 0.313,0.156 10 false *2 1.417,1.25 1.729,1.406 0.313,0.156 10 false *3 1.854,1.25 2.167,1.406 0.313,0.156 10 false *4
*1 No. 3 Side Airbag Sensor LH
*2 No. 2 Side Airbag Sensor LH
*3 No. 2 Rear Door Wire
*4 Floor Wire


Check that the connector (on the No. 3 side airbag sensor LH side) is not damaged.


Result:
Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged



The connector is not deformed or damaged

11.CHECK NO. 3 SIDE AIRBAG SENSOR LH CIRCUIT

The connector is deformed or damaged

REPLACE NO. 2 REAR DOOR WIRE

11.CHECK NO. 3 SIDE AIRBAG SENSOR LH CIRCUIT
a.

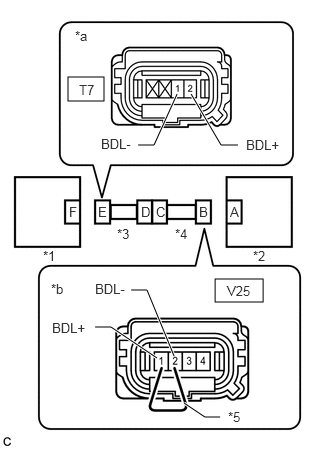

C418108C05
0.708,0.802 1.083,1.052 0.375,0.25 2.24,2.906 2.74,3.146 0.5,0.24 1.438,1.51 1.604,1.51 1.604,1.51 1.844,0.979 true 2.479,1.51 2.302,1.51 2.302,1.51 1.99,0.979 true 0.99,3.406 1.156,3.406 1.156,3.406 1.635,3.729 true 1.365,3.021 1.531,3.021 1.531,3.021 1.813,3.708 true 1.917,4.198 2.135,4.344 2.135,4.344 2.292,4.344 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.823,2.354 2.135,2.51 0.313,0.156 10 false *4 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.531,2.927 0.844,3.083 0.313,0.156 10 false *b 0.823,0.854 1.167,1.094 0.344,0.24 10 false T7 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.125 1.333,2.281 0.313,0.156 10 false E 0.719,2.125 1.031,2.281 0.313,0.156 10 false F 2.365,2.948 2.677,3.104 0.313,0.156 10 false V25 2.563,1.427 3.125,1.688 0.563,0.26 10 false BDL+ 1.052,1.417 1.615,1.677 0.563,0.26 10 false BDL- 0.99,2.927 1.552,3.188 0.563,0.26 10 false BDL- 0.542,3.333 1.104,3.594 0.563,0.26 10 false BDL+ 2.375,4.26 2.688,4.417 0.313,0.156 10 false *5 1.469,2.125 1.781,2.281 0.313,0.156 10 false D 1.625,2.125 1.938,2.281 0.313,0.156 10 false C 1.219,2.354 1.531,2.51 0.313,0.156 10 false *3
*1 No. 3 Side Airbag Sensor LH
*2 No. 2 Side Airbag Sensor LH
*3 No. 2 Rear Door Wire
*4 Floor Wire
*5 Service Wire
*a Front view of wire harness connector
(to No. 3 Side Airbag Sensor LH)
*b Front view of wire harness connector
(to No. 2 Side Airbag Sensor LH)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
T7-2 (BDL+) - Body ground Engine switch on (IG) Below 1 V
T7-1 (BDL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T7-2 (BDL+) - T7-1 (BDL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T7-2 (BDL+) - T7-1 (BDL-) Always 1 MΩ or higher
T7-2 (BDL+) - Body ground Always 1 MΩ or higher
T7-1 (BDL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

12.CHECK DTC

NG

13.CHECK CONNECTORS
12.CHECK DTC
a.
C238395C32
0.729,1.563 1,1.74 0.271,0.177 10 false *1 2.583,1.542 2.896,1.75 0.313,0.208 10 false *2
*1 No. 3 Side Airbag Sensor LH
*2 No. 2 Side Airbag Sensor LH


Connect the connectors to the No. 2 side airbag sensor LH and No. 3 side airbag sensor LH.


b.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


c.

Turn the engine switch on (IG), and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the engine switch off.


f.

Turn the engine switch on (IG), and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B1688 is output
DTC B1688 is not output


HINT:

Codes other than DTC B1688 may be output at this time, but they are not related to this check.




DTC B1688 is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


DTC B1688 is not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


13.CHECK CONNECTORS
a.

Disconnect the connectors from the floor wire and No. 2 rear door wire.


b.
B510595C08
0.458,1.479 0.771,1.635 0.313,0.156 10 false *1 2.823,1.5 3.135,1.656 0.313,0.156 10 false *2 1.25,1.229 1.563,1.385 0.313,0.156 10 false *3 2.021,1.24 2.333,1.396 0.313,0.156 10 false *4
*1 No. 3 Side Airbag Sensor LH
*2 No. 2 Side Airbag Sensor LH
*3 No. 2 Rear Door Wire
*4 Floor Wire


Check that the connectors (on the floor wire side and No. 2 rear door wire side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

14.CHECK FLOOR WIRE

The connectors are deformed or damaged

REPLACE FLOOR WIRE OR NO. 2 REAR DOOR WIRE

14.CHECK FLOOR WIRE
a.
C418110C03

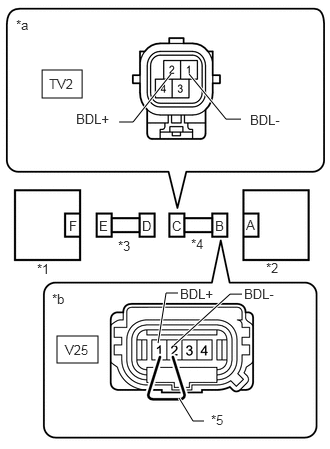

0.594,3.5 1.021,3.781 0.427,0.281 0.438,0.729 0.854,1.021 0.417,0.292 1.854,3.052 1.729,3.052 1.729,3.052 1.646,3.573 true 2.521,3.063 2.396,3.063 2.396,3.063 1.813,3.594 true 2.125,4.385 2.01,4.385 2.01,4.385 1.865,4.146 true 2.51,1.24 2.354,1.24 2.354,1.24 1.969,0.771 true 1.24,1.271 1.385,1.271 1.385,1.271 1.781,0.771 true 0.167,0.177 0.479,0.385 0.313,0.208 10 false *a 0.51,0.792 0.823,1 0.313,0.208 10 false TV2 2.563,2.26 2.781,2.479 0.219,0.219 10 false A 2.24,2.271 2.458,2.49 0.219,0.219 10 false B 1.792,2.271 2.01,2.49 0.219,0.219 10 false C 1.479,2.271 1.698,2.49 0.219,0.219 10 false D 1.031,2.271 1.25,2.49 0.219,0.219 10 false E 0.719,2.271 0.938,2.49 0.219,0.219 10 false F 0.385,2.719 0.698,2.927 0.313,0.208 10 false *1 1.229,2.479 1.542,2.688 0.313,0.208 10 false *3 2.771,2.708 3.083,2.917 0.313,0.208 10 false *2 1.99,2.458 2.302,2.667 0.313,0.208 10 false *4 0.542,3.031 0.854,3.24 0.313,0.208 10 false *b 0.677,3.563 0.99,3.771 0.313,0.208 10 false V25 2.604,1.167 3.021,1.479 0.417,0.313 10 false BDL- 0.792,1.156 1.302,1.365 0.51,0.208 10 false BDL+ 1.875,2.979 2.385,3.188 0.51,0.208 10 false BDL+ 2.542,2.979 3.052,3.188 0.51,0.208 10 false BDL- 2.198,4.292 2.51,4.5 0.313,0.208 10 false *5
*1 No. 3 Side Airbag Sensor LH
*2 No. 2 Side Airbag Sensor LH
*3 No. 2 Rear Door Wire
*4 Floor Wire
*5 Service Wire
*a Front view of wire harness connector
(to No. 2 Rear Door Wire)
*b Front view of wire harness connector
(to No. 2 Side Airbag Sensor LH)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
TV2-2 (BDL+) - Body ground Engine switch on (IG) Below 1 V
TV2-1 (BDL-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
TV2-2 (BDL+) - TV2-1 (BDL-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
TV2-2 (BDL+) - TV2-1 (BDL-) Always 1 MΩ or higher
TV2-2 (BDL+) - Body ground Always 1 MΩ or higher
TV2-1 (BDL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 REAR DOOR WIRE

NG

REPLACE FLOOR WIRE
