The front seat cushion spring assembly (seat position airbag sensor) circuit consists of the airbag sensor assembly and front seat cushion spring assembly (seat position airbag sensor).
DTC B1653 is stored when a malfunction is detected in the front seat cushion spring assembly (seat position airbag sensor) circuit.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate | Test Mode / Check Mode |
|---|---|---|---|---|---|
| B1653 | Driver Side Seat Position Sensor | One of the following conditions is met:
·
The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the front seat cushion spring assembly (seat position airbag sensor) circuit for 2 seconds. ·
A front seat cushion spring assembly RH (seat position airbag sensor) malfunction. ·
A front seat cushion spring assembly LH (seat position airbag sensor) malfunction. ·
An airbag sensor assembly malfunction. |
·
No. 2 floor wire*1 ·
Front seat wire RH*1 ·
Front seat cushion spring assembly RH (seat position airbag sensor)*1 ·
Floor wire*2 ·
Front seat wire LH*2 ·
Front seat cushion spring assembly LH (seat position airbag sensor)*2 ·
Airbag sensor assembly |
Comes on | Not applicable |
*1: for RHD
*2: for LHD
After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
When disconnecting and reconnecting the battery
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
After replacing the airbag sensor assembly, refer to initialization.
Check vehicle condition.
| Proceed to |
|---|
| for RHD |
| for LHD |
for RHD
for LHD
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Check that the connectors are properly connected to the airbag sensor assembly and front seat cushion spring assembly RH (seat position airbag sensor).
| Proceed to |
|---|
| The connectors are properly connected |
| The connectors are not properly connected |
The connectors are properly connected
The connectors are not properly connected
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire RH |
| *4 | No. 2 Floor Wire |
Disconnect the connectors from the airbag sensor assembly and front seat cushion spring assembly RH (seat position airbag sensor).
Check that the connectors (on the airbag sensor assembly side and front seat cushion spring assembly RH (seat position airbag sensor) side) are not damaged.
| Proceed to |
|---|
| The connectors are not deformed or damaged |
| The connectors are deformed or damaged |
The connectors are not deformed or damaged
The connectors are deformed or damaged
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire RH |
| *4 | No. 2 Floor Wire |
| *5 | Service Wire |
| *a | Front view of wire harness connector
(to Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor)) |
| *b | Front view of wire harness connector
(to Airbag Sensor Assembly) |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| m2-1 - Body ground | Engine switch on (IG) | Below 1 V |
| m2-2 - Body ground | Engine switch on (IG) | Below 1 V |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Using a service wire, connect terminals 32 (RSP+) and 31 (RSP-) of connector B.
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| m2-1 - m2-2 | Always | Below 1 Ω |
Disconnect the service wire from connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| m2-1 - m2-2 | Always | 1 MΩ or higher |
| m2-1 - Body ground | Always | 1 MΩ or higher |
| m2-2 - Body ground | Always | 1 MΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
Connect the connectors to the airbag sensor assembly and front seat cushion spring assembly RH (seat position airbag sensor).
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTC B1653 is not output |
| DTC B1653 is output |
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
DTC B1653 is not output
DTC B1653 is output
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Replace the front seat cushion spring assembly RH (seat position airbag sensor).
for Separate Seat Type:
for Power Seat:
Perform the inspection using parts from a normal vehicle if possible.
| Proceed to |
|---|
| NEXT |
NEXT
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTC B1653 is not output |
| DTC B1653 is output |
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
DTC B1653 is not output
DTC B1653 is output
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire RH |
| *4 | No. 2 Floor Wire |
Disconnect the connectors from the front seat wire RH and No. 2 floor wire.
Check that the connectors (on the front seat wire RH side and No. 2 floor wire side) are not damaged.
| Proceed to |
|---|
| The connectors are not deformed or damaged |
| The connectors are deformed or damaged |
The connectors are not deformed or damaged
The connectors are deformed or damaged
| *1 | Front Seat Cushion Spring Assembly RH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire RH |
| *4 | No. 2 Floor Wire |
| *5 | Service Wire |

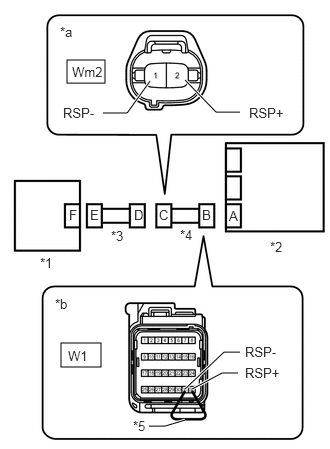

| *a | Front view of wire harness connector
(to Front Seat Wire RH) |
| *b | Front view of wire harness connector
(to Airbag Sensor Assembly) |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| Wm2-2 (RSP+) - Body ground | Engine switch on (IG) | Below 1 V |
| Wm2-1 (RSP-) - Body ground | Engine switch on (IG) | Below 1 V |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Using a service wire, connect terminals 32 (RSP+) and 31 (RSP-) of connector B.
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Wm2-2 (RSP+) - Wm2-1 (RSP-) | Always | Below 1 Ω |
Disconnect the service wire from connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Wm2-2 (RSP+) - Wm2-1 (RSP-) | Always | 1 MΩ or higher |
| Wm2-2 (RSP+) - Body ground | Always | 1 MΩ or higher |
| Wm2-1 (RSP-) - Body ground | Always | 1 MΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Check that the connectors are properly connected to the airbag sensor assembly and front seat cushion spring assembly LH (seat position airbag sensor).
| Proceed to |
|---|
| The connectors are properly connected |
| The connectors are not properly connected |
The connectors are properly connected
The connectors are not properly connected
| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire LH |
| *4 | Floor Wire |
Disconnect the connectors from the airbag sensor assembly and front seat cushion spring assembly LH (seat position airbag sensor).
Check that the connectors (on the airbag sensor assembly side and front seat cushion spring assembly LH (seat position airbag sensor) side) are not damaged.
| Proceed to |
|---|
| The connectors are not deformed or damaged |
| The connectors are deformed or damaged |
The connectors are not deformed or damaged
The connectors are deformed or damaged

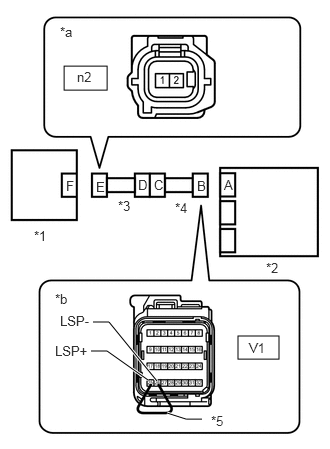

| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire LH |
| *4 | Floor Wire |
| *5 | Service Wire |

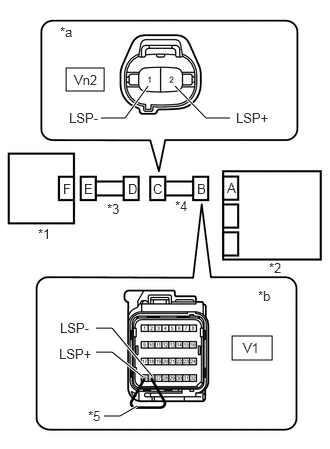

| *a | Front view of wire harness connector
(to Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor)) |
| *b | Front view of wire harness connector
(to Airbag Sensor Assembly) |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| n2-1 - Body ground | Engine switch on (IG) | Below 1 V |
| n2-2 - Body ground | Engine switch on (IG) | Below 1 V |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Using a service wire, connect terminals 25 (LSP+) and 26 (LSP-) of connector B.
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| n2-1 - n2-2 | Always | Below 1 Ω |
Disconnect the service wire from connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| n2-1 - n2-2 | Always | 1 MΩ or higher |
| n2-1 - Body ground | Always | 1 MΩ or higher |
| n2-2 - Body ground | Always | 1 MΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
Connect the connectors to the airbag sensor assembly and front seat cushion spring assembly LH (seat position airbag sensor).
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTC B1653 is not output |
| DTC B1653 is output |
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
DTC B1653 is not output
DTC B1653 is output
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Replace the front seat cushion spring assembly LH (seat position airbag sensor).
for Separate Seat Type:
for Power Seat:
Perform the inspection using parts from a normal vehicle if possible.
| Proceed to |
|---|
| NEXT |
NEXT
| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs in memory.
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs.
| Proceed to |
|---|
| DTC B1653 is not output |
| DTC B1653 is output |
Codes other than DTC B1653 may be output at this time, but they are not related to this check.
DTC B1653 is not output
DTC B1653 is output
| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire LH |
| *4 | Floor Wire |
Disconnect the connectors from the front seat wire LH and floor wire.
Check that the connectors (on the front seat wire LH side and floor wire side) are not damaged.
| Proceed to |
|---|
| The connectors are not deformed or damaged |
| The connectors are deformed or damaged |
The connectors are not deformed or damaged
The connectors are deformed or damaged
| *1 | Front Seat Cushion Spring Assembly LH (Seat Position Airbag Sensor) |
| *2 | Airbag Sensor Assembly |
| *3 | Front Seat Wire LH |
| *4 | Floor Wire |
| *5 | Service Wire |
| *a | Front view of wire harness connector
(to Front Seat Wire LH) |
| *b | Front view of wire harness connector
(to Airbag Sensor Assembly) |
Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| Vn2-2 (LSP+) - Body ground | Engine switch on (IG) | Below 1 V |
| Vn2-1 (LSP-) - Body ground | Engine switch on (IG) | Below 1 V |
Turn the engine switch off.
Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
Using a service wire, connect terminals 25 (LSP+) and 26 (LSP-) of connector B.
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Vn2-2 (LSP+) - Vn2-1 (LSP-) | Always | Below 1 Ω |
Disconnect the service wire from connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| Vn2-2 (LSP+) - Vn2-1 (LSP-) | Always | 1 MΩ or higher |
| Vn2-2 (LSP+) - Body ground | Always | 1 MΩ or higher |
| Vn2-1 (LSP-) - Body ground | Always | 1 MΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
