RM35X0E _58 Vehicle Interior _078601 SEAT _0381328 FRONT SEAT ASSEMBLY(for Separate Seat Type) A

SEAT  FRONT SEAT ASSEMBLY(for Separate Seat Type)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 71848R 1.REMOVE FRONT SEAT NO. 1 ADJUSTER COVER CAP LH

a.

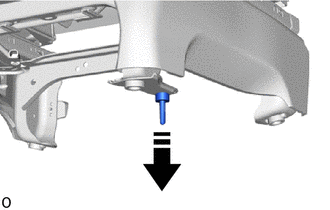

B532575C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the front seat No. 1 adjuster cover cap LH as shown in the illustration.


Hide 71848S 2.REMOVE FRONT SEAT NO. 2 ADJUSTER COVER CAP LH

a.

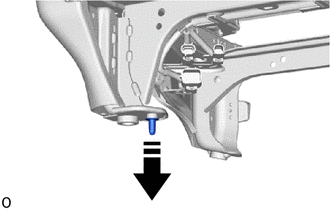

B532574C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the front seat No. 2 adjuster cover cap LH as shown in the illustration.


Hide 71139P 3.REMOVE FRONT SEAT OUTER LEG COVER LH

a.
B532567

Remove the clip.


b.
B532568

Remove the screw.


c.

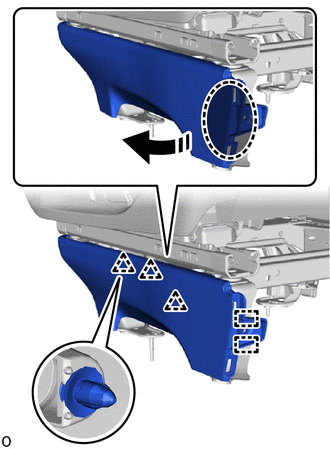

B532569C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the clip and guide.


d.

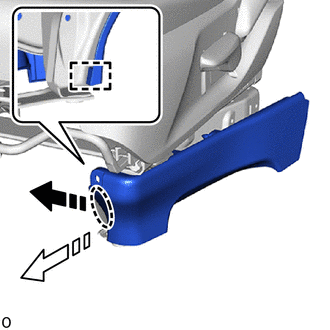

B554779C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Place your hand at the position shown in the illustration and pull in the removal direction (1).


e.

Pull in the removal direction (2) shown in the illustration, detach the guide and remove the front seat outer leg cover LH.


Hide 71139Q 4.REMOVE FRONT SEAT INNER LEG COVER LH

HINT:

Use the same procedure described for the outer side.


Hide 71140A 5.REMOVE FRONT SEAT LEG ASSEMBLY LH

a.

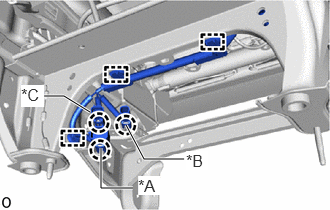

B532577C07
1.313,1.302 1.5,1.656 1.5,1.656 1.917,1.656 true 0.417,1 0.667,1 0.667,1 0.938,1.167 true 1.385,1.958 1.052,1.958 1.052,1.958 1.052,1.542 true 1.938,1.573 2.167,1.771 0.229,0.198 12 true *B 0.219,0.885 0.458,1.115 0.24,0.229 12 true *C 1.438,1.833 1.667,2.031 0.229,0.198 12 true *A
*A w/ Seat Belt Warning System
*B w/ Front Seat Side Airbag
*C w/ Seat Position Airbag Sensor


for Driver Side:

i.

Detach the claw and clamp.



b.

for Front Passenger Side:

i.
B537005C01
1.417,1.417 1.833,1.417 1.833,1.417 1.958,1.25 true 1.667,1.75 2,1.75 2,1.75 2.167,1.417 true 1.427,1.625 1.656,1.823 0.229,0.198 12 true *A 1.219,1.281 1.448,1.469 0.229,0.188 12 true *B
*A w/ Seat Belt Warning System
*B w/ Front Seat Side Airbag


Detach the claw and clamp.



c.
B540030

Remove the 3 clip.


d.
B532578

Remove the 5 nuts and front seat leg assembly LH.


Hide 72495A 6.REMOVE FRONT SEAT VERTICAL ADJUSTER HANDLE LH (for Driver Side)

a.

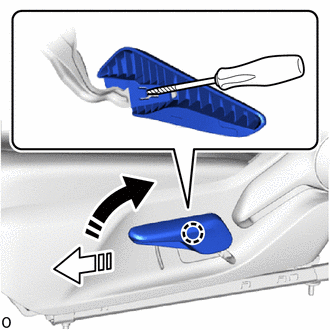

B546273C02
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the front seat vertical adjuster handle LH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72551L 7.REMOVE RECLINING HINGE COVER LH

a.

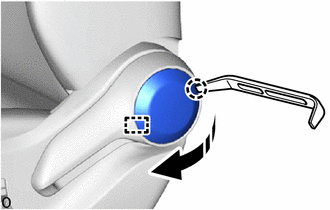

B546274C02
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide and remove the reclining hinge cover LH as shown in the illustration.


Hide 72526H 8.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

a.
B546276

Detach the guide and remove the reclining adjuster release handle LH.


Hide 71849J 9.REMOVE FRONT SEAT NO. 3 ADJUSTER COVER CAP LH (for Driver Side)

a.

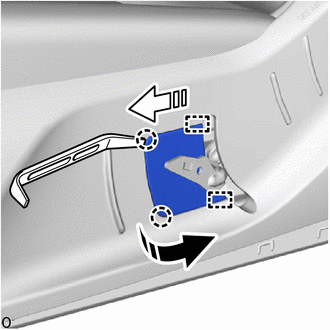

B546270C02
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Using moulding remover A, detach the claw in the removal direction (1) shown in the illustration.


b.

Pull in the removal direction (2) shown in the illustration, detach the guide and remove the front seat No. 3 adjuster cover cap LH.


Hide 71812T 10.REMOVE FRONT SEAT CUSHION SHIELD LH (for Driver Side)

a.

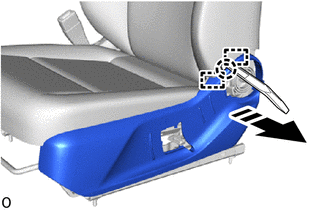

B546271C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


b.

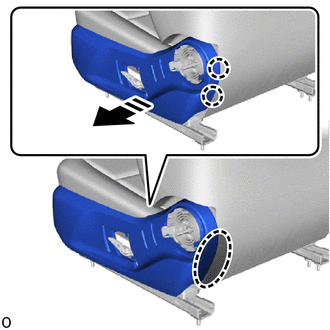

B546278C02
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the claw.


c.

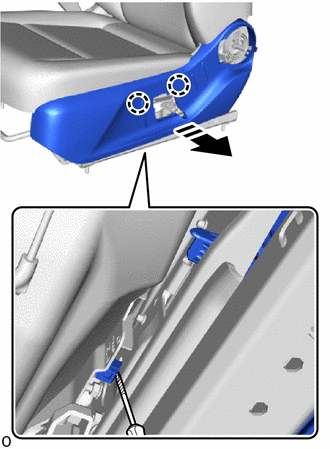

B546280C02
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

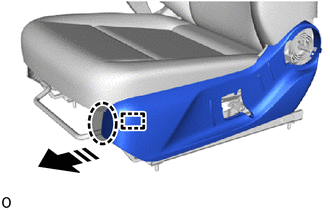

B546281C02
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the guide and remove the front seat cushion shield LH.


e.

w/ Lumbar Support:

i.
B650811

Detach the clamp and disconnect the connector.



Hide 71862K 11.REMOVE FRONT SEAT INNER CUSHION SHIELD LH (for Driver Side)

a.

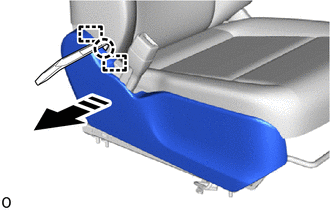

B532590C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


b.

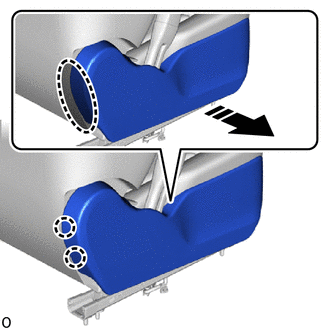

B532591C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the claw.


c.

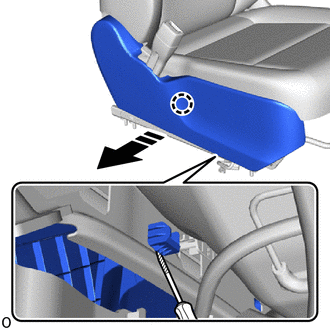

B532592C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

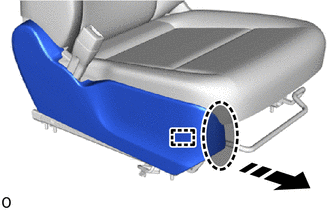

B532593C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the guide and remove the front seat inner cushion shield LH.


Hide 71861K 12.REMOVE FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

a.

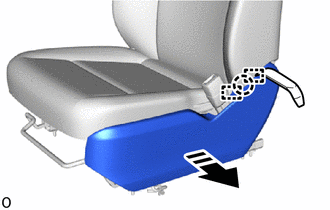

B532637C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


b.

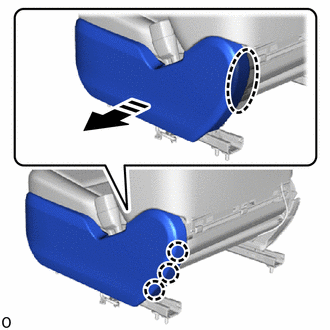

B532639C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the claw.


c.

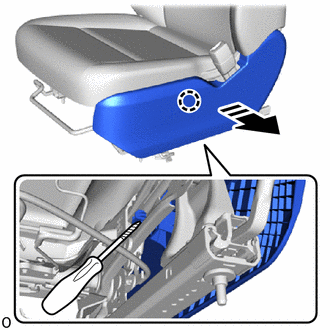

B532641C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

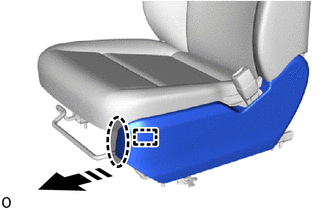

B532643C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the guide and remove the front seat inner cushion shield RH.


Hide 71811T 13.REMOVE FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)

a.

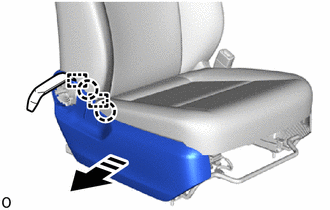

B551293C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and guide as shown in the illustration.


b.

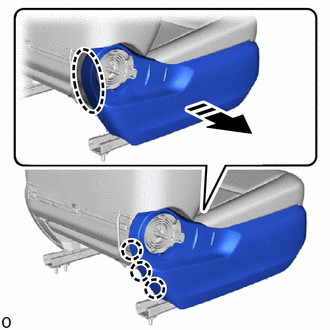

B551294C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the claw.


c.

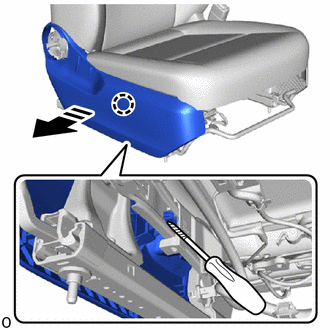

B551295C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



d.

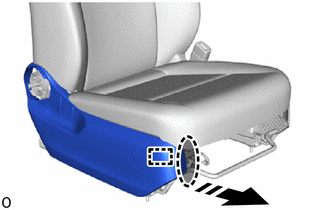

B551296C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position and pull in the removal direction shown in the illustration and detach the guide and remove the front seat cushion shield RH.


Hide 84920C 14.REMOVE FRONT POWER SEAT SWITCH ASSEMBLY RH (w/ Lumbar Support)

Click hereVehicle Interior>SEAT>LUMBAR SWITCH>REMOVAL

Hide 73240 15.REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

a.

w/o Sub Wire Harness:

i.

Detach the clamp.

B541587



b.

w/ Sub Wire Harness:

i.

Disconnect the connector.

B541588


ii.

Detach the claw and clamp.



c.
B541250

Remove the nut and front seat inner belt assembly LH.


d.

Remove the front seat belt anchor plate.


Hide 73230 16.REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

a.

w/ Seat Belt Warning System, w/o Front Seat Side Airbag:

i.

Disconnect the connector.

B541585


ii.

Detach the clamp.



b.

w/ Seat Belt Warning System, w/ Front Seat Side Airbag:

i.

Disconnect the 2 connectors.

B541586


ii.

Detach the clamp and claw.



c.
B539076

Remove the nut and front seat inner belt assembly RH.


d.

Remove the front seat belt anchor plate.


Hide 71705G 17.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

a.
B546284

Detach the band.


b.
B547559C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


c.

Detach the hook and remove the front seatback board sub-assembly LH as shown in the illustration.


Hide 18.REMOVE FRONT SEATBACK ASSEMBLY

a.
B532596

w/o Front Seatback Board:

i.

Detach the band.



b.
B541251

Detach the hook.


c.
B532597

w/ Front Seat Side Airbag:

i.

Disconnect the connector.


ii.

Detach the clamp and claw.



d.

w/ Lumbar Support:

i.
B650813

Detach the clamp and disconnect the connector.



e.
B541252

Remove the 4 bolts.


f.
B541253C01
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver, detach the guide and remove the front seatback assembly.

HINT:

Tape the screwdriver tip before use.



Hide 19.REMOVE FRONT SEATBACK COVER WITH PAD

a.

w/ Front Seatback Board:

i.
B547558

Pull out the 2 fasteners.



b.
B546267

Detach the hook.


c.

w/ Front seat side airbag.

i.

Front seat side airbag harness through the hole of the seatback cover.



d.
B532602

Open the 2 fasteners.


e.

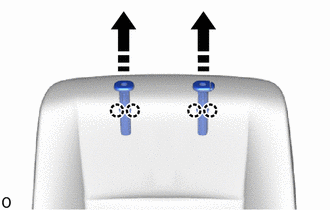

B532603C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 front seat headrest supports as shown in the illustration.


f.

Remove the front seatback cover with pad.


Hide 71074A 20.REMOVE FRONT SEATBACK COVER SUB-ASSEMBLY LH

a.

w/ Front Seat Side Airbag:

i.

Using a thin-bladed screwdriver, detach the hook and remove the front seatback cover sub-assembly LH from the front seatback pad LH as shown in the illustration.

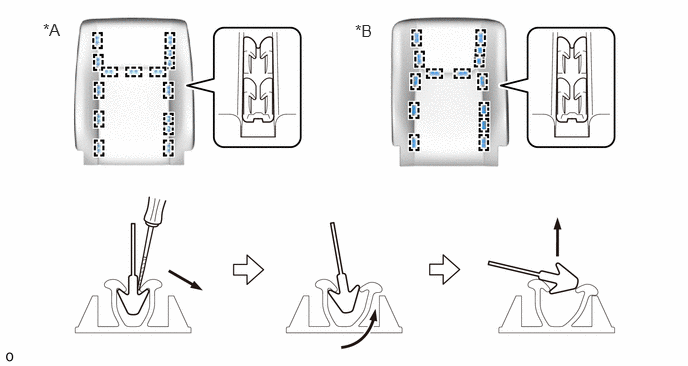

B546265C01
0.448,0.208 0.823,0.448 0.375,0.24 12 false *A 3.698,0.219 4.073,0.458 0.375,0.24 12 false *B
*A except Wagon *B for Wagon
V100155

Protective Tape - -


NOTICE:

Be careful not to damage the front seatback cover sub-assembly LH.


HINT:

Tape the thin-bladed screwdriver tip before use.




b.

w/o Front Seat Side Airbag:

i.

Using a thin-bladed screwdriver, detach the hook and remove the front seatback cover sub-assembly LH from the front seatback pad LH as shown in the illustration.

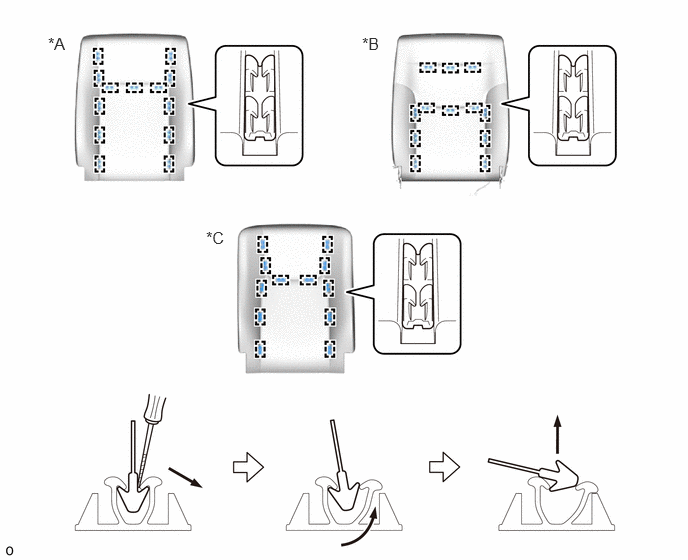

B546263C01
0.5,0.354 0.875,0.594 0.375,0.24 12 false *A 3.771,0.354 4.146,0.594 0.375,0.24 12 false *B 2.146,2.375 2.521,2.615 0.375,0.24 12 false *C
*A for Type A *B for Type B
*C for Wagon - -
V100155

Protective Tape - -


NOTICE:

Be careful not to damage the front seatback cover sub-assembly LH.


HINT:

Tape the thin-bladed screwdriver tip before use.




Hide 8219AA 22.REMOVE FRONT SEAT NO. 3 WIRE RH (w/ Lumbar Support)

a.
B650814

Detach the clamp and disconnect the connector to remove the front seat No. 3 wire RH.


Hide 71053A 23.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY LH

a.

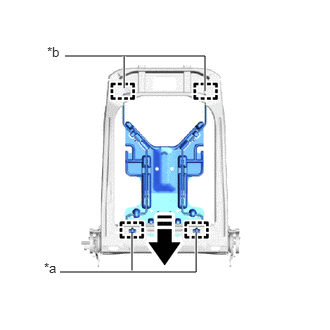

B541254C01
0.677,0.583 2.135,0.583 2.135,0.583 2.135,0.948 true 1.292,0.917 1.292,0.583 true 1.375,2.844 1.375,2.427 true 0.625,2.833 2.042,2.833 2.042,2.833 2.042,2.417 true 0.458,2.708 0.771,2.865 0.313,0.156 10 false *a 0.49,0.458 0.688,0.635 0.198,0.177 10 false *b
*a Clamp
*b Guide
V113147

Remove in this Direction


Detach the clamp.


b.

Detach the guide and remove the front seatback spring sub-assembly LH as shown in the illustration.


Hide 72750G 24.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (w/ Lumbar Support)

HINT:

Use the same procedure described for the front seatback spring sub-assembly LH.


Hide 79977N 25.REMOVE SEATBACK FELT (w/o Seatback Board, w/ Lumbar Support)

a.
B511426C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the seatback felt as shown in the illustration.


Hide 71587L 26.REMOVE FRONT SEATBACK EDGE PROTECTOR

a.
B517416C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the 2 front seatback edge protectors.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71759F 27.REMOVE FRONT SEATBACK HOOK

a.

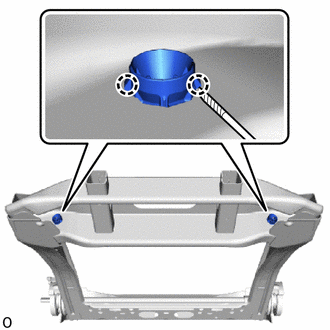

B541255C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the 2 front seatback hooks.

NOTICE:

Do not reuse the removed front seatback hook.


HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 28.REMOVE SCREW GROMMET (w/ Seatback Board)

a.
B553719

Remove the 2 screw grommets.


Hide 29.REMOVE FRONT SEAT CUSHION COVER WITH PAD

a.

w/ Occupant Detection Sensor:

i.
B532653C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.




b.
B542061

Detach the hook.


c.

Detach the hook and remove the front seat cushion cover with pad.

B532660


Hide 71072 30.REMOVE FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

a.
B532661C01
0.76,1.74 1.656,1.563 true 0.552,1.635 0.698,1.813 0.146,0.177 10 false *a
*a Band
V113147

Remove in this Direction

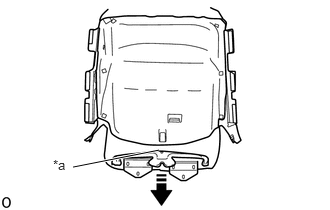

Detach the band as shown in the illustration.


b.

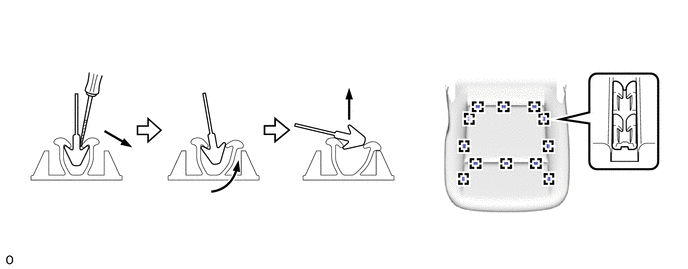

Using a thin-bladed screwdriver, detach the hook and remove the front seat cushion cover sub-assembly LH from the front seat cushion pad LH as shown in the illustration.

B532663C01
0,0 0,0 false
V100155

Protective Tape - -


NOTICE:

Be careful not to damage the front seat cushion cover sub-assembly LH.


HINT:

Tape the thin-bladed screwdriver tip before use.

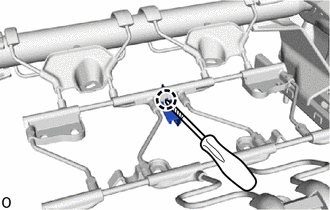

Hide 82F66 31.REMOVE CONNECTOR HOLDER (w/ Occupant Detection Sensor)

a.
B535081C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the connector holder.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71H76B 32.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.
B539367C01
0,0 0,0 false
V113147

Remove in this Direction

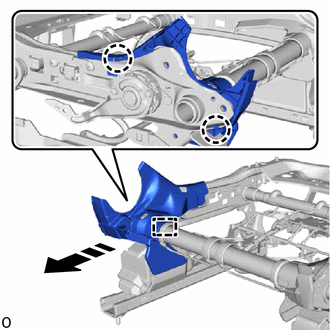

Detach the claw and hook and remove the LH seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71H75C 33.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B539368C01
0,0 0,0 false
V113147

Remove in this Direction

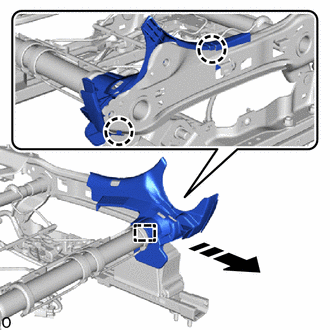

Detach the claw and hook and remove the LH seat reclining adjuster inside cover RH as shown in the illustration.


Hide 71874V 34.REMOVE FRONT SEAT OUTER CUSHION SHIELD (for Driver Side)

a.
B539369C01
0.479,0.354 0.865,0.531 true 0.25,1.625 0.635,1.823 true 0.292,0.198 0.448,0.375 0.156,0.177 10 false *a 0.083,1.469 0.25,1.656 0.167,0.188 10 false *b
*a Hook
*b Guide
V113147

Remove in this Direction
V100155

Protective Tape

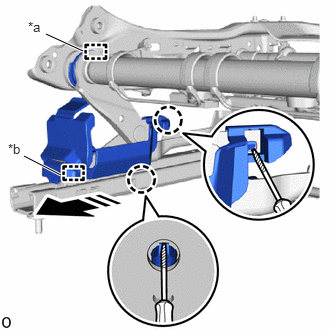

Detach the hook.


b.

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the front seat outer cushion shield as shown in the illustration.

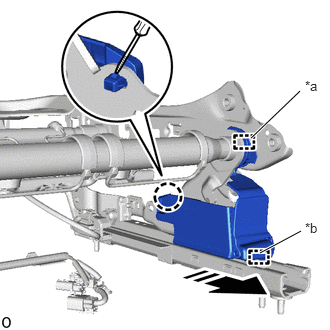

Hide 71874W 35.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.
B539370C01
2.615,1.438 3.125,0.948 true 2.708,2.635 3.135,2.406 true 3.177,0.813 3.375,0.969 0.198,0.156 10 false *a 3.177,2.292 3.385,2.469 0.208,0.177 10 false *b
*a Hook
*b Guide
V113147

Remove in this Direction
V100155

Protective Tape


Detach the hook.


b.

Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



c.

Detach the guide and remove the front seat inner cushion shield as shown in the illustration.


Hide 7181BA 36.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

HINT:

Remove the front seat wire together with the front seat cushion wire harness holder LH.


a.
B532611

w/ Seat Position Airbag Sensor:

i.

Disconnect the connector.


ii.

Detach the clamp.



b.

w/ Lumbar Support:

i.
B650816

Detach the clamp.



c.
B532612

Remove the 2 screws.


d.

Detach the guide and remove the front seat cushion wire harness holder LH.


Hide 8219A 37.REMOVE FRONT SEAT NO. 2 WIRE RH (for Driver Side, w/ Seat Position Airbag Sensor)

a.
B532613

Disconnect the connector.


b.

Detach the clamp and claw and remove the front seat No. 2 wire RH.


Hide 82191A 38.REMOVE FRONT SEAT NO. 1 WIRE RH (w/ Lumbar Support)

a.
B650817

Disconnect the connector and detach the claw to remove the front seat No. 1 wire RH.


Hide 82192 39.REMOVE FRONT SEAT WIRE LH (for Driver Side, w/ Sub Wire Harness)

a.
B532614

Detach the clamp and remove the front seat wire LH.


Hide 82191 40.REMOVE FRONT SEAT WIRE RH (for Front Passenger Side, w/ Front Seat Side Airbag)

a.
B551305

Detach the clamp and remove the front seat wire RH.


Hide 72123H 41.REMOVE INNER SEAT TRACK LOCK PLATE LH

HINT:

Use the same procedure for the other side.


a.

Operate the seat track adjusting handle LH and move the front seat cushion spring assembly LH to the rearmost position.


b.
B705448C01
0,0 0,0 false
V113147

Remove in this Direction

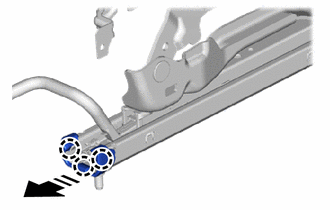

Detach the claw and remove the innre seat track lock plate LH.


Hide 72211G 42.REMOVE SEAT TRACK ADJUSTING HANDLE LH

a.

Operate the seat track adjusting handle LH and move the front seat cushion spring assembly LH to the frontmost position.


b.
B548295C01
0,0 0,0 false
V113147

Remove in this Direction


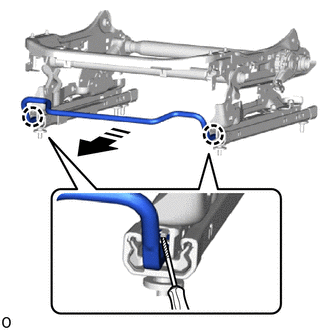

Using a thin-bladed screwdriver, detach the claw and remove the seat track adjusting handle LH as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

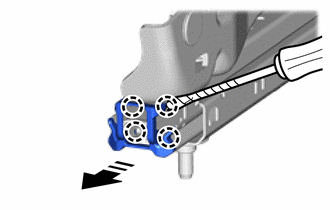

Hide 72265N 43.REMOVE UPPER SEAT TRACK RAIL COVER LH

HINT:

Use the same procedure for the other side.


a.
B705450C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the upper seat track rail cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72137V 44.REMOVE FRONT SEAT TRACK COVER LH

HINT:

Use the same procedure for the other side.


a.
B705451C01
0,0 0,0 false
V113147

Remove in this Direction

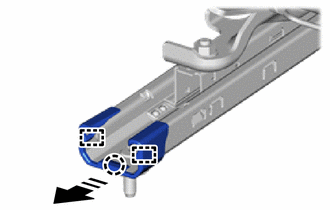

Detach the claw and guide to remove the front seat track cover LH.
