SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type C)  B1633  Curtain Shield Airbag Sensor Initialization Error (RH)


DESCRIPTION

The side collision sensor RH circuit consists of the airbag sensor assembly, No. 4 side airbag sensor RH, No. 2 side airbag sensor RH and No. 3 side airbag sensor RH.

The No. 2 side airbag sensor RH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

DTC B1633 are stored when a malfunction is detected in the circuit for the side collision sensor RH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B1633 Curtain Shield Airbag Sensor Initialization Error (RH) One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor RH for 2 seconds.

·

A No. 2 side airbag sensor RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 floor wire

·

No. 4 side airbag sensor RH

·

No. 2 side airbag sensor RH

·

Airbag sensor assembly


Comes on Not applicable

WIRING DIAGRAM

C417471
5.531,4.719 5.958,4.927 0.427,0.208 10 false W1 5.531,4.875 7.094,5.094 1.563,0.219 10 false Airbag Sensor Assembly 5.667,0.5 6.5,1.198 0.833,0.698 10 false BBR+ 5.667,1.135 6.5,1.833 0.833,0.698 10 false BBR- 5.365,0.385 6.208,1.385 0.844,1 10 false 25 5.365,0.948 6.031,1.781 0.667,0.833 10 false 26 0.26,2.771 3.219,3.521 2.958,0.75 10 false No. 4 Side Airbag Sensor RH 0.26,2.615 0.833,3.167 0.573,0.552 10 false W21 1.74,0.385 2.771,1.188 1.031,0.802 10 false 4 1.729,0.979 2.76,1.781 1.031,0.802 10 false 3 1.719,1.531 2.75,2.333 1.031,0.802 10 false 1 1.708,2.156 2.74,2.958 1.031,0.802 10 false 2 1.188,0.521 2.135,1.021 0.948,0.5 10 false BBR+ 1.198,1.094 3.083,1.896 1.885,0.802 10 false BBR- 1.188,2.281 3.073,3.083 1.885,0.802 10 false BCR- 1.177,1.708 2.125,2.208 0.948,0.5 10 false BCR+ 4.177,1.708 5.125,2.208 0.948,0.5 10 false BCR+ 4.188,4.354 6.073,5.156 1.885,0.802 10 false BDR- 3.927,1.563 4.958,2.365 1.031,0.802 10 false 4 3.917,2.135 4.948,2.938 1.031,0.802 10 false 3 4.198,2.302 6.083,3.104 1.885,0.802 10 false BCR- 1.198,3.792 2.146,4.292 0.948,0.5 10 false BDR+ 4.167,3.802 5.115,4.302 0.948,0.5 10 false BDR+ 2.615,4.542 4.5,5.344 1.885,0.802 10 false BDR- 2.646,4 3.594,4.5 0.948,0.5 10 false BDR+ 1.219,4.344 3.104,5.146 1.885,0.802 10 false BDR- 3.573,4.865 5.385,5.083 1.813,0.219 10 false No. 2 Side Airbag Sensor RH 3.563,4.698 4.063,4.896 0.5,0.198 10 false W22 0.281,4.844 2.917,5.385 2.635,0.542 10 false No. 3 Side Airbag Sensor RH 0.281,4.677 0.781,5.073 0.5,0.396 10 false S7 2.646,3.802 3.104,4 0.458,0.198 10 false SW2 2.646,4.344 3.104,4.542 0.458,0.198 10 false SW2 3.958,4.219 4.99,5.021 1.031,0.802 10 false 2 2.76,3.594 3.104,3.771 0.344,0.177 10 false 2 1.667,4.229 2.698,5.031 1.031,0.802 10 false 1 1.677,3.677 2.708,4.479 1.031,0.802 10 false 2 3.938,3.667 4.969,4.469 1.031,0.802 10 false 1 2.771,4.146 3.083,4.365 0.313,0.219 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK PAST DTC
a.

Turn the engine switch on (IG), and wait for at least 60 seconds.


b.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188

Result:
Proceed to
DTC B1632 is not output
DTC B1632 is output



DTC B1632 is not output

2.CHECK CONNECTION OF CONNECTORS

DTC B1632 is output

GO TO DTC B1632

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>B1630


2.CHECK CONNECTION OF CONNECTORS
a.

Turn the engine switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the No. 4 side airbag sensor RH and No. 2 side airbag sensor RH.


Result:
Proceed to
The connectors are properly connected
The connectors are not properly connected



The connectors are properly connected

3.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

3.CHECK CONNECTORS
a.
C413757C01
0.604,1.458 0.917,1.615 0.313,0.156 10 false *1 2.573,1.469 2.885,1.625 0.313,0.156 10 false *2 1.521,1.094 1.833,1.25 0.313,0.156 10 false *3
*1 No. 2 Side Airbag Sensor RH
*2 No. 4 Side Airbag Sensor RH
*3 No. 2 Floor Wire


Disconnect the connectors from the No. 4 side airbag sensor RH and No. 2 side airbag sensor RH.


b.

Check that the connectors (on the No. 4 side airbag sensor RH side and No. 2 side airbag sensor RH side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

4.CHECK NO. 2 FLOOR WIRE

The connectors are deformed or damaged

REPLACE NO. 2 FLOOR WIRE

4.CHECK NO. 2 FLOOR WIRE
a.

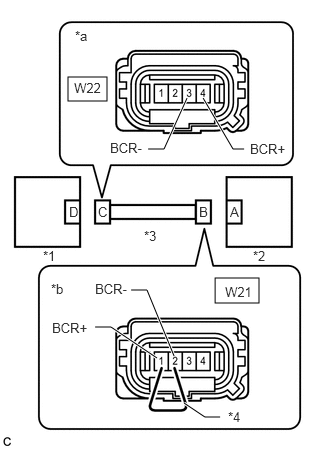

C418104C04
0.708,0.802 1.115,1.052 0.406,0.25 2.24,2.896 2.698,3.156 0.458,0.26 1.542,1.552 1.708,1.552 1.708,1.552 1.948,1.021 true 2.542,1.552 2.427,1.552 2.427,1.552 2.115,1.021 true 0.99,3.406 1.156,3.406 1.156,3.406 1.635,3.729 true 1.365,3.021 1.531,3.021 1.531,3.021 1.813,3.708 true 1.917,4.198 2.135,4.344 2.135,4.344 2.292,4.344 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.5,2.375 1.813,2.531 0.313,0.156 10 false *3 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.531,2.927 0.844,3.083 0.313,0.156 10 false *b 0.771,0.833 1.104,0.99 0.333,0.156 10 false W22 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.125 1.333,2.281 0.313,0.156 10 false C 0.719,2.125 1.031,2.281 0.313,0.156 10 false D 2.344,2.958 2.729,3.177 0.385,0.219 10 false W21 2.604,1.469 3.167,1.729 0.563,0.26 10 false BCR+ 1.146,1.458 1.708,1.719 0.563,0.26 10 false BCR- 0.99,2.927 1.552,3.188 0.563,0.26 10 false BCR- 0.542,3.333 1.104,3.594 0.563,0.26 10 false BCR+ 2.375,4.26 2.688,4.417 0.313,0.156 10 false *4
*1 No. 2 Side Airbag Sensor RH
*2 No. 4 Side Airbag Sensor RH
*3 No. 2 Floor Wire
*4 Service Wire
*a Front view of wire harness connector
(to No. 2 Side Airbag Sensor RH)
*b Front view of wire harness connector
(to No. 4 Side Airbag Sensor RH)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
W22-4 (BCR+) - Body ground Engine switch on (IG) Below 1 V
W22-3 (BCR-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 1 (BCR+) and 2 (BCR-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W22-4 (BCR+) - W22-3 (BCR-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W22-4 (BCR+) - W22-3 (BCR-) Always 1 MΩ or higher
W22-4 (BCR+) - Body ground Always 1 MΩ or higher
W22-3 (BCR-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK NO. 2 SIDE AIRBAG SENSOR RH

NG

REPLACE NO. 2 FLOOR WIRE

5.CHECK NO. 2 SIDE AIRBAG SENSOR RH
a.
B529883C08
0.969,1.521 1.24,1.719 0.271,0.198 10 false *1 2.323,1.531 2.594,1.729 0.271,0.198 10 false *2
*1 No. 2 Side Airbag Sensor LH
*2 No. 4 Side Airbag Sensor RH


Connect the connector to the No. 4 side airbag sensor RH.


b.

Interchange the No. 2 side airbag sensor RH with LH and connect the connectors to them.


c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the engine switch on (IG), and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the engine switch off.


g.

Turn the engine switch on (IG), and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B1633 is output
DTC B1638 is output
DTCs B1633 and B1638 are not output


HINT:

Codes other than DTC B1633 and B1638 may be output at this time, but they are not related to this check.



i.

Turn the engine switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors to them.



DTC B1633 is output

6.CHECK NO. 4 SIDE AIRBAG SENSOR RH

DTC B1638 is output

REPLACE NO. 2 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Pillar)>REMOVAL


DTCs B1633 and B1638 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


6.CHECK NO. 4 SIDE AIRBAG SENSOR RH
a.

Interchange the No. 4 side airbag sensor RH with LH and connect the connectors to them.


C374693C26
0.969,1.583 1.24,1.781 0.271,0.198 10 false *1 2.49,1.396 2.76,1.594 0.271,0.198 10 false *2
*1 No. 4 Side Airbag Sensor LH
*2 Airbag Sensor Assembly


b.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


c.

Turn the engine switch on (IG), and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the engine switch off.


f.

Turn the engine switch on (IG), and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B1633 is output
DTC B1638 is output
DTCs B1633 and B1638 are not output


HINT:

Codes other than DTC B1633 and B1638 may be output at this time, but they are not related to this check.



h.

Turn the engine switch off.


i.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


j.

Return the No. 4 side airbag sensor LH and RH to their original positions and connect the connectors to them.



DTC B1633 is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


DTC B1638 is output

REPLACE NO. 4 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Pillar)>REMOVAL


DTCs B1633 and B1638 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING
