SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type C)  B162C  Side Airbag Sensor Assembly No.2 Initialization Error (RH)


DESCRIPTION

The side collision sensor RH circuit consists of the airbag sensor assembly, No. 1 side airbag sensor RH and Rear Floor Side Airbag Sensor.

The No. 1 side airbag sensor RH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

DTC B162C is stored when a malfunction is detected in the circuit for the side collision sensor RH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B162C Side Airbag Sensor Assembly No.2 Initialization Error (RH) One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor RH for 2 seconds.

·

A No. 1 side airbag sensor RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 Floor wire

·

No. 1 side airbag sensor RH

·

Airbag sensor assembly


Comes on Not applicable

WIRING DIAGRAM

C412957
5.354,2.073 7.021,2.458 1.667,0.385 10 false Airbag Sensor Assembly 0.479,4.042 2.375,4.74 1.896,0.698 10 false No. 1 Side Airbag Sensor RH 4.042,4.01 6.49,4.479 2.448,0.469 10 false Rear Floor Side Airbag Sensor 5.719,0.833 6.333,1.031 0.615,0.198 10 false BCR+ 5.719,1.49 6.333,1.688 0.615,0.198 10 false BCR- 1.083,0.833 1.698,1.031 0.615,0.198 10 false BFR+ 1.094,1.458 1.708,1.656 0.615,0.198 10 false BFR- 1.083,2.802 1.698,3 0.615,0.198 10 false BER+ 1.073,3.344 1.688,3.542 0.615,0.198 10 false BER- 4.167,2.802 4.781,3 0.615,0.198 10 false BER+ 4.167,3.344 4.781,3.542 0.615,0.198 10 false BER- 5.354,0.719 5.833,1.25 0.479,0.531 10 false 28 5.365,1.313 5.844,1.844 0.479,0.531 10 false 27 1.667,0.698 2.313,1.417 0.646,0.719 10 false 4 1.667,1.333 2.531,2.75 0.865,1.417 10 false 3 1.646,2.656 2.417,3.542 0.771,0.885 10 false 1 1.635,3.198 2.271,4.01 0.635,0.813 10 false 2 3.854,3.219 4.625,4.104 0.771,0.885 10 false 1 3.844,2.646 4.479,3.458 0.635,0.813 10 false 2 5.354,1.896 5.813,2.094 0.458,0.198 10 false W1 0.469,3.885 0.927,4.083 0.458,0.198 10 false W5 4.031,3.844 4.49,4.042 0.458,0.198 10 false W23

CAUTION / NOTICE / HINT

NOTICE:
·

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK PAST DTC
a.

Turn the engine switch on (IG), and wait for at least 60 seconds.


b.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188

Result:
Proceed to
DTC B162B is not output
DTC B162B is output



DTC B162B is not output

2.CHECK CONNECTION OF CONNECTORS

DTC B162B is output

GO TO DTC B162B

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>B162A


2.CHECK CONNECTION OF CONNECTORS
a.

Turn the engine switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the airbag sensor assembly and No. 1 side airbag sensor RH.


Result:
Proceed to
The connectors are properly connected
The connectors are not properly connected



The connectors are properly connected

3.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

3.CHECK CONNECTORS
a.

Disconnect the connectors from the airbag sensor assembly and No. 1 side airbag sensor RH.


b.
C208245C47
0.656,1.75 0.969,1.948 0.313,0.198 10 false *1 1.521,1.031 1.833,1.229 0.313,0.198 10 false *3 2.573,1.542 2.885,1.74 0.313,0.198 10 false *2
*1 No. 1 Side Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 No. 2 Floor Wire


Check that the connectors (on the airbag sensor assembly side and No. 1 side airbag sensor RH side) are not damaged.


Result:
Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged



The connectors are not deformed or damaged

4.CHECK NO. 2 FLOOR WIRE

The connectors are deformed or damaged

REPLACE NO. 2 FLOOR WIRE

4.CHECK NO. 2 FLOOR WIRE
a.
C413918C01
0.698,0.594 1.156,0.813 0.458,0.219 2.646,3.115 3.104,3.333 0.458,0.219 2.042,3.927 1.479,3.49 1.479,3.49 1.313,3.49 true 1.354,3.75 1.521,3.75 1.521,3.75 1.948,3.938 true 1.458,1.24 1.615,1.24 1.615,1.24 1.885,0.771 true 2.458,1.208 2.281,1.208 2.281,1.208 2.063,0.76 true 1.885,4.26 2.021,4.396 2.021,4.396 2.177,4.396 true 0.427,2.677 0.74,2.833 0.313,0.156 10 false *1 2.688,2.479 3,2.635 0.313,0.156 10 false *2 1.5,2.385 1.813,2.542 0.313,0.156 10 false *3 2.229,4.302 2.542,4.458 0.313,0.156 10 false *4 0.771,0.208 1.083,0.365 0.313,0.156 10 false *a 0.958,2.906 1.271,3.063 0.313,0.156 10 false *b 2.281,2.167 2.594,2.323 0.313,0.156 10 false A 1.99,2.167 2.302,2.323 0.313,0.156 10 false B 1.01,2.177 1.323,2.333 0.313,0.156 10 false C 0.719,2.177 1.031,2.333 0.313,0.156 10 false D 0.792,0.625 1.104,0.781 0.313,0.156 10 false W5 2.74,3.135 3.052,3.292 0.313,0.156 10 false W1 0.917,3.406 1.417,3.646 0.5,0.24 10 false BCR+ 0.958,3.677 1.458,3.917 0.5,0.24 10 false BCR- 2.531,1.125 3.031,1.365 0.5,0.24 10 false BFR+ 1.073,1.135 1.573,1.375 0.5,0.24 10 false BFR-
*1 No. 1 Side Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 No. 2 Floor Wire
*4 Service Wire
*a Front view of wire harness connector
(to No. 1 Side Airbag Sensor RH)
*b Front view of wire harness connector
(to Airbag Sensor Assembly)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
W5-4 (BFR+) - Body ground Engine switch on (IG) Below 1 V
W5-3 (BFR-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 28 (BCR+) and 27 (BCR-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W5-4 (BFR+) - W5-3 (BFR-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W5-4 (BFR+) - W5-3 (BFR-) Always 1 MΩ or higher
W5-4 (BFR+) - Body ground Always 1 MΩ or higher
W5-3 (BFR-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK NO. 1 SIDE AIRBAG SENSOR RH

NG

REPLACE NO. 2 FLOOR WIRE

5.CHECK NO. 1 SIDE AIRBAG SENSOR RH
a.
C374693C24
0.969,1.583 1.24,1.781 0.271,0.198 10 false *1 2.49,1.396 2.76,1.594 0.271,0.198 10 false *2
*1 No. 1 Side Airbag Sensor LH
*2 Airbag Sensor Assembly


Connect the connectors to the airbag sensor assembly.


b.

Interchange the No. 1 side airbag sensor RH with LH and connect the connectors to them.


c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the engine switch on (IG), and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the engine switch off.


g.

Turn the engine switch on (IG), and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B162C is output
DTC B163B or B163C is output
DTCs B162C, B163B and B163C are not output


HINT:

Codes other than DTC B162C, B163B and B163C may be output at this time, but they are not related to this check.



i.

Turn the engine switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Return the No. 1 side airbag sensor LH and RH to their original positions and connect the connectors to them.



DTC B162C is output

6.CHECK CONNECTION OF CONNECTOR

DTC B163B or B163C is output

REPLACE NO. 1 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Center Pillar)>REMOVAL


DTCs B162C, B163B and B163C are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


6.CHECK CONNECTION OF CONNECTOR
a.

Check that the connector is properly connected to the rear floor side airbag sensor.


Result:
Proceed to
The connector is properly connected
The connector is not properly connected



The connector is properly connected

7.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

7.CHECK CONNECTOR
a.
C413756C01
0.604,1.5 0.917,1.656 0.313,0.156 10 false *1 2.604,1.5 2.917,1.656 0.313,0.156 10 false *2 1.563,1.135 1.875,1.292 0.313,0.156 10 false *3
*1 Rear Floor Side Airbag Sensor
*2 No. 1 Side Airbag Sensor RH
*3 No. 2 Floor Wire


Disconnect the connectors from the No. 1 side airbag sensor RH and rear floor side airbag sensor.


b.

Check that the connector (on the rear floor side airbag sensor side) is not damaged.


Result:
Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged



The connector is not deformed or damaged

8.CHECK NO. 2 FLOOR WIRE

The connector is deformed or damaged

REPLACE NO. 2 FLOOR WIRE

8.CHECK NO. 2 FLOOR WIRE
a.
C420903C01
0.708,0.802 1.083,1.052 0.375,0.25 2.24,2.906 2.74,3.146 0.5,0.24 1.438,1.51 1.604,1.51 1.604,1.51 1.844,0.979 true 2.479,1.51 2.302,1.51 2.302,1.51 1.99,0.979 true 0.99,3.406 1.156,3.406 1.156,3.406 1.635,3.729 true 1.365,3.021 1.531,3.021 1.531,3.021 1.813,3.708 true 1.917,4.198 2.135,4.344 2.135,4.344 2.292,4.344 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.5,2.375 1.813,2.531 0.313,0.156 10 false *3 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.531,2.927 0.844,3.083 0.313,0.156 10 false *b 0.76,0.844 1.125,1 0.365,0.156 10 false W23 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.125 1.333,2.281 0.313,0.156 10 false C 0.719,2.125 1.031,2.281 0.313,0.156 10 false D 2.365,2.948 2.677,3.104 0.313,0.156 10 false W5 2.563,1.427 3.125,1.688 0.563,0.26 10 false BER+ 1.052,1.417 1.615,1.677 0.563,0.26 10 false BER- 0.99,2.927 1.552,3.188 0.563,0.26 10 false BER- 0.542,3.333 1.104,3.594 0.563,0.26 10 false BER+ 2.375,4.26 2.688,4.417 0.313,0.156 10 false *4

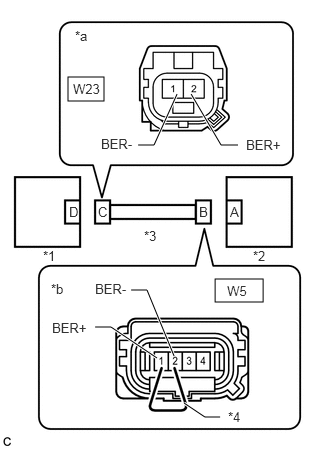

*1 Rear Floor Side Airbag Sensor
*2 No. 1 Side Airbag Sensor RH
*3 No. 2 Floor Wire
*4 Service Wire
*a Front view of wire harness connector
(to Rear Floor Side Airbag Sensor)
*b Front view of wire harness connector
(to No. 1 Side Airbag Sensor RH)


Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


b.

Turn the engine switch on (IG).


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
W23-2 (BER+) - Body ground Engine switch on (IG) Below 1 V
W23-1 (BER-) - Body ground Engine switch on (IG) Below 1 V



d.

Turn the engine switch off.


e.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


f.

Using a service wire, connect terminals 1 (BER+) and 2 (BER-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



g.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W23-2 (BER+) - W23-1 (BER-) Always Below 1 Ω



h.

Disconnect the service wire from connector B.


i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W23-2 (BER+) - W23-1 (BER-) Always 1 MΩ or higher
W23-2 (BER+) - Body ground Always 1 MΩ or higher
W23-1 (BER-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

9.CHECK DTC

NG

REPLACE NO. 2 FLOOR WIRE

9.CHECK DTC
a.
B529883C08
0.969,1.521 1.24,1.719 0.271,0.198 10 false *1 2.323,1.531 2.594,1.729 0.271,0.198 10 false *2
*1 Rear Floor Side Airbag Sensor
*2 No. 1 Side Airbag Sensor RH


Connect the connectors to the rear floor side airbag sensor and No. 1 side airbag sensor RH.


b.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


c.

Turn the engine switch on (IG), and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the engine switch off.


f.

Turn the engine switch on (IG), and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTC B162C is output
DTC B162C is not output


HINT:

Codes other than DTC B162C may be output at this time, but they are not related to this check.




DTC B162C is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


DTC B162C is not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING
