RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384945 SIDE AIRBAG SENSOR(for Center Pillar) A

SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Center Pillar) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 side airbag sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 67912A 3.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67914B 4.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0001,

Hide Display 67918D 5.REMOVE REAR DOOR SCUFF PLATE LH (for Slide Door Side)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0011,202208,999999,_58,_078375,_0380060,RM1000000024I16_02_0011,

Hide Display 73233D 6.REMOVE OUTER LAP BELT ANCHOR COVER

for Wagon:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398106,RM100000001IT68_02_0114,

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,999999,_58,_078602,_0387551,RM100000001GXXS_02_0120,

Hide Display 73220 7.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

for Wagon:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398106,RM100000001IT68_02_0115,

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,999999,_58,_078602,_0387551,RM100000001GXXS_02_0121,

Hide Display 74617A 8.REMOVE ASSIST GRIP PLUG (except Wagon, w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0050,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0050,

Hide Display 74680 9.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (except Wagon, w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0049,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0049,

Hide Display 74617A 10.REMOVE ASSIST GRIP PLUG (for Wagon)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0024,

Hide Display 74680 11.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (for Wagon)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0025,

Hide Display 62414A 12.REMOVE LOWER CENTER PILLAR GARNISH LH

Remove the rear side of the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385652,RM100000001GNFL_02_0003,

for Slide Door Side:

Remove the front side of the No. 1 slide door weatherstrip LH so that the lower center pillar garnish LH can be removed.

for Wagon:

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

ii.

except Wagon:

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,999999,_59,_078503,_0385653,RM100000001JGPJ_02_0010,

Remove the lower center pillar garnish LH.

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0017,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0017,

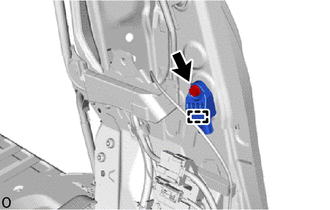

Hide Display 89831A 13.REMOVE NO. 1 SIDE AIRBAG SENSOR

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

Remove the bolt.

NOTICE:: ·

Loosen the bolt while holding the No. 1 side airbag sensor because the No. 1 side airbag sensor guide is easily damaged.

·

If the No. 1 side airbag sensor has been dropped, replace it with a new one.

Detach the guide to remove the No. 1 side airbag sensor.
