RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384946 SIDE AIRBAG SENSOR(for Rear Door) A

SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Rear Door) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1.INSTALL CLIP

NOTICE:: If the clip is removed, do not reuse it.

HINT:: Perform this procedure only when removal/installation of the clip is necessary.

a.

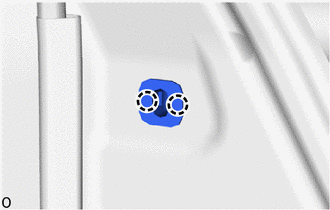

B550083

Attach the claw and install a new clip.

Hide Display 89831G 2.INSTALL NO. 3 SIDE AIRBAG SENSOR

a.

Check that the ignition switch is off.

b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

c.

for Van:

i.

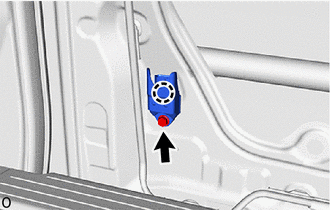

B524645

Attach the claw and hold the No. 3 side airbag sensor in place.

NOTICE:: ·

If the No. 3 side airbag sensor has been dropped, replace it with a new one.

·

When installing the No. 3 side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

d.

for Wagon:

i.

B550082

Attach the guide and hold the No. 3 side airbag sensor in place.

NOTICE:: ·

If the No. 3 side airbag sensor has been dropped, replace it with a new one.

·

When installing the No. 3 side airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

e.

Install the bolt.

Torque:: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

NOTICE:: Tighten the bolt while holding the No. 3 side airbag sensor because the No. 3 side airbag sensor claw is easily damaged.

f.

Check that there is no looseness in the installation parts of the No. 3 side airbag sensor.

g.

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

Hide Display 67604 3.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (for Van)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (except Wagon)>REASSEMBLY201902,999999,_59,_078503,_0387482,RM100000001GXKB_02_0040,

Hide Display 67690C 4.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY LH (for Wagon)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397542,RM100000001IPZD_02_0038,

Hide Display 81380D 5.INSTALL STEP LIGHT ASSEMBLY (for Wagon)

Click hereVehicle Interior>LIGHTING (INT)>STEP LIGHT ASSEMBLY>INSTALLATION201906,999999,_58,_078381,_0399284,RM100000001IZW1,

Hide Display 67488A 6.INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH (for Wagon)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397542,RM100000001IPZD_02_0042,

Hide Display 67668A 7.INSTALL SLIDE DOOR WINDOW GARNISH LH (for Wagon)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397542,RM100000001IPZD_02_0046,

Hide Display 67693B 8.INSTALL UPPER SLIDE DOOR TRIM COVER LH (for Wagon)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397542,RM100000001IPZD_02_0044,

Hide Display 65988A 9.INSTALL SUNSHADE HOOK (for Wagon, w/ Sunshade)

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,999999,_59,_078503,_0397542,RM100000001IPZD_02_0059,

Hide Display 10.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 11. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 12.PERFORM DIAGNOSTIC SYSTEM CHECK

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 13.CHECK SRS WARNING LIGHT

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 14.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Door)>REMOVAL201906,999999,_58,_079257,_0384946,RM100000001IIRF,
