HEATING / AIR CONDITIONING BLOWER UNIT REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the blower assembly removal/installation are shown below.
| Replacement part or procedure | Necessary procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
||
for Automatic Air Conditioning System:
·
No. 1 blower damper servo sub-assembly |
Servo motor initialization | DTCs are output | (201902,999999,_58,_079316,_0386651,RM100000001GSS4,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
-Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Before removing the blower assembly, set the air conditioning to recirculation mode.
PROCEDURE
1. PRECAUTION
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ··
- NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
3.REMOVE AIR CONDITIONER UNIT ASSEMBLY
87130D
4.REMOVE BLOWER ASSEMBLY (for LHD)
w/ PTC Heater:
| *A | for Automatic Air Conditioning System |
| *B | for Manual Air Conditioning System |
Remove the screw.

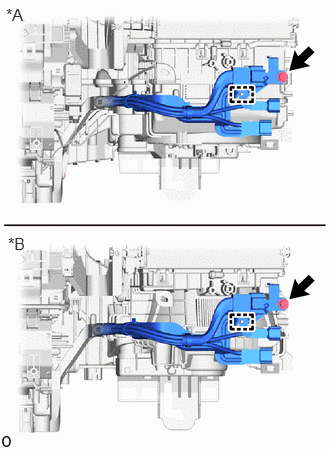

Detach the guide and disconnect the blower assembly side of the No. 2 cooler wiring.
for Automatic Air Conditioning System:

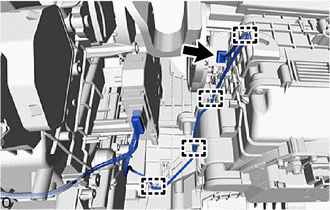

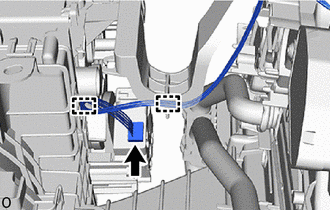

Disconnect the connector from the No. 1 blower damper servo sub-assembly.
Detach the guide.
Remove the 2 screws.
| *A | except Automatic Air Conditioning System | *B | for Automatic Air Conditioning System |

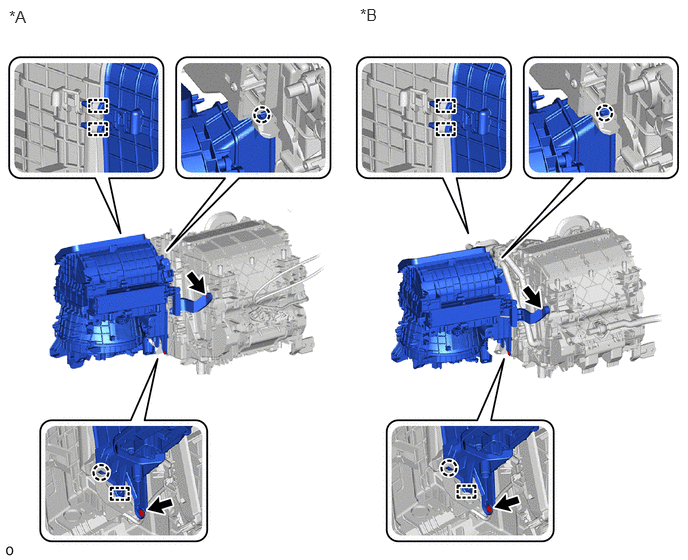

Detach the claw and guide and remove the blower assembly.
87130D
5.REMOVE BLOWER ASSEMBLY (for RHD)
w/ PTC Heater:
Remove the screw.

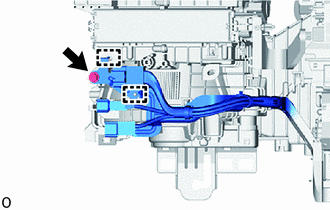

Detach the guide and disconnect the blower assembly side of the No. 2 cooler wiring.
for Automatic Air Conditioning System:
Disconnect the connector from the No. 1 blower damper servo sub-assembly.
Detach the guide.
Remove the 2 screws.
| *A | except Automatic Air Conditioning System | *B | for Automatic Air Conditioning System |

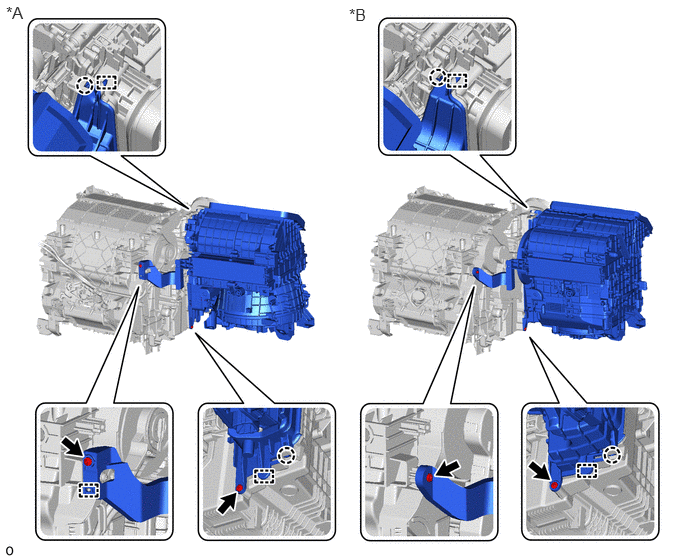

Detach the claw and guide and remove the blower assembly.
