RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384876 REAR COOLING UNIT A

HEATING / AIR CONDITIONING REAR COOLING UNIT REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear cooling unit assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure	Necessary procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201902,202310,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,202310,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,202310,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,202310,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,202310,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,202310,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,202310,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0001,

Hide Display 4.REMOVE ROOF HEADLINING ASSEMBLY

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,202310,_58,_078375,_0396474,RM100000001IHQ5,

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1,202208,202310,_58,_078375,_0380060,RM1000000024I16,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4,202208,202310,_58,_078375,_0381233,RM1000000024I19,

Hide Display 88539K 5.REMOVE DRAIN COOLER HOSE

for Standard Roof:

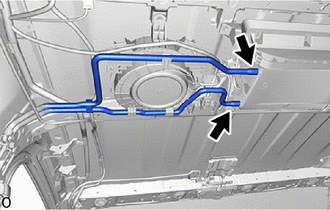

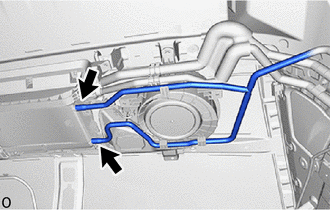

Disconnect each drain cooler hose.

for High Roof:

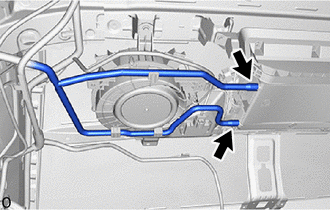

Disconnect each drain cooler hose.

Hide Display 88539W 6.REMOVE NO. 2 DRAIN COOLER HOSE

for Standard Roof:

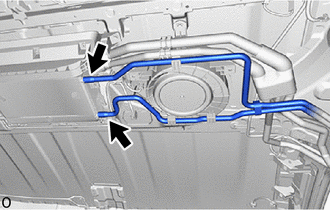

Disconnect each No. 2 cooler unit drain hose.

for High Roof:

Disconnect each No. 2 cooler unit drain hose.

Hide Display 87030A 7.REMOVE REAR COOLING UNIT ASSEMBLY

for Standard Roof:

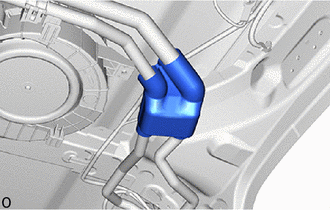

Remove the cooling unit parts.

for High Roof:

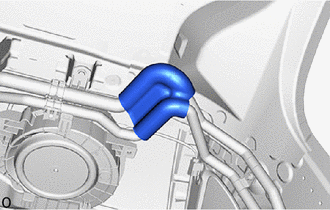

Remove the cooling unit parts.

0.719,1.271 1.219,1.271 true 1.927,1.302 2.427,1.302 true 0.469,1.177 0.708,1.354 0.24,0.177 10 true *1 2.521,1.208 2.729,1.385 0.208,0.177 10 true *2

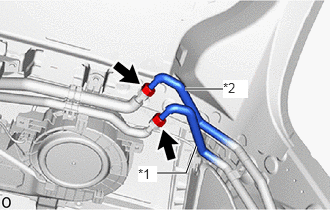

*1	Cooler Refrigerant Liquid Pipe D
*2	Cooler Refrigerant Suction Pipe D

for Standard Roof:

Remove the 2 bolts.

ii.

Disconnect the cooler refrigerant liquid pipe D and cooler refrigerant suction pipe D.

1.927,0.927 2.333,0.927 true 1.625,1.802 1.938,1.802 1.938,1.802 2.042,1.521 true 1.438,1.729 1.635,1.896 0.198,0.167 10 true *1 2.323,0.833 2.583,1.021 0.26,0.188 10 true *2

*1	Cooler Refrigerant Liquid Pipe D
*2	Cooler Refrigerant Suction Pipe D

for High Roof:

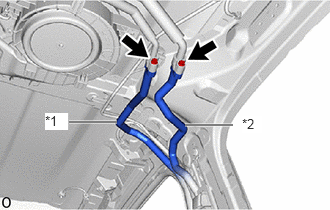

Using a double wrench, remove the union nuts and disconnect the cooler refrigerant liquid pipe D and cooler refrigerant suction pipe D.

Remove the O-ring from the cooler refrigerant liquid pipe D and cooler refrigerant suction pipe D.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

for Standard Roof:

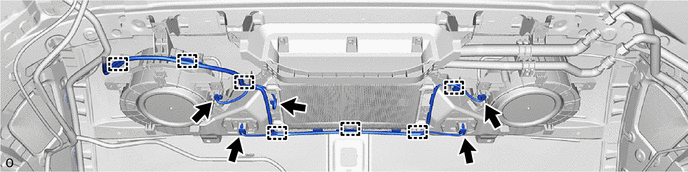

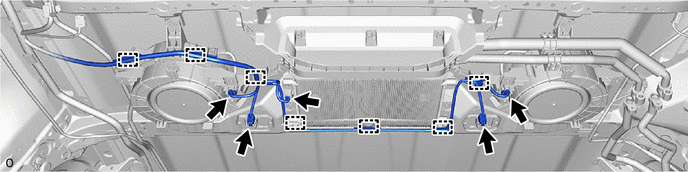

Disconnect each connector.

ii.

Detach each clamp and remove the vehicle wire harness.

iii.

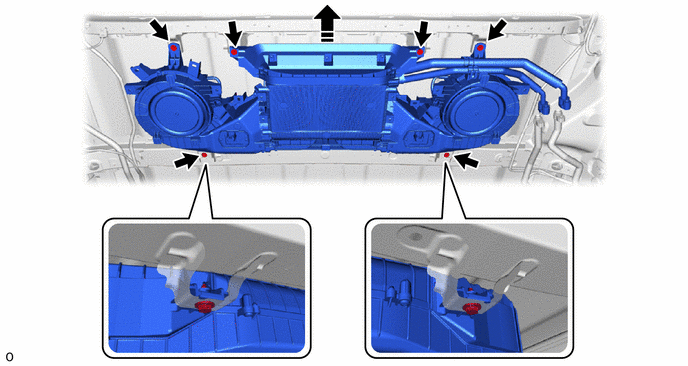

While supporting the rear cooling unit assembly to prevent it from falling, remove the 6 bolts. Then, while moving the rear cooling unit assembly in the direction indicated by the arrow shown in the illustration, remove the front mounting position from the vehicle roof reinforcement and remove the rear cooling unit assembly.

0,0 0,0 false

Remove in this Direction

for High Roof:

Disconnect each connector.

ii.

Detach each clamp and remove the vehicle wire harness.

iii.

0,0 0,0 false

Remove in this Direction
