HEATING / AIR CONDITIONING  ION GENERATOR(for Rear)  INSTALLATION

88051C 1.INSTALL NO. 2 ION GENERATOR SUB-ASSEMBLY

a.

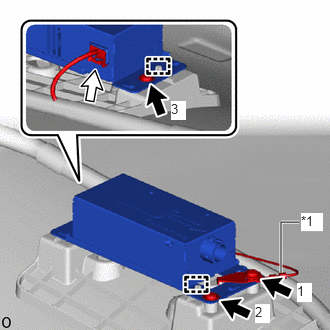

for Rear Air Conditioning:

i.

2.927,2.844 2.927,2.313 2.927,2.313 3.115,2.313 true 3.135,2.219 3.365,2.406 0.229,0.188 10 true *1 3.094,2.948 3.25,3.146 0.156,0.198 10 true 1 2.656,3.167 2.813,3.365 0.156,0.198 10 true 2 1.781,1.052 1.938,1.25 0.156,0.198 10 true 3

*1	Ground Wire
	Screw
	Connector

Attach the guide and temporarily install the No. 2 ion generator sub-assembly.

ii.

Tighten the 3 screws and ground wire in the order shown in the illustration.

iii.

Connect the No. 2 ion generator sub-assembly connector.

b.

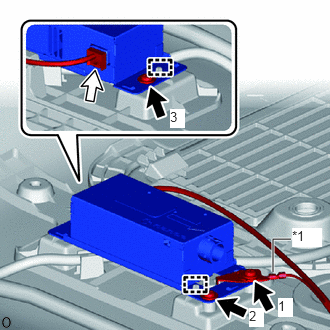

for Rear Cooler:

i.

2.844,2.833 2.844,2.49 2.844,2.49 3.031,2.49 true 3.042,2.375 3.354,2.573 0.313,0.198 10 true *1 2.896,3.104 3.052,3.302 0.156,0.198 10 true 1 2.594,3.208 2.75,3.406 0.156,0.198 10 true 2 1.771,1.135 1.927,1.333 0.156,0.198 10 true 3

*1	Ground Wire
	Screw
	Connector

Attach the guide and temporarily install the No. 2 ion generator sub-assembly.

ii.

Tighten the 3 screws and ground wire in the order shown in the illustration.

iii.

Connect the No. 2 ion generator sub-assembly connector.

87202F 2.INSTALL REAR AIR DUCT SUB-ASSEMBLY

a.

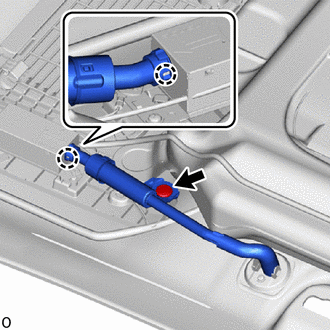

for Rear Air Conditioning:

i.

Attach the claw to install the rear air duct sub-assembly.

ii.

Attach the clip.

b.

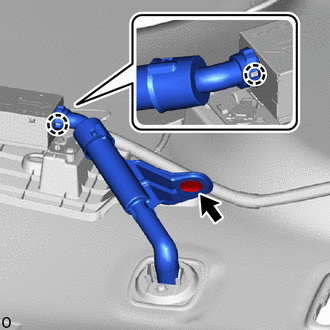

for Rear Cooler:

i.

Attach the claw to install the rear air duct sub-assembly.

ii.

Attach the clip.

3.INSTALL ROOF HEADLINING ASSEMBLY

4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

5. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

6.PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

7.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)
