RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396487 ILLUMINATION ECU(for Front Side) A

LIGHTING (INT) ILLUMINATION ECU(for Front Side) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 85965 1.INSTALL ROOM LIGHT CONTROL RELAY

Connect the connector.

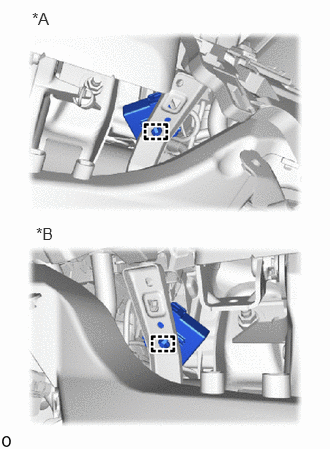

0.333,0.094 0.708,0.333 0.375,0.24 12 false *A 0.375,2.333 0.75,2.573 0.375,0.24 12 false *B

*A	for LHD
*B	for RHD

Attach the clamp to install the room light control relay.

Hide Display 2.INSTALL KNEE AIRBAG ASSEMBLY

Hide Display 3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

for 1GD-FTV:

Hide Display 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 5. PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

for Type C:

Hide Display 6.CHECK SRS WARNING LIGHT

for Type A:

for Type C:

Hide Display 7.PERFORM SYSTEM INITIALIZATION AND CALIBRATION
