RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396487 ILLUMINATION ECU(for Front Side) A

LIGHTING (INT) ILLUMINATION ECU(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during room light control relay removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE KNEE AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384937,RM100000001IIAE,

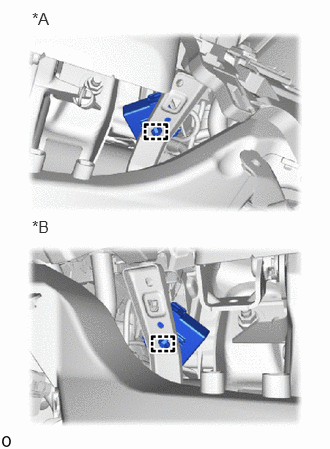

Hide Display 85965 4.REMOVE ROOM LIGHT CONTROL RELAY

0.333,0.094 0.708,0.333 0.375,0.24 12 false *A 0.333,2.26 0.708,2.5 0.375,0.24 12 false *B

*A	for LHD
*B	for RHD

Detach the clamp and remove the room light control relay.

Disconnect the connector.
