RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380041 AMPLIFIER ANTENNA A

AUDIO / VIDEO  AMPLIFIER ANTENNA  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 1 amplifier antenna assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 86300B 5.REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

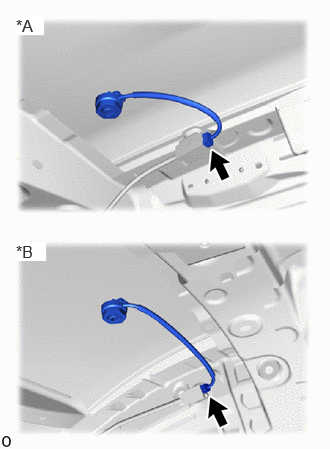

a.
E404880C01
0.167,0.167 0.458,0.365 0.292,0.198 12 true *A 0.167,2.521 0.479,2.719 0.313,0.198 12 true *B
*A for Standard Roof
*B for High Roof


Disconnect the connector.


b.
E404881C01
0.198,0.188 0.51,0.417 0.313,0.229 12 true *A 0.198,2.51 0.49,2.74 0.292,0.229 12 true *B
*A for Standard Roof
*B for High Roof
V113147

Remove in this Direction


Remove the antenna nut.


c.

for Standard Roof:

i.
E404883C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 amplifier antenna assembly.



d.

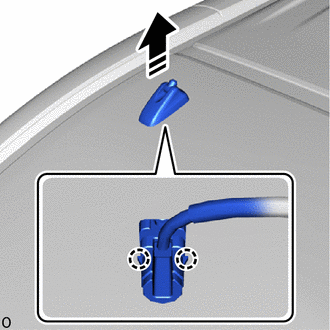

for High Roof:

i.
E404890C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 amplifier antenna assembly.
