RM35X0E _58 Vehicle Interior _078601 SEAT _0396332 REAR SEAT CUSHION HEATER A

SEAT REAR SEAT CUSHION HEATER INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.

PROCEDURE

Hide Display 87510Y 1.INSTALL REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH

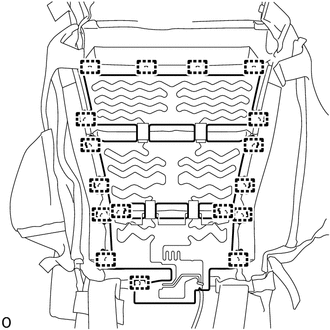

Using a tacker, install the rear No. 1 seat cushion heater assembly LH to the No. 1 seat cushion cover sub-assembly LH with 17 new tag pins as shown in the illustration.

NOTICE:: ·

Do not substitute other metal parts for tag pins.

·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH and rear No. 1 seat cushion heater assembly LH.

Hide Display 79012A 2.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0064,

Hide Display 3.INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0020,

Hide Display 79968W 4.INSTALL LH SEAT REAR NO. 1 SEAT LEG SIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0024,

Hide Display 71H76N 5.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0025,

Hide Display 79959F 6.INSTALL NO. 1 SEAT LEG COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0028,

Hide Display 7.INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0004,

Hide Display 73390 8.INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078602,_0398438,RM100000001IVZY_02_0001,

Hide Display 72046G 9.INSTALL LH SEAT NO. 1 SEAT NO. 2 TRACK COVER SUB-ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0006,

Hide Display 72345Z 10.INSTALL LH SEAT NO. 1 SEAT NO. 2 STAND FRAME CAP

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0007,

Hide Display 73375 11.INSTALL REAR SEAT SHOULDER BELT COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0008,

Hide Display 71H75R 12.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0009,

Hide Display 72803H 13.INSTALL LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0030,

Hide Display 66990E 14.INSTALL REAR NO. 1 SEAT CUP HOLDER ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0031,

Hide Display 71826C 15.INSTALL REAR SEAT CUSHION MOULDING LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0032,

Hide Display 71866D 16.INSTALL LH SEAT REAR NO. 1 SEAT COVER BEZEL

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0033,

Hide Display 71H74 17.INSTALL REAR SEAT LOWER CUSHION SHIELD LH (for Second Row)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0035,

Hide Display 71848W 18.INSTALL LH SEAT NO. 1 SEAT ADJUSTER COVER CAP

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0036,

Hide Display 72840K 19.INSTALL REAR NO. 1 SEAT ARMREST ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0037,

Hide Display 84923 20.INSTALL REAR POWER SEAT SWITCH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH (for Rear Seat)>INSTALLATION201906,999999,_58,_078601,_0396329,RM100000001IGZR_01_0006,

Hide Display 78060C 21.INSTALL NO. 1 SEAT SIDE TABLE ASSEMBLY (for First Row, RH Side)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0039,

Hide Display 72804E 22.INSTALL LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0042,

Hide Display 71844J 23.INSTALL REAR NO. 1 SEAT NO. 2 RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0043,

Hide Display 72C45 24.INSTALL LH SEAT NO. 1 SEAT NO. 3 STAND FRAME CAP (for First Row)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0044,

Hide Display 71849L 25.INSTALL NO. 1 SEAT ADJUSTER COVER CAP LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0046,

Hide Display 71324R 26.INSTALL REAR NO. 1 SEAT CUSHION LH (for First Row)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0047,

Hide Display 72890C 27.INSTALL LH SEAT NO. 1 SEAT ARMREST ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0048,

Hide Display 72345Y 28.INSTALL LH SEAT NO. 1 SEAT NO. 1 STAND FRAME CAP

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0049,

Hide Display 72526J 29.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>REASSEMBLY201906,999999,_58,_078601,_0396328,RM100000001IGZN_04_0050,

Hide Display 30.INSTALL REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 31.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 32. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 33. PERFORM DIAGNOSTIC SYSTEM CHECK (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 34.CHECK SRS WARNING LIGHT (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 35.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 36.INSPECT REAR SEAT ASSEMBLY

Click hereVehicle Interior>SEAT>REAR POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396767,RM100000001IJY3,

Hide Display 37.INSPECT SEAT HEATER SYSTEM

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396768,RM100000001IJYA,
