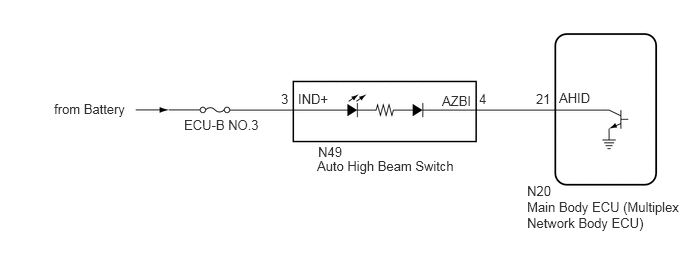

When the automatic high beam system is on, the main body ECU (multiplex network body ECU) illuminates the auto high beam switch indicator.
Inspect the fuses for circuits related to this system before performing the following procedure.
Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.
Connect the GTS to the DLC3.
Turn the engine switch on (IG).
Turn the GTS on.
Enter the following menus: Body Electrical / Main Body / Active Test.
Perform the Active Test according to the display on the GTS.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Automatic High Beam Switch Light | Auto high beam switch indicator light | OFF or ON | - |
| Tester Display |
|---|
| Automatic High Beam Switch Light |
Auto high beam switch indicator light illuminates.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the auto high beam switch.
Inspect the auto high beam switch.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the auto high beam switch connector.
| *a | Front view of wire harness connector
(to Auto High Beam Switch) |
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| N49-3 (IND+) - Body ground | Always | 11 to 14 V |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the N49 auto high beam switch connector.
Disconnect the N20 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| N49-4 (AZBI) - N20-21 (AHID) | Always | Below 1 Ω |
| N49-4 (AZBI) or N20-21 (AHID) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
for LHD:
for RHD:
NG
