LIGHTING (EXT) AUTOMATIC HIGH BEAM MAIN SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 67912A 1.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0046,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0046,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0046,

Hide Display 67914B 2.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0001,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0001,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0001,

Hide Display 62112 3.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0041,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0041,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0041,

Hide Display 55631A 4.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0078,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0079,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0079,

Hide Display 55011A 5.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0051,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0051,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0051,

Hide Display 55318C 6.REMOVE INSTRUMENT SIDE PANEL LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0053,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0053,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0053,

Hide Display 55641 7.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0055,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0055,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0055,

Hide Display 55432D 8.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0012,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0012,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0012,

Hide Display 84153 9.REMOVE AUTO HIGH BEAM SWITCH

a.

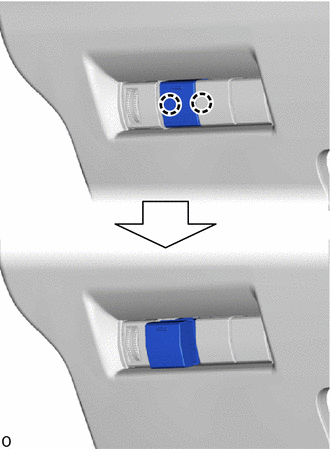

E413274

Detach the claw to remove the auto high beam switch.
