NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B15C0  GPS Antenna Connection Malfunction(short)  B15C1  GPS Antenna Connection Malfunction(break)


DESCRIPTION

These DTCs are stored when a malfunction occurs in the navigation antenna assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15C0 GPS Antenna Connection Malfunction(short) GPS Antenna Connection Malfunction(short)
·

Navigation antenna assembly

·

Antenna cord sub-assembly

·

Antenna divider*

·

Navigation ECU


B15C1 GPS Antenna Connection Malfunction(break) GPS Antenna Connection Malfunction(break)
·

Navigation antenna assembly

·

Antenna cord sub-assembly

·

Antenna divider*

·

Navigation ECU



*: w/ Telematics Transceiver


WIRING DIAGRAM

E364289E11

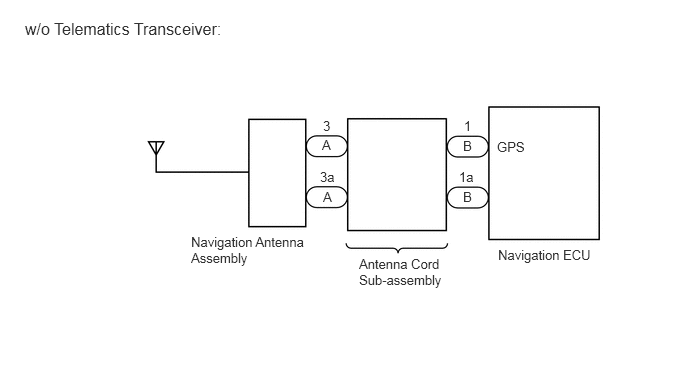

1.99,2.438 3.208,2.802 1.219,0.365 10 false Navigation Antenna Assembly 3.74,2.667 4.656,3.031 0.917,0.365 10 false Antenna Cord Sub-assembly 5.188,2.573 6.292,2.76 1.104,0.188 10 false Navigation ECU 4.823,1.438 4.938,1.604 0.115,0.167 10 false B 5.177,1.448 5.542,1.594 0.365,0.146 10 false GPS 3.354,1.427 3.469,1.594 0.115,0.167 10 false A 3.365,1.969 3.479,2.135 0.115,0.167 10 false A 4.823,1.969 4.938,2.135 0.115,0.167 10 false B 4.833,1.229 4.948,1.396 0.115,0.167 10 false 1 4.781,1.76 4.979,1.927 0.198,0.167 10 false 1a 3.365,1.229 3.479,1.396 0.115,0.167 10 false 3 3.333,1.76 3.531,1.927 0.198,0.167 10 false 3a 0.26,0.198 5.031,0.438 4.771,0.24 12 false w/o Telematics Transceiver:

E418250E01

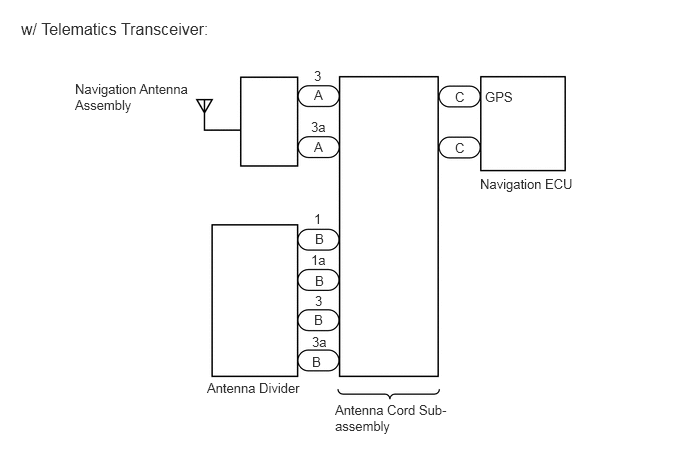

0.219,0.198 2.375,0.51 2.156,0.313 12 false w/ Telematics Transceiver: 3.49,4.188 4.688,4.635 1.198,0.448 10 false Antenna Cord Sub-assembly 5,1.833 6.198,2.281 1.198,0.448 10 false Navigation ECU 5.052,0.927 6.25,1.375 1.198,0.448 10 false GPS 2.156,3.958 3.354,4.406 1.198,0.448 10 false Antenna Divider 0.781,0.844 1.979,1.271 1.198,0.427 10 false Navigation Antenna Assembly 3.271,0.906 3.469,1.188 0.198,0.281 10 false A 3.271,1.448 3.469,1.729 0.198,0.281 10 false A 3.281,2.844 3.479,3.125 0.198,0.281 10 false B 3.281,2.406 3.479,2.688 0.198,0.281 10 false B 4.74,0.927 4.938,1.208 0.198,0.281 10 false C 4.74,1.458 4.938,1.74 0.198,0.281 10 false C 3.271,2.198 4.469,2.646 1.198,0.448 10 false 1 3.24,2.625 4.438,3.073 1.198,0.448 10 false 1a 3.271,0.708 4.469,1.156 1.198,0.448 10 false 3 3.24,1.24 4.438,1.688 1.198,0.448 10 false 3a 3.281,3.052 4.479,3.5 1.198,0.448 10 false 3 3.25,3.479 4.448,3.927 1.198,0.448 10 false 3a 3.271,3.25 3.469,3.531 0.198,0.281 10 false B 3.25,3.688 3.448,3.969 0.198,0.281 10 false B

CAUTION / NOTICE / HINT

NOTICE:

When replacing the navigation ECU, always replace it with a new one. If a navigation ECU which was installed to another vehicle is used, the following may occur:

·

A communication malfunction DTC may be stored.

·

The navigation ECU may not operate normally.



HINT:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION


PROCEDURE

1.CHECK DTC
a.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

b.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT NAVIGATION ANTENNA ASSEMBLY
3.CHECK VEHICLE CONDITION
a.

Check the vehicle condition.


Result:
Result Proceed to
w/o Telematics Transceiver A
w/ Telematics Transceiver B



A

4.INSPECT ANTENNA CORD SUB-ASSEMBLY

B

5.INSPECT ANTENNA DIVIDER
4.INSPECT ANTENNA CORD SUB-ASSEMBLY
a.
E364288C08
1.552,1.76 1.979,2.042 0.427,0.281 1.542,0.135 1.969,0.417 0.427,0.281 2.698,1.49 2.51,1.49 2.51,1.49 1.99,0.948 true 2.521,3.115 2.333,3.115 2.333,3.115 1.969,2.917 true 2.448,2.563 2.26,2.563 2.26,2.563 1.813,2.844 true 0.531,0.396 0.844,0.594 0.313,0.198 10 false *a 0.563,2.031 0.875,2.229 0.313,0.198 10 false *b 2.771,1.417 3.083,1.615 0.313,0.198 10 false 3a 2.583,3.042 2.896,3.24 0.313,0.198 10 false 1a 2.51,2.5 2.927,2.708 0.417,0.208 10 false GPS 1.708,1.823 1.865,2.021 0.156,0.198 10 false B 1.719,0.198 1.875,0.396 0.156,0.198 10 false A

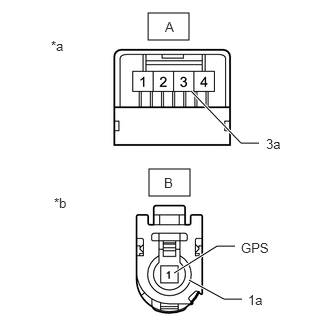

*a Front view of wire harness connector
(to Navigation Antenna Assembly)
*b Front view of wire harness connector
(to Navigation ECU)


Disconnect the antenna connector from the navigation antenna assembly.


b.

Disconnect the antenna connector from the navigation ECU.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A-3 - B-1 (GPS) Always Below 1 Ω
A-3a - B-1a Always Below 1 Ω
A-3 or B-1 (GPS)- Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE NAVIGATION ECU

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ECU>REMOVAL


NG

REPLACE ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD (for Instrument Panel Side)>REMOVAL


5.INSPECT ANTENNA DIVIDER
a.

Remove the antenna divider.

Click hereAudio / Visual / Telematics>TELEMATICS>ANTENNA DIVIDER>REMOVAL


b.
E402726C02
1.104,1.417 0.958,1.76 0.958,1.76 0.76,1.76 true 2.333,1.823 2.167,1.823 2.167,1.823 2.042,1.427 true 0.552,1.667 0.979,1.844 0.427,0.177 10 false 1a 2.385,1.74 2.813,1.917 0.427,0.177 10 false 5a 0.177,0.135 0.49,0.333 0.313,0.198 10 false *a
*a Component without harness connected
(Antenna Divider)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
5 - 1 Always 10 kΩ or higher
5 - 5a Always 243 to 267 Ω
1 - 1a Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

6.INSPECT ANTENNA CORD SUB-ASSEMBLY

NG

REPLACE ANTENNA DIVIDER

Click hereAudio / Visual / Telematics>TELEMATICS>ANTENNA DIVIDER>REMOVAL


6.INSPECT ANTENNA CORD SUB-ASSEMBLY
a.
E418251C01
0.344,0.813 0.719,1.063 0.375,0.25 0.375,2.354 0.75,2.604 0.375,0.25 0.406,3.75 0.781,4 0.375,0.25 0.302,0.604 0.615,0.802 0.313,0.198 10 false *a 0.302,2.115 0.615,2.313 0.313,0.198 10 false *b 0.313,3.5 0.625,3.698 0.313,0.198 10 false *c 0.49,0.854 0.802,1.052 0.313,0.198 10 false A 0.521,2.396 0.833,2.594 0.313,0.198 10 false B 0.552,3.792 0.865,3.99 0.313,0.198 10 false C

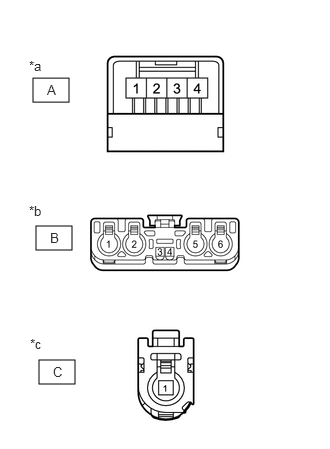

*a Front view of wire harness connector
(to Navigation Antenna Assembly)
*b Front view of wire harness connector
(to Antenna Divider)
*c Front view of wire harness connector
(to Navigation ECU)


Disconnect the antenna connector from the navigation antenna assembly.


b.

Disconnect the antenna connector from the antenna divider.


c.

Disconnect the antenna connector from the navigation ECU.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A-3 - B-1 Always Below 1 Ω
A-3a - B-1a Always Below 1 Ω
B-5 - C-1 Always Below 1 Ω
B-5a - C-1a Always Below 1 Ω
A-3 or B-1 - Body ground Always 10 kΩ or higher
B-5 or C-1 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK ANTENNA DIVIDER

NG

REPLACE ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD (for Instrument Panel Side)>REMOVAL
