RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0385034 AIRBAG SYSTEM(for Type B) C

SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type B) B1647 Side Satellite Sensor Bus Lost Communication (LH) B1648 Side Satellite Sensor Bus Initialization Error (LH)

DESCRIPTION

The side collision sensor LH circuit consists of the airbag sensor assembly, No. 3 side airbag sensor LH and side airbag pressure sensor LH.

The No. 3 side airbag sensor LH and side airbag pressure sensor LH detect impacts to the vehicle and send signals to the airbag sensor assembly to determine if the SRS should be deployed.

These DTCs are stored when a malfunction is detected in the circuit for the side collision sensor LH circuit.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B1647	Side Satellite Sensor Bus Lost Communication (LH)	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side satellite sensor bus LH for 2 seconds. · A side airbag pressure sensor LH malfunction. · A No. 3 side airbag sensor LH malfunction. · An airbag sensor assembly malfunction.	· Floor wire · No. 2 rear door wire · Instrument panel wire · Front door wire LH · Side airbag pressure sensor LH · No. 3 side airbag sensor LH · Airbag sensor assembly	Comes on	Not applicable
B1648	Side Satellite Sensor Bus Initialization Error (LH)	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side satellite sensor bus LH for 2 seconds. · A side airbag pressure sensor LH malfunction. · A No. 3 side airbag sensor LH malfunction. · An airbag sensor assembly malfunction.	· Floor wire · No. 2 rear door wire · Instrument panel wire · Front door wire LH · Side airbag pressure sensor LH · No. 3 side airbag sensor LH · Airbag sensor assembly	Comes on	Not applicable

WIRING DIAGRAM

4.042,2.094 5.656,2.656 1.615,0.563 10 false Airbag Sensor Assembly 4.052,1.927 4.885,2.125 0.833,0.198 10 false V1 4.146,0.875 4.979,1.073 0.833,0.198 10 false BBL+ 4.156,1.458 4.99,1.656 0.833,0.198 10 false BBL- 3.833,0.75 4.833,1.167 1,0.417 10 false 32 3.813,1.354 4.771,1.823 0.958,0.469 10 false 31 1.615,0.75 2.448,0.948 0.833,0.198 10 false 4 1.635,1.313 2.469,1.51 0.833,0.198 10 false 3 1.115,0.854 1.948,1.052 0.833,0.198 10 false BBL+ 1.125,1.469 1.958,1.667 0.833,0.198 10 false BBL- 1.115,2.698 1.948,2.896 0.833,0.198 10 false BDL+ 1.135,3.438 1.969,3.635 0.833,0.198 10 false BDL- 1.615,2.594 2.448,2.792 0.833,0.198 10 false 1 1.625,3.313 2.458,3.51 0.833,0.198 10 false 2 5.688,2.698 6.521,2.896 0.833,0.198 10 false BDL+ 5.698,3.469 6.531,3.667 0.833,0.198 10 false BDL- 0.552,4.021 2.469,4.354 1.917,0.333 10 false No. 3 Side Airbag Sensor LH 0.542,3.823 1.302,4.156 0.76,0.333 10 false T1 5.594,4.063 6.917,4.667 1.323,0.604 10 false Side Airbag Pressure Sensor LH 5.583,3.833 6.344,4.167 0.76,0.333 10 false R15 2.385,3.458 3.146,3.792 0.76,0.333 10 false TV2 2.396,2.698 3.156,3.031 0.76,0.333 10 false TV2 2.469,3.24 3.302,3.438 0.833,0.198 10 false 3 2.781,0.625 3.615,0.823 0.833,0.198 10 false 2 2.344,2.938 3.177,3.135 0.833,0.198 10 false BDL+ 2.375,3.708 3.208,3.906 0.833,0.198 10 false BDL- 5.427,2.573 6.26,2.771 0.833,0.198 10 false 2 5.438,3.323 6.271,3.521 0.833,0.198 10 false 1 2.698,0.865 3.458,1.198 0.76,0.333 10 false TV2 2.698,1.469 3.458,1.802 0.76,0.333 10 false TV2 4.583,2.479 4.74,2.677 0.156,0.198 10 false 1 3.542,2.49 3.698,2.688 0.156,0.198 10 false 2 3.531,3.26 3.688,3.458 0.156,0.198 10 false 1 4.594,3.25 4.75,3.448 0.156,0.198 10 false 2 2.792,1.25 2.948,1.448 0.156,0.198 10 false 1 2.469,2.469 3.865,3.094 1.396,0.625 10 false 4 3.448,2.698 3.906,2.896 0.458,0.198 10 false NV1 3.448,3.458 3.906,3.656 0.458,0.198 10 false NV1 4.51,2.698 4.969,2.896 0.458,0.198 10 false RN6 4.5,3.458 4.958,3.656 0.458,0.198 10 false RN6 3.406,2.938 4.021,3.135 0.615,0.198 10 false BDL+ 4.469,2.948 5.083,3.146 0.615,0.198 10 false BDL+ 3.406,3.719 4.021,3.917 0.615,0.198 10 false BDL- 4.479,3.729 5.094,3.927 0.615,0.198 10 false BDL- 2.677,1.083 3.51,1.281 0.833,0.198 10 false BDL+ 2.688,1.708 3.521,1.906 0.833,0.198 10 false BDL-

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201902,201906,_V1,_081196,_0393338,RM100000001HX6R,201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201902,201906,_V1,_081196,_0393339,RM100000001HX6U,201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connectors are properly connected to the airbag sensor assembly and No. 3 side airbag sensor LH.

Result:

Proceed to
The connectors are properly connected
The connectors are not properly connected

The connectors are properly connected

2.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

0.344,1.208 0.656,1.406 0.313,0.198 10 false *1 1.156,0.958 1.469,1.156 0.313,0.198 10 false *3 1.76,0.938 2.073,1.135 0.313,0.198 10 false *4 2.688,1.563 3,1.76 0.313,0.198 10 false *2

*1	No. 3 Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	No. 2 Rear Door Wire
*4	Floor Wire

Disconnect the connectors from the airbag sensor assembly and No. 3 side airbag sensor LH.

Check that the connectors (on the airbag sensor assembly side and No. 3 side airbag sensor LH side) are not damaged.

Result:

Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged

The connectors are not deformed or damaged

3.CHECK NO. 3 SIDE AIRBAG SENSOR LH CIRCUIT

The connectors are deformed or damaged

REPLACE FLOOR WIRE OR NO. 2 REAR DOOR WIRE

3.CHECK NO. 3 SIDE AIRBAG SENSOR LH CIRCUIT

0.948,3.458 1.438,3.698 0.49,0.24 2.521,0.5 2.896,0.74 0.375,0.24 1.365,1.177 1.542,1.177 1.542,1.177 1.833,0.708 true 2.396,1.156 2.208,1.156 2.208,1.156 2.01,0.708 true 2.688,3.823 2.552,3.823 2.552,3.823 2.344,3.948 true 2.719,3.51 2.615,3.51 2.615,3.51 2.26,3.958 true 2.604,4.438 2.469,4.438 2.469,4.438 2.313,4.292 true 0.427,2.385 0.74,2.542 0.313,0.156 10 false *1 2.656,1.573 2.969,1.729 0.313,0.156 10 false *2 1.177,2.115 1.49,2.271 0.313,0.156 10 false *3 2.656,4.344 2.969,4.5 0.313,0.156 10 false *5 0.771,0.24 1.083,0.396 0.313,0.156 10 false *a 0.969,2.99 1.281,3.146 0.313,0.156 10 false *b 1.073,3.5 1.385,3.656 0.313,0.156 10 false V1 2.635,0.531 2.948,0.688 0.313,0.156 10 false T1 2.281,1.885 2.594,2.042 0.313,0.156 10 false A 2.042,1.885 2.354,2.042 0.313,0.156 10 false B 1.583,1.885 1.896,2.042 0.313,0.156 10 false C 1.417,1.885 1.688,2.042 0.271,0.156 10 false D 2.49,1.073 2.917,1.281 0.427,0.208 10 false BBL+ 1.01,1.083 1.438,1.292 0.427,0.208 10 false BBL- 2.75,3.75 3.177,3.958 0.427,0.208 10 false BBL+ 2.781,3.438 3.208,3.646 0.427,0.208 10 false BBL- 1.823,2.125 2.135,2.281 0.313,0.156 10 false *4 0.969,1.885 1.26,2.156 0.292,0.271 10 false E 0.719,1.885 0.917,2.198 0.198,0.313 10 false F

*1	No. 3 Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	No. 2 Rear Door Wire
*4	Floor Wire
*5	Service Wire
*a	Front view of wire harness connector (to No. 3 Side Airbag Sensor LH)
*b	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
T1-4 (BBL+) - Body ground	Ignition switch ON	Below 1 V
T1-3 (BBL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 32 (BBL+) and 31 (BBL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
T1-4 (BBL+) - T1-3 (BBL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
T1-4 (BBL+) - T1-3 (BBL-)	Always	1 MΩ or higher
T1-4 (BBL+) - Body ground	Always	1 MΩ or higher
T1-3 (BBL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

4.CHECK NO. 3 SIDE AIRBAG SENSOR LH

15.CHECK CONNECTORS

4.CHECK NO. 3 SIDE AIRBAG SENSOR LH

0.51,1.365 0.823,1.563 0.313,0.198 10 false *1 2.552,1.719 2.865,1.917 0.313,0.198 10 false *2

*1	No. 3 Side Airbag Sensor RH
*2	Airbag Sensor Assembly

Connect the connector to the airbag sensor assembly.

Interchange the No. 3 side airbag sensor LH with RH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B1647 or B1648 is output
DTC B1642 or B1643 is output
DTCs B1642, B1643, B1647 and B1648 are not output

HINT:: Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the No. 3 side airbag sensor LH and RH to their original positions and connect the connectors to them.

DTC B1647 or B1648 is output

5.CHECK CONNECTION OF CONNECTOR

DTC B1642 or B1643 is output

REPLACE NO. 3 SIDE AIRBAG SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Door)>REMOVAL201902,201906,_58,_079257,_0384946,RM100000001GJ9D,201906,999999,_58,_079257,_0384946,RM100000001IIRF,

DTCs B1642, B1643, B1647 and B1648 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

5.CHECK CONNECTION OF CONNECTOR

Check that the connector is properly connected to the side airbag pressure sensor LH.

Result:

Proceed to
The connector is properly connected
The connector is not properly connected

The connector is properly connected

6.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

6.CHECK CONNECTOR

0.438,1.615 0.75,1.771 0.313,0.156 10 false *1 2.833,1.615 3.146,1.771 0.313,0.156 10 false *2 1.083,1.281 1.396,1.438 0.313,0.156 10 false *3

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH

Disconnect the connectors from the No. 3 side airbag sensor LH and side airbag pressure sensor LH.

Check that the connector (on the side airbag pressure sensor LH side) is not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

7.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT

The connector is deformed or damaged

REPLACE FRONT DOOR WIRE LH

7.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

3.365,1.802 3.688,2.01 0.323,0.208 2.635,1.781 2.99,2.01 0.354,0.229 1.688,2.396 1.854,2.396 1.854,2.396 1.979,1.938 true 2.5,2.396 2.333,2.396 2.333,2.396 2.24,1.948 true 4.25,1.948 4.385,2.406 4.385,2.406 4.552,2.406 true 4.094,1.927 3.927,2.375 3.927,2.375 3.76,2.375 true 4.5,2.583 4.333,2.583 4.333,2.583 4.26,2.344 true 0.823,1.042 1.135,1.24 0.313,0.198 10 false *1 5.521,1.042 5.833,1.24 0.313,0.198 10 false *2 1.896,0.719 2.208,0.917 0.313,0.198 10 false *3 2.75,0.719 3.063,0.917 0.313,0.198 10 false *4 3.635,0.708 3.948,0.906 0.313,0.198 10 false *5 4.51,0.688 4.823,0.885 0.313,0.198 10 false *6 5.26,0.448 5.417,0.646 0.156,0.198 10 false A 4.885,0.458 5.156,0.823 0.271,0.365 10 false B 4.208,0.448 4.542,0.698 0.333,0.25 10 false C 4.021,0.448 4.375,1.021 0.354,0.573 10 false D 3.344,0.458 4,0.99 0.656,0.531 10 false E 3.167,0.458 3.417,0.854 0.25,0.396 10 false F 2.469,0.448 2.698,0.854 0.229,0.406 10 false G 2.281,0.448 2.594,0.854 0.313,0.406 10 false H 1.646,0.438 2.01,0.771 0.365,0.333 10 false I 1.229,0.448 1.677,0.854 0.448,0.406 10 false J 1.333,2.302 1.948,2.5 0.615,0.198 10 false BDL- 2.552,2.323 3.167,2.521 0.615,0.198 10 false BDL+ 3.448,1.833 3.906,2.031 0.458,0.198 10 false T1 1.313,1.406 1.625,1.604 0.313,0.198 10 false *a 3.438,1.406 3.75,1.604 0.313,0.198 10 false *b 2.698,1.823 3.156,2.021 0.458,0.198 10 false R15 4.625,2.323 5.24,2.521 0.615,0.198 10 false BDL- 3.375,2.313 3.99,2.51 0.615,0.198 10 false BDL+ 4.583,2.521 4.896,2.719 0.313,0.198 10 false *7

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH	*4	Instrument Panel Wire
*5	Floor Wire	*6	No. 2 Rear Door Wire
*7	Service Wire	-	-
*a	Front view of wire harness connector (to Side Airbag Pressure Sensor LH)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor LH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
R15-2 (BDL+) - Body ground	Ignition switch ON	Below 1 V
R15-1 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R15-2 (BDL+) - R15-1 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R15-2 (BDL+) - R15-1 (BDL-)	Always	1 MΩ or higher
R15-2 (BDL+) - Body ground	Always	1 MΩ or higher
R15-1 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

8.CHECK SIDE AIRBAG PRESSURE SENSOR LH

9.CHECK CONNECTORS

8.CHECK SIDE AIRBAG PRESSURE SENSOR LH

0.427,1.563 0.698,1.74 0.271,0.177 10 false *1 2.833,1.552 3.146,1.76 0.313,0.208 10 false *2

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor LH

Connect the connector to the No. 3 side airbag sensor LH.

Interchange the side airbag pressure sensor LH with RH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B1647 or B1648 is output
DTC B1642 or B1643 is output
DTCs B1642, B1643, B1647 and B1648 are not output

HINT:: Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors to them.

DTC B1647 or B1648 is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201902,201906,_58,_079257,_0384942,RM100000001GJ8V,201906,999999,_58,_079257,_0384942,RM100000001IN22,

DTC B1642 or B1643 is output

REPLACE SIDE AIRBAG PRESSURE SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL201902,201906,_58,_079257,_0384944,RM100000001GJ94,201906,999999,_58,_079257,_0384944,RM100000001IWA5,

DTCs B1642, B1643, B1647 and B1648 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

9.CHECK CONNECTORS

0.385,1.594 0.698,1.75 0.313,0.156 10 false *1 2.885,1.604 3.198,1.76 0.313,0.156 10 false *2 1.823,1.292 2.135,1.448 0.313,0.156 10 false *3 2.323,1.292 2.635,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Floor Wire
*4	No. 2 Rear Door Wire

Disconnect the No. 2 rear door wire connector from the floor wire.

Check that the connectors (on the No. 2 rear door wire side and floor wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

10.CHECK NO. 2 REAR DOOR WIRE

The connector is deformed or damaged

REPLACE NO. 2 REAR DOOR WIRE OR FLOOR WIRE

10.CHECK NO. 2 REAR DOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

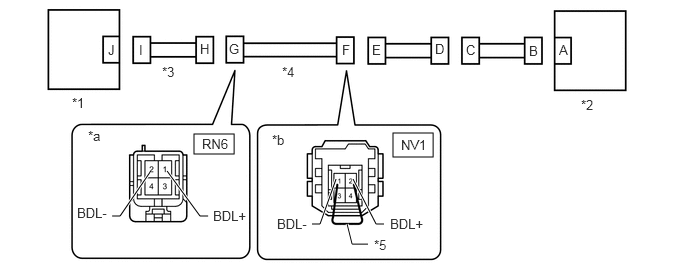

5.854,1.406 6.188,1.625 0.333,0.219 3.771,1.708 4.177,1.906 0.406,0.198 2.938,2.49 3.104,2.49 3.104,2.49 3.26,2.063 true 3.792,2.51 3.625,2.51 3.625,2.51 3.427,2.073 true 5.656,2.313 5.49,2.313 5.49,2.313 5.229,1.917 true 4.771,2.302 4.938,2.302 4.938,2.302 5.073,1.917 true 5.427,2.51 5.24,2.51 5.24,2.51 5.135,2.333 true 0.75,1 1.063,1.198 0.313,0.198 10 false *1 5.833,0.99 6.146,1.188 0.313,0.198 10 false *2 3.313,0.677 3.625,0.875 0.313,0.198 10 false *3 5.938,1.448 6.396,1.646 0.458,0.198 10 false T1 3.854,2.427 4.469,2.625 0.615,0.198 10 false BDL+ 2.573,2.406 3.188,2.604 0.615,0.198 10 false BDL- 5.729,2.24 6.344,2.438 0.615,0.198 10 false BDL- 4.396,2.219 5.01,2.417 0.615,0.198 10 false BDL+ 5.594,0.427 5.75,0.625 0.156,0.198 10 false A 5.24,0.438 5.406,0.656 0.167,0.219 10 false B 4.094,0.438 4.26,0.656 0.167,0.219 10 false C 3.719,0.438 4.052,0.833 0.333,0.396 10 false D 3.052,0.438 3.385,0.833 0.333,0.396 10 false E 2.885,0.427 3.219,0.823 0.333,0.396 10 false F 2.219,0.427 2.552,0.823 0.333,0.396 10 false G 2.042,0.427 2.198,0.625 0.156,0.198 10 false H 1.417,0.438 1.573,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 4.625,0.688 4.938,0.885 0.313,0.198 10 false *4 2.458,1.365 2.771,1.563 0.313,0.198 10 false *a 4.438,1.375 4.75,1.573 0.313,0.198 10 false *b 5.521,2.448 5.833,2.646 0.313,0.198 10 false *5 3.854,1.729 4.313,1.927 0.458,0.198 10 false TV2

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Floor Wire	*4	No. 2 Rear Door Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Floor Wire)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor LH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
TV2-4 (BDL+) - Body ground	Ignition switch ON	Below 1 V
TV2-3 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-4 (BDL+) - TV2-3 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-4 (BDL+) - TV2-3 (BDL-)	Always	1 MΩ or higher
TV2-4 (BDL+) - Body ground	Always	1 MΩ or higher
TV2-3 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

11.CHECK CONNECTORS

REPLACE NO. 2 REAR DOOR WIRE

11.CHECK CONNECTORS

0.385,1.573 0.698,1.729 0.313,0.156 10 false *1 2.896,1.604 3.208,1.76 0.313,0.156 10 false *2 1.427,1.292 1.74,1.448 0.313,0.156 10 false *3 1.896,1.292 2.208,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Instrument Panel Wire
*4	Floor Wire

Disconnect the floor wire connector from the instrument panel wire.

Check that the connectors (on the floor wire side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

12.CHECK FLOOR WIRE

The connector is deformed or damaged

REPLACE FLOOR WIRE OR INSTRUMENT PANEL WIRE

12.CHECK FLOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

3.688,1.49 4.104,1.688 0.417,0.198 5.625,1.417 6.042,1.615 0.417,0.198 2.75,2.417 2.917,2.417 2.917,2.417 3.104,1.802 true 3.583,2.417 3.5,2.417 3.5,2.417 3.281,1.792 true 5.49,2.417 5.406,2.417 5.406,2.417 5.229,1.917 true 4.771,2.406 4.854,2.406 4.854,2.406 5.021,1.927 true 5.333,2.5 5.167,2.5 5.167,2.5 5.104,2.302 true 0.75,1 1.063,1.198 0.313,0.198 10 false *1 5.854,1 6.167,1.198 0.313,0.198 10 false *2 2.531,0.667 2.844,0.865 0.313,0.198 10 false *3 4.365,2.323 4.979,2.521 0.615,0.198 10 false BDL+ 5.573,2.323 6.188,2.521 0.615,0.198 10 false BDL- 2.385,2.333 3,2.531 0.615,0.198 10 false BDL+ 3.656,2.333 4.271,2.531 0.615,0.198 10 false BDL- 5.594,0.427 5.75,0.625 0.156,0.198 10 false A 5.323,0.438 5.49,0.656 0.167,0.219 10 false B 4.677,0.438 4.844,0.656 0.167,0.219 10 false C 4.354,0.438 4.688,0.833 0.333,0.396 10 false D 3.208,0.427 3.542,0.823 0.333,0.396 10 false E 2.896,0.427 3.229,0.823 0.333,0.396 10 false F 2.24,0.427 2.573,0.823 0.333,0.396 10 false G 2.052,0.427 2.208,0.625 0.156,0.198 10 false H 1.438,0.438 1.594,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 3.75,0.667 4.063,0.865 0.313,0.198 10 false *4 2.396,1.365 2.708,1.563 0.313,0.198 10 false *a 4.406,1.375 4.719,1.573 0.313,0.198 10 false *b 5.385,2.469 5.698,2.667 0.313,0.198 10 false *5 5.719,1.438 6.177,1.635 0.458,0.198 10 false TV2 3.771,1.521 4.229,1.719 0.458,0.198 10 false NV1

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Instrument Panel Wire	*4	Floor Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Instrument Panel Wire)	*b	Front view of wire harness connector (to No. 2 Rear Door Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
NV1-2 (BDL+) - Body ground	Ignition switch ON	Below 1 V
NV1-1 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 4 (BDL+) and 3 (BDL-) of connector D.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NV1-2 (BDL+) - NV1-1 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector D.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NV1-2 (BDL+) - NV1-1 (BDL-)	Always	1 MΩ or higher
NV1-2 (BDL+) - Body ground	Always	1 MΩ or higher
NV1-1 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

13.CHECK CONNECTORS

REPLACE FLOOR WIRE

13.CHECK CONNECTORS

0.385,1.573 0.698,1.729 0.313,0.156 10 false *1 2.896,1.604 3.208,1.76 0.313,0.156 10 false *2 0.969,1.292 1.281,1.448 0.313,0.156 10 false *3 1.458,1.292 1.771,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH
*4	Instrument Panel Wire

Disconnect the front door wire LH connector from the instrument panel wire.

Check that the connectors (on the front door wire LH side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

14.CHECK INSTRUMENT PANEL WIRE

The connector is deformed or damaged

REPLACE INSTRUMENT PANEL WIRE OR FRONT DOOR WIRE LH

14.CHECK INSTRUMENT PANEL WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

4.094,1.385 4.51,1.635 0.417,0.25 2.021,1.396 2.438,1.604 0.417,0.208 1.167,2.25 1.25,2.25 1.25,2.25 1.563,1.792 true 2.167,2.25 2.083,2.25 2.083,2.25 1.74,1.781 true 4,2.333 3.917,2.333 3.917,2.333 3.677,1.865 true 3.25,2.333 3.333,2.333 3.333,2.333 3.5,1.865 true 3.833,2.542 3.667,2.542 3.667,2.542 3.615,2.333 true 0.75,0.99 1.063,1.188 0.313,0.198 10 false *1 6.052,1.01 6.365,1.208 0.313,0.198 10 false *2 1.688,0.667 2,0.865 0.313,0.198 10 false *3 0.802,2.135 1.417,2.333 0.615,0.198 10 false BDL- 2.219,2.167 2.833,2.365 0.615,0.198 10 false BDL+ 2.885,2.25 3.5,2.448 0.615,0.198 10 false BDL- 4.063,2.25 4.677,2.448 0.615,0.198 10 false BDL+ 5.823,0.438 5.979,0.635 0.156,0.198 10 false A 5.51,0.448 5.677,0.667 0.167,0.219 10 false B 4.854,0.438 5.021,0.656 0.167,0.219 10 false C 4.531,0.427 4.865,0.823 0.333,0.396 10 false D 3.875,0.438 4.208,0.833 0.333,0.396 10 false E 3.563,0.438 3.896,0.833 0.333,0.396 10 false F 2.385,0.427 2.719,0.823 0.333,0.396 10 false G 2.083,0.427 2.24,0.625 0.156,0.198 10 false H 1.448,0.438 1.604,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 2.938,0.667 3.25,0.865 0.313,0.198 10 false *4 0.917,1.333 1.229,1.531 0.313,0.198 10 false *a 2.833,1.375 3.146,1.573 0.313,0.198 10 false *b 3.896,2.469 4.208,2.667 0.313,0.198 10 false *5 4.177,1.427 4.635,1.625 0.458,0.198 10 false NV1 2.104,1.417 2.563,1.615 0.458,0.198 10 false RN6

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH	*4	Instrument Panel Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Front Door Wire LH)	*b	Front view of wire harness connector (to Floor Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
RN6-1 (BDL+) - Body ground	Ignition switch ON	Below 1 V
RN6-2 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 2 (BDL+) and 1 (BDL-) of connector F.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN6-1 (BDL+) - RN6-2 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector F.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN6-1 (BDL+) - RN6-2 (BDL-)	Always	1 MΩ or higher
RN6-1 (BDL+) - Body ground	Always	1 MΩ or higher
RN6-2 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

REPLACE FRONT DOOR WIRE LH

REPLACE INSTRUMENT PANEL WIRE

15.CHECK CONNECTORS

0.354,1.469 0.667,1.625 0.313,0.156 10 false *1 2.729,1.875 3.042,2.031 0.313,0.156 10 false *2 1.125,1.188 1.438,1.344 0.313,0.156 10 false *3 1.833,1.188 2.146,1.344 0.313,0.156 10 false *4

*1	No. 3 Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	No. 2 Rear Door Wire
*4	Floor Wire

Disconnect the connectors from the floor wire and No. 2 rear door wire.

Check that the connector (on the floor wire side and No. 2 rear door wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

16.CHECK FLOOR WIRE

The connector is deformed or damaged

REPLACE FLOOR WIRE OR NO. 2 REAR DOOR WIRE

16.CHECK FLOOR WIRE

0.948,3.458 1.438,3.698 0.49,0.24 2.427,0.438 2.865,0.677 0.438,0.24 1.26,0.99 1.438,0.99 1.438,0.99 1.729,0.521 true 2.323,0.969 2.135,0.969 2.135,0.969 1.938,0.521 true 2.667,3.75 2.583,3.75 2.583,3.75 2.313,3.927 true 2.698,3.479 2.594,3.479 2.594,3.479 2.24,3.927 true 2.604,4.396 2.469,4.396 2.469,4.396 2.313,4.25 true 0.406,2.396 0.719,2.552 0.313,0.156 10 false *1 2.729,1.583 3.042,1.74 0.313,0.156 10 false *2 1.167,2.125 1.479,2.281 0.313,0.156 10 false *3 2.677,4.281 2.99,4.438 0.313,0.156 10 false *5 0.771,0.24 1.083,0.396 0.313,0.156 10 false *a 0.969,2.99 1.281,3.146 0.313,0.156 10 false *b 1.063,3.5 1.375,3.656 0.313,0.156 10 false V1 2.51,0.479 2.823,0.635 0.313,0.156 10 false TV2 2.344,1.885 2.656,2.042 0.313,0.156 10 false A 2.094,1.885 2.406,2.042 0.313,0.156 10 false B 1.646,1.885 1.958,2.042 0.313,0.156 10 false C 1.385,1.875 1.698,2.031 0.313,0.156 10 false D 0.885,0.896 1.313,1.104 0.427,0.208 10 false BDL+ 2.406,0.885 2.833,1.094 0.427,0.208 10 false BDL- 2.719,3.677 3.146,3.885 0.427,0.208 10 false BBL+ 2.76,3.396 3.188,3.604 0.427,0.208 10 false BBL- 1.844,2.125 2.156,2.323 0.313,0.198 10 false *4 0.938,1.885 1.094,2.083 0.156,0.198 10 false E 0.688,1.885 1.021,2.219 0.333,0.333 10 false F

*1	No. 3 Side Airbag Sensor LH
*2	Airbag Sensor Assembly
*3	No. 2 Rear Door Wire
*4	Floor Wire
*5	Service Wire
*a	Front view of wire harness connector (to No. 2 Rear Door Wire)
*b	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
TV2-2 (BDL+) - Body ground	Ignition switch ON	Below 1 V
TV2-1 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 32 (BBL+) and 31 (BBL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-2 (BDL+) - TV2-1 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-2 (BDL+) - TV2-1 (BDL-)	Always	1 MΩ or higher
TV2-2 (BDL+) - Body ground	Always	1 MΩ or higher
TV2-1 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 2 REAR DOOR WIRE

REPLACE FLOOR WIRE
