EXTERIOR PANELS / TRIM  ROOF RACK BRACKET  INSTALLATION

63187A 1.INSTALL REAR ROOF RACK BRACKET (for High Roof)

a.

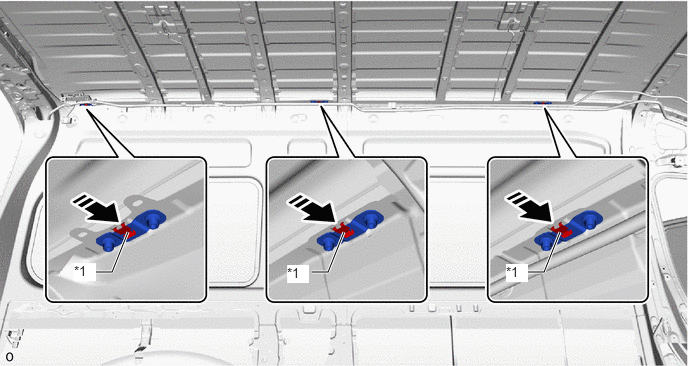

Install the rear roof rack bracket with the inner roof rack retainer.

5.5,2.833 5.667,2.833 5.667,2.833 5.833,2.417 true 3.25,2.833 3.417,2.833 3.417,2.833 3.583,2.417 true 1,2.833 1.167,2.833 1.167,2.833 1.333,2.417 true 0.771,2.74 1,2.927 0.229,0.188 10 true *1 5.271,2.75 5.5,2.938 0.229,0.188 10 true *1 2.99,2.76 3.219,2.948 0.229,0.188 10 true *1

*1	Inner Roof Rack Retainer	-	-
	Install in this Direction	-	-

b.

w/ Wire Harness:

i.

Attach the wire harness clamp.

c.

w/ Wire Harness:

i.

Attach the wire harness clamp.

63187A 2.INSTALL REAR ROOF RACK BRACKET (for Standard Roof)

a.

Install the rear roof rack bracket with the inner roof rack retainer.

5.5,2.833 5.667,2.833 5.667,2.833 5.833,2.417 true 3.25,2.833 3.417,2.833 3.417,2.833 3.583,2.417 true 0.917,2.833 1.083,2.833 1.083,2.833 1.25,2.417 true 0.729,2.76 0.958,2.958 0.229,0.198 10 true *1 5.25,2.75 5.479,2.948 0.229,0.198 10 true *1 3.021,2.74 3.25,2.938 0.229,0.198 10 true *1

*1	Inner Roof Rack Retainer	-	-
	Install in this Direction	-	-

b.

w/ Wire Harness:

i.

Attach the wire harness clamp.

c.

w/ Wire Harness:

i.

Attach the wire harness clamp.

3.INSTALL ROOF HEADLINING ASSEMBLY

63185H 4.INSTALL ROOF RACK BRACKET

a.

Install a new roof rack bracket with the 2 new bolts.

NOTICE:

The roof rack bracket and bolt must not be reused.

HINT:

Use the same procedure for the every roof rack bracket.

Torque:

10 N*m (102 kgf*cm, 7 ft.*lbf)

5.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

6.INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

7.PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

8.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)
