DESCRIPTION

The ECM detects a malfunction in the current cut circuit used to transition to a fail-safe gear position.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P17029F AT Solenoids Operation Shutdown Circuit Stuck Off Once 5.25 seconds elapse after the vehicle is parked with the shift position in P and the ignition switch is turned off, any of the following conditions is continuously met for 0.05 seconds or more during a solenoid current cut request (1 trip detection logic).
·

SL1 solenoid actual current value is 0.2 A or higher

·

SLT solenoid actual current value is 0.2 A or higher

·

SL solenoid is ON


·

Wire harness or connector

·

ECM power source circuit

·

Transmission revolution sensor (NT)

·

Transmission revolution sensor (SP2)

·

Shift solenoid valve SL1

·

Shift solenoid valve SLT

·

Shift solenoid valve SL

·

Park/neutral position switch assembly

·

ECM


Comes on DTC stored SAE Code:
P1702

DTC Detection Condition Patterns:
Vehicle Condition
Pattern 1 Pattern 2 Pattern 3
Diagnostic Condition When a solenoid current cut request is sent after 5.25 seconds elapse after the vehicle is parked with the shift position in P and the ignition switch is turned off ○ ○ ○
Malfunction Condition SL1 solenoid actual current value is 0.2 A or higher ○ - -
SLT solenoid actual current value is 0.2 A or higher - ○ -
SL solenoid is ON - - ○
Duration 0.05 seconds or more 0.05 seconds or more 0.05 seconds or more
Detection Logic 1 trip detection logic 1 trip detection logic 1 trip detection logic

HINT:

This DTC is stored when any of the above detection patterns are met.


MONITOR DESCRIPTION

When the ignition switch is off and current is detected as flowing to the solenoid valve during a solenoid current cut request, the ECM illuminates the MIL and stores a DTC.

CONFIRMATION DRIVING PATTERN

HINT:

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for 2 minutes or more.

5.

Turn the ignition switch to ON.

6.

Turn the GTS on.

7.

Enter the following menus: Powertrain / Transmission / Utility / All Readiness.

8.

Input the DTC: P17029F.

9.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.




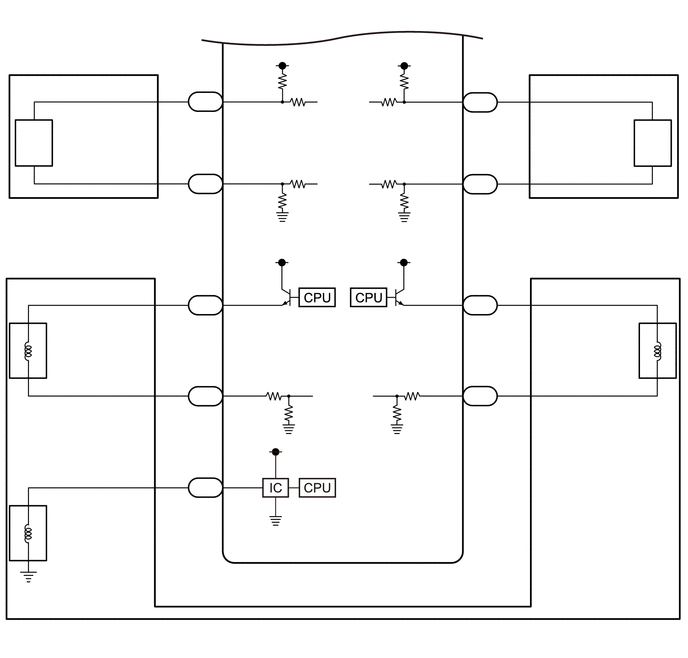

WIRING DIAGRAM

C412709
5.344,1.521 5.5,1.719 0.156,0.198 10 false P 5.344,2.125 5.5,2.323 0.156,0.198 10 false R 5.354,2.729 5.51,2.927 0.156,0.198 10 false N 5.354,3.323 5.51,3.521 0.156,0.198 10 false D 5.042,2.135 5.354,2.333 0.313,0.198 10 false 17 5.052,1.531 5.365,1.729 0.313,0.198 10 false 18 5.042,2.729 5.354,2.927 0.313,0.198 10 false 28 5.052,3.333 5.365,3.531 0.313,0.198 10 false 27 5.719,4.292 6.177,4.49 0.458,0.198 10 false E4 3.823,1.531 3.979,1.729 0.156,0.198 10 false 6 3.813,2.125 3.969,2.323 0.156,0.198 10 false 1 3.802,2.729 3.958,2.927 0.156,0.198 10 false 9 3.813,3.323 3.969,3.521 0.156,0.198 10 false 7 3.49,3.333 3.802,3.531 0.313,0.198 10 false DL 3.51,2.729 3.823,2.927 0.313,0.198 10 false NL 3.469,2.125 3.781,2.323 0.313,0.198 10 false RL 3.469,1.521 3.781,1.719 0.313,0.198 10 false PL 2.781,2.438 3.094,2.635 0.313,0.198 10 false RB 2.563,2.427 2.719,2.625 0.156,0.198 10 false 2 0.052,2.552 1.813,2.896 1.76,0.344 10 false from ECU-IG1 NO. 2 Fuse 1.906,4.021 4.521,4.292 2.615,0.271 10 false Park/Neutral Position Switch Assembly 1.906,3.844 2.365,4.042 0.458,0.198 10 false E92 5.719,4.458 6.177,4.656 0.458,0.198 10 false ECM

C412710
2.406,0.854 2.865,1.052 0.458,0.198 10 false NTB 2.406,1.708 2.865,1.906 0.458,0.198 10 false NTO 2.063,1.823 2.521,2.021 0.458,0.198 10 false E4 2.063,0.969 2.521,1.167 0.458,0.198 10 false E4 0.396,2.104 1.896,2.479 1.5,0.375 10 false Transmission Revolution Sensor (NT) 5.563,2.115 7.063,2.49 1.5,0.375 10 false Transmission Revolution Sensor (SP2) 1.708,0.854 1.865,1.052 0.156,0.198 10 false 2 1.313,0.865 1.771,1.063 0.458,0.198 10 false NTB 1.271,1.708 1.729,1.906 0.458,0.198 10 false NTO 2.063,0.76 2.375,0.958 0.313,0.198 10 false 32 2.052,1.615 2.365,1.813 0.313,0.198 10 false 31 0.073,2.094 0.531,2.292 0.458,0.198 10 false E38 1.688,1.708 1.844,1.906 0.156,0.198 10 false 1 5.219,2.115 5.677,2.313 0.458,0.198 10 false E39 4.917,0.979 5.375,1.177 0.458,0.198 10 false E4 4.917,1.833 5.375,2.031 0.458,0.198 10 false E4 4.365,0.854 4.979,1.052 0.615,0.198 10 false SP2B 4.375,1.708 4.99,1.906 0.615,0.198 10 false SP2O 5.583,1.708 6.198,1.906 0.615,0.198 10 false SP2O 5.573,0.865 6.188,1.063 0.615,0.198 10 false SP2B 4.938,0.76 5.25,0.958 0.313,0.198 10 false 26 4.917,1.615 5.229,1.813 0.313,0.198 10 false 33 5.354,0.854 5.51,1.052 0.156,0.198 10 false 2 5.354,1.708 5.51,1.906 0.156,0.198 10 false 1 2.406,4.875 2.719,5.073 0.313,0.198 10 false SL 1.354,4.875 1.667,5.073 0.313,0.198 10 false SL 4.385,2.979 5,3.177 0.615,0.198 10 false SLT+ 4.458,3.948 4.917,4.146 0.458,0.198 10 false SLT- 5.583,3.927 6.042,4.125 0.458,0.198 10 false SLT- 5.583,2.99 6.198,3.188 0.615,0.198 10 false SLT+ 2.063,3.094 2.521,3.292 0.458,0.198 10 false E3 2.052,4.042 2.51,4.24 0.458,0.198 10 false E3 4.927,3.094 5.385,3.292 0.458,0.198 10 false E3 4.927,4.031 5.385,4.229 0.458,0.198 10 false E3 2.063,4.99 2.521,5.188 0.458,0.198 10 false E4 1.667,2.979 1.979,3.177 0.313,0.198 10 false 25 2.052,4.781 2.365,4.979 0.313,0.198 10 false 15 1.677,3.917 1.99,4.115 0.313,0.198 10 false 26 1.698,4.875 1.854,5.073 0.156,0.198 10 false 1 2.094,2.875 2.25,3.073 0.156,0.198 10 false 9 2.104,3.813 2.26,4.01 0.156,0.198 10 false 8 4.917,2.875 5.229,3.073 0.313,0.198 10 false 13 5.333,2.979 5.646,3.177 0.313,0.198 10 false 13 4.948,3.823 5.26,4.021 0.313,0.198 10 false 12 3.323,5.927 3.781,6.125 0.458,0.198 10 false ECM 3.01,6.469 5.615,6.667 2.604,0.198 10 false Transmission Wire 2.656,6.469 3.115,6.667 0.458,0.198 10 false E29 5.74,3.229 6.604,3.625 0.865,0.396 10 false Shift Solenoid Valve SLT 0.531,5.177 1.396,5.573 0.865,0.396 10 false Shift Solenoid Valve SL 5.323,3.927 5.635,4.125 0.313,0.198 10 false 14 2.406,2.979 3.021,3.177 0.615,0.198 10 false SL1+ 1.208,2.979 1.823,3.177 0.615,0.198 10 false SL1+ 1.219,3.917 1.833,4.115 0.615,0.198 10 false SL1- 2.396,3.927 3.01,4.125 0.615,0.198 10 false SL1- 0.542,3.229 1.406,3.625 0.865,0.396 10 false Shift Solenoid Valve SL1 3.083,2.646 3.698,2.844 0.615,0.198 10 false 12 V 3.073,0.604 3.688,0.802 0.615,0.198 10 false 12 V 3.771,0.594 4.385,0.792 0.615,0.198 10 false 12 V 3.781,2.646 4.396,2.844 0.615,0.198 10 false 12 V 3.01,4.615 3.625,4.813 0.615,0.198 10 false 12 V 0.365,3.948 0.521,4.146 0.156,0.198 10 false 2 6.688,3.948 6.844,4.146 0.156,0.198 10 false 2 0.365,3.188 0.521,3.385 0.156,0.198 10 false 1 6.698,3.188 6.854,3.385 0.156,0.198 10 false 1

CAUTION / NOTICE / HINT

NOTICE:

Perform registration and/or initialization when parts related to the automatic transmission are replaced

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PRECAUTION


PROCEDURE

1.READ VALUE USING GTS (NT SENSOR SPEED AND NT SENSOR VOLTAGE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / NT Sensor Speed, NT Sensor Voltage.


e.

Read the Data List according to the display on the GTS.

Powertrain > Transmission > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
NT Sensor Speed Input turbine speed Min.: 0 rpm
Max.: 12750 rpm
·

Lock-up on (after warming up the engine): Value from transmission revolution sensor (NT) equal to engine speed

·

Lock-up off (idling with shift lever in N): Value from transmission revolution sensor (NT) nearly equal to engine speed


Data is displayed in increments of 50 rpm.
NT Sensor Voltage Transmission revolution sensor (NT) output voltage Min.: 0.000 V
Max.: 4.999 V 		0.1 to 1.9 V: Engine idling -
Powertrain > Transmission > Data List
Tester Display
NT Sensor Speed
NT Sensor Voltage
50003 373 174,175

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

2.READ VALUE USING GTS (SPEED (SP2) AND SP2 SENSOR VOLTAGE)

B

10.INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
2.READ VALUE USING GTS (SPEED (SP2) AND SP2 SENSOR VOLTAGE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / Speed (SP2), SP2 Sensor Voltage.


e.

Read the Data List according to the display on the GTS.

Powertrain > Transmission > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Speed (SP2) Output shaft speed Min.: 0 km/h (0 mph)
Max.: 255 km/h (158 mph) 		0 km/h (0 mph): Vehicle stopped
(Output shaft speed is equal to vehicle speed) 		-
SP2 Sensor Voltage SP2 sensor voltage Min.: 0.000 V
Max.: 4.999 V 		0.2 to 1.8 V: Engine idling -
Powertrain > Transmission > Data List
Tester Display
Speed (SP2)
SP2 Sensor Voltage
50003 373 362,391

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

3.CHECK HARNESS AND CONNECTOR (BATTERY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)

B

12.INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
3.CHECK HARNESS AND CONNECTOR (BATTERY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)
a.
C321062C38
0.438,1 0.833,1.24 0.396,0.24 1.792,1.042 2.115,0.406 true 0.542,1.042 1,1.24 0.458,0.198 10 false E92 2.156,0.25 2.469,0.448 0.313,0.198 10 false RB 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Park/Neutral Position Switch Assembly)


Disconnect the park/neutral position switch assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E92-2 (RB) - Body ground Ignition switch ON 11 to 14 V
E92-2 (RB) - Body ground Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a.

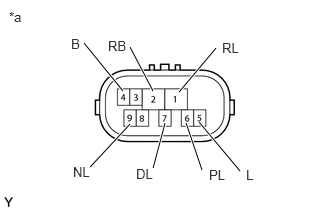

C197712C90
1.281,0.948 0.875,0.448 true 2.073,1.271 2.5,1.781 true 1.594,0.948 1.354,0.49 true 1.865,0.958 2.25,0.5 true 1.938,1.281 2.104,1.771 true 1.719,1.281 1.594,1.75 true 1.354,1.292 0.938,1.74 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 0.74,0.375 1.052,0.573 0.313,0.198 10 false B 2.563,1.74 2.875,1.938 0.313,0.198 10 false L 1.125,0.396 1.438,0.594 0.313,0.198 10 false RB 2.313,0.417 2.625,0.615 0.313,0.198 10 false RL 2.177,1.74 2.49,1.938 0.313,0.198 10 false PL 1.417,1.729 1.729,1.927 0.313,0.198 10 false DL 0.76,1.708 1.073,1.906 0.313,0.198 10 false NL
*a Component without harness connected
(Park/Neutral Position Switch Assembly)


Disconnect the park/neutral position switch assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (B) - 5 (L) Shift lever in P or N Below 1 Ω
2 (RB) - 6 (PL) Shift lever in P Below 1 Ω
2 (RB) - 1 (RL) Shift lever in R Below 1 Ω
2 (RB) - 9 (NL) Shift lever in N Below 1 Ω
2 (RB) - 7 (DL) Shift lever in D, S, "+" or "-" Below 1 Ω
4 (B) - 5 (L) Shift lever not in P or N 10 kΩ or higher
2 (RB) - 6 (PL) Shift lever not in P 10 kΩ or higher
2 (RB) - 1 (RL) Shift lever not in R 10 kΩ or higher
2 (RB) - 9 (NL) Shift lever not in N 10 kΩ or higher
2 (RB) - 7 (DL) Shift lever not in D, S, "+" or "-" 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)

NG

REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>PARK / NEUTRAL POSITION SWITCH>REMOVAL

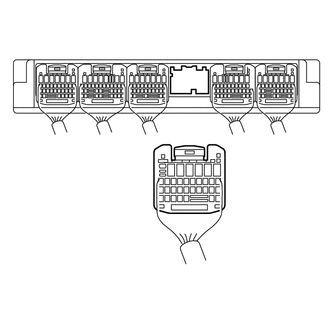

5.CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)
a.
C318003
1.771,0.219 2.198,0.479 0.427,0.26 2.667,2.917 2.198,1.979 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 1.917,0.271 2.375,0.469 0.458,0.198 10 false E4 2.51,2.969 3.427,3.167 0.917,0.198 10 false 18 (P)
*a Rear view of wire harness connector
(to ECM)


Disconnect the ECM connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E4-18 (P) - Body ground
·

Ignition switch to ON

·

Shift lever in P


11 to 14 V
E4-18 (P) - Body ground
·

Ignition switch to ON

·

Shift lever not in P


Below 1 V



Result:
Proceed to
OK
NG



OK

6.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL1, SLT AND SL)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL1, SLT AND SL)
a.
C319326
1.5,1.833 1.698,1.365 true 2.167,1.833 1.854,1.354 true 2,1.083 1.417,0.333 true 2.146,1.083 2,0.333 true 2.438,0.875 2.583,0.333 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 1.375,1.885 1.833,2.083 0.458,0.198 10 false SL1- 2.042,1.885 2.5,2.083 0.458,0.198 10 false SL1+ 1.292,0.135 1.75,0.333 0.458,0.198 10 false SLT- 1.875,0.135 2.333,0.333 0.458,0.198 10 false SLT+ 2.5,0.135 2.958,0.333 0.458,0.198 10 false SL
*a Component without harness connected
(Transmission Wire)


Disconnect the transmission wire connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
25 (SL1+) - 26 (SL1-) 20°C (68°F) 5.0 to 5.6 Ω
13 (SLT+) - 14 (SLT-) 20°C (68°F) 5.0 to 5.6 Ω
1 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
25 (SL1+) or 26 (SL1-) - Body ground and other terminals Always 10 kΩ or higher
13 (SLT+) or 14 (SLT-) - Body ground and other terminals Always 10 kΩ or higher
1 (SL) - other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

NG

9.INSPECT SHIFT SOLENOID VALVE SL1, SLT AND SL

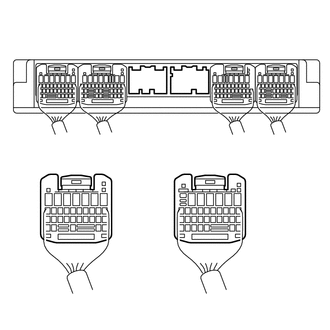

7.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
a.
C409347
1.302,0.24 1.729,0.458 0.427,0.219 1.792,0.24 2.219,0.458 0.427,0.219 1.948,2.188 2.583,3.083 true 1.167,3.083 0.823,2.198 true 1.094,2.188 1.25,2 true 1.021,2.188 1.25,1.667 true 0.417,3.083 0.76,2.188 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 1.438,0.271 1.896,0.469 0.458,0.198 10 false E3 1.938,0.271 2.396,0.469 0.458,0.198 10 false E4 1.292,1.583 2.521,1.781 1.229,0.198 10 false 9 (SL1+) 1.302,1.917 2.531,2.115 1.229,0.198 10 false 8 (SL1-) 0.104,3.135 1.333,3.333 1.229,0.198 10 false 13 (SLT+) 0.938,3.135 2.167,3.333 1.229,0.198 10 false 12 (SLT-) 2.448,3.135 3,3.333 0.552,0.198 10 false 15 (SL)
*a Rear view of wire harness connector
(to ECM)


Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E3-9 (SL1+) - E3-8 (SL1-) 20°C (68°F) 5.0 to 5.6 Ω
E3-13 (SLT+) - E3-12 (SLT-) 20°C (68°F) 5.0 to 5.6 Ω
E4-15 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
E3-9 (SL1+) or E3-8 (SL1-) - Body ground and other terminals Always 10 kΩ or higher
E3-13 (SLT+) or E3-12 (SLT-) - Body ground and other terminals Always 10 kΩ or higher
E4-15 (SL) - other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

8.CHECK SFI SYSTEM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.INSPECT SHIFT SOLENOID VALVE SL1, SLT AND SL
a.

Disconnect the transmission wire connector from the shift solenoid valves SL1, SLT and SL.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>VALVE BODY ASSEMBLY>DISASSEMBLY


b.

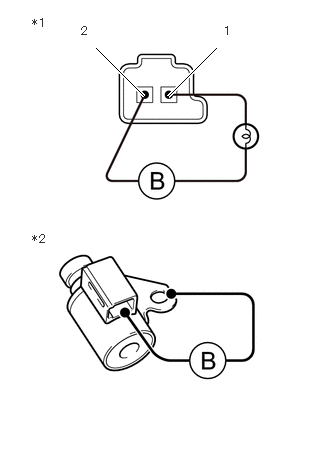

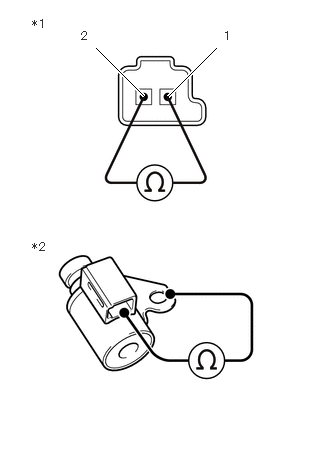

C409344C01
1,0.5 1.5,1 true 2.25,0.5 1.75,1 true 0.333,0.177 0.646,0.333 0.313,0.156 10 false *1 0.333,2.5 0.646,2.656 0.313,0.156 10 false *2 0.844,0.302 1,0.5 0.156,0.198 10 false 2 2.333,0.302 2.49,0.5 0.156,0.198 10 false 1
*1 Shift Solenoid Valve SL1 and SLT
*2 Shift Solenoid Valve SL


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve SL1 connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SLT connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SL connector terminal - Shift solenoid valve SL body 20°C (68°F) 11 to 15 Ω



c.
C409346C01
1.75,1 2.25,0.5 true 1.5,1 1,0.5 true 0.333,0.167 0.646,0.365 0.313,0.198 10 false *1 0.333,2.417 0.646,2.615 0.313,0.198 10 false *2 0.844,0.25 1,0.448 0.156,0.198 10 false 2 2.333,0.25 2.49,0.448 0.156,0.198 10 false 1
*1 Shift Solenoid Valve SL1 and SLT
*2 Shift Solenoid Valve SL


Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:
Measurement Condition Specified Condition
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SL1 connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SL1 connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SLT connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SLT connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) → Shift solenoid valve SL connector

·

Battery negative (-) → Shift solenoid valve SL body


Valve moves and makes an operating noise



Result:
Proceed to
OK
NG



OK

REPLACE TRANSMISSION WIRE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>TRANSMISSION WIRE>REMOVAL


NG

REPLACE SHIFT SOLENOID VALVE SL1, SLT OR SL

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>VALVE BODY ASSEMBLY>DISASSEMBLY

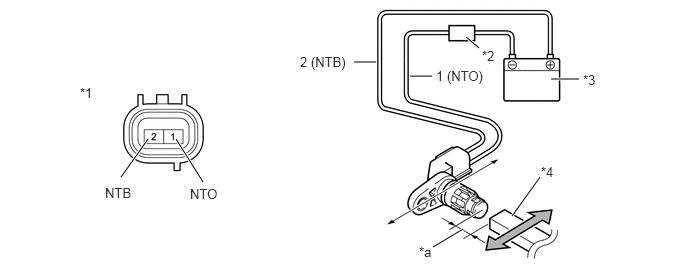

10.INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
a.

Remove the transmission revolution sensor (NT).

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


b.

Connect the battery to the sensor as shown in the illustration.

C297974C12
3.688,0.646 3.917,0.646 true 4.854,0.385 4.99,0.5 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 true 4.271,0.792 4.5,0.792 true 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 0.833,0.885 1.146,1.042 0.313,0.156 10 false *1 5.021,0.5 5.333,0.656 0.313,0.156 10 false *2 6.073,0.75 6.385,0.906 0.313,0.156 10 false *3 5.635,1.708 5.948,1.865 0.313,0.156 10 false *4 4.365,2.542 4.677,2.698 0.313,0.156 10 false *a 3.125,0.563 3.833,0.781 0.708,0.219 10 false 2 (NTB) 4.542,0.708 5.25,0.927 0.708,0.219 10 false 1 (NTO) 1.979,1.938 2.688,2.156 0.708,0.219 10 false NTO 1.094,1.927 1.802,2.146 0.708,0.219 10 false NTB
*1 Transmission Revolution Sensor (NT) *2 Ammeter
*3 Battery *4 Magnet
*a 5 mm (0.197 in.) or less - -



c.

Wave a magnetic object left and right in front of the transmission revolution sensor (NT) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



d.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (NTO) - 2 (NTB) Low signal 4 to 8 mA
1 (NTO) - 2 (NTB) High signal 12 to 16 mA



Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NT) - ECM)

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (NT)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


11.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NT) - ECM)
a.

Disconnect the transmission revolution sensor (NT) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E38-2 (NTB) - E4-32 (NTB) Always Below 1 Ω
E38-1 (NTO) - E4-31 (NTO) Always Below 1 Ω
E38-2 (NTB) - Body ground Always 10 kΩ or higher
E38-1 (NTO) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
a.

Remove the transmission revolution sensor (SP2).

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


b.

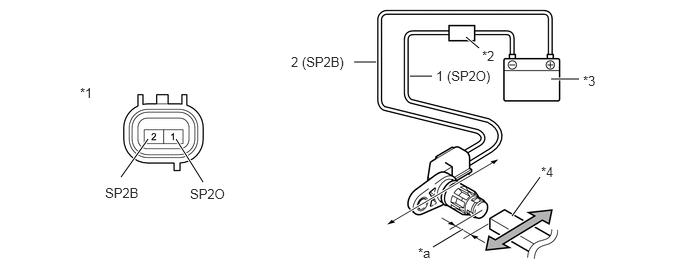

Connect the battery to the sensor as shown in the illustration.

C297974C11
3.688,0.646 3.917,0.646 true 4.854,0.385 4.99,0.5 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 true 4.271,0.792 4.5,0.792 true 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 0.833,0.885 1.146,1.042 0.313,0.156 10 false *1 5.021,0.5 5.333,0.656 0.313,0.156 10 false *2 6.073,0.76 6.385,0.917 0.313,0.156 10 false *3 5.635,1.708 5.948,1.865 0.313,0.156 10 false *4 4.354,2.552 4.667,2.708 0.313,0.156 10 false *a 3.031,0.563 3.74,0.781 0.708,0.219 10 false 2 (SP2B) 4.542,0.708 5.25,0.927 0.708,0.219 10 false 1 (SP2O) 1.979,1.938 2.688,2.156 0.708,0.219 10 false SP2O 1.094,1.927 1.802,2.146 0.708,0.219 10 false SP2B
*1 Transmission Revolution Sensor (SP2) *2 Ammeter
*3 Battery *4 Magnet
*a 5 mm (0.197 in.) or less - -



c.

Wave a magnetic object left and right in front of the transmission revolution sensor (SP2) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



d.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (SP2O) - 2 (SP2B) Low signal 4 to 8 mA
1 (SP2O) - 2 (SP2B) High signal 12 to 16 mA



Result:
Proceed to
OK
NG



OK

13.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (SP2) - ECM)

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (SP2)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


13.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (SP2) - ECM)
a.

Disconnect the transmission revolution sensor (SP2) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E39-2 (SP2B) - E4-26 (SP2B) Always Below 1 Ω
E39-1 (SP2O) - E4-33 (SP2O) Always Below 1 Ω
E39-2 (SP2B) - Body ground Always 10 kΩ or higher
E39-1 (SP2O) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
