AXLE AND DIFFERENTIAL  REAR AXLE HUB BOLT  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 42312E 4.REMOVE REAR AXLE HUB BOLT LH

a.

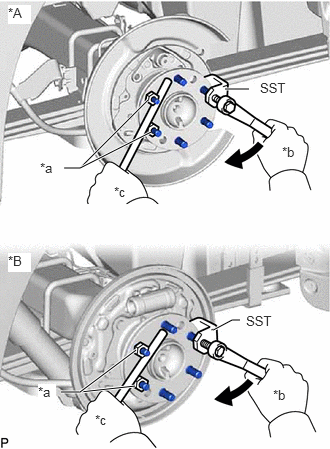

C409468C01
0.833,1.75 1.542,1.042 true 0.667,1.75 0.833,1.75 0.833,1.75 1.573,1.375 true 0.635,4.083 0.833,4.083 0.833,4.083 1.406,4.021 true 0.833,4.083 1.417,3.646 true 2.219,3.438 2.417,3.333 2.417,3.333 2.5,3.333 true 2.344,0.927 2.594,0.927 true 0.99,4.292 1.219,4.448 0.229,0.156 10 false *c 2.844,4.031 3.031,4.198 0.188,0.167 10 false *b 1.188,1.917 1.5,2.073 0.313,0.156 10 false *c 0.396,4 0.583,4.167 0.188,0.167 10 true *a 2.563,3.26 3.021,3.458 0.458,0.198 10 false SST 2.938,1.5 3.167,1.667 0.229,0.167 10 false *b 2.708,0.833 3.167,1.031 0.458,0.198 10 false SST 0.417,1.667 0.604,1.833 0.188,0.167 10 false *a 0.083,0.052 0.323,0.25 0.24,0.198 10 true *A 0.083,2.635 0.323,2.833 0.24,0.198 10 true *B
*A for Rear Disc Brake
*B for Rear Drum Brake
*a Service Nut
*b Turn
*c Hold


Temporarily install 2 service nuts to the 2 rear axle hub bolts as shown in the illustration.

Recommended service nut:

Thread diameter: 14.0 mm (0.551 in.)

Thread pitch: 1.5 mm (0.0591 in.)


NOTICE:

Install the service nuts to prevent damage to the front axle hub bolts.



b.

Using SST and a brass bar or equivalent to hold the rear axle shaft LH, remove the rear axle hub bolt.

SST
09650-17011

NOTICE:

Do not damage the threads of the rear axle hub bolts.



Hide 42312E 5.INSTALL REAR AXLE HUB BOLT LH

a.

Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly LH.


b.
C409469C01
0.417,1.75 1.083,1.073 true 0.333,1.75 0.417,1.75 0.417,1.75 1.094,1.427 true 0.417,4.25 1.073,3.542 true 0.333,4.25 0.417,4.25 0.417,4.25 1.073,3.875 true 2.073,0.167 2.24,0.167 2.24,0.167 2.75,0.417 true 3,1.396 2.917,1.396 2.917,1.396 2.917,0.979 true 2.073,2.75 2.24,2.75 2.24,2.75 2.75,2.917 true 3,3.875 2.917,3.875 2.917,3.875 2.917,3.458 true 0.042,0.073 0.292,0.271 0.25,0.198 10 true *A 0.573,4.365 0.885,4.521 0.313,0.156 10 false *d 3.052,1.313 3.281,1.469 0.229,0.156 10 false *b 2.292,1.417 2.469,1.615 0.177,0.198 10 false *c 0.563,1.906 0.875,2.063 0.313,0.156 10 false *d 2.188,3.927 2.5,4.083 0.313,0.156 10 false *c 0.135,1.667 0.333,1.833 0.198,0.167 10 false *b 0.115,4.167 0.313,4.333 0.198,0.167 10 false *b 1.865,0.083 2.052,0.24 0.188,0.156 10 true *a 1.854,2.667 2.042,2.823 0.188,0.156 10 true *a 3.052,3.802 3.281,3.958 0.229,0.156 10 false *b 0.052,2.646 0.281,2.833 0.229,0.188 10 true *B
*A for Rear Disc Brake
*B for Rear Drum Brake
*a Plate Washer
*b Service Nut
*c Turn
*d Hold


Install a plate washer and service nut to a new rear axle hub bolt as shown in the illustration.

Recommended service nut:

Thread diameter: 14.0 mm (0.551 in.)

Thread pitch: 1.5 mm (0.0591 in.)


HINT:

Recommended washer thickness is 5 mm (0.197 in.) or more.



c.

Using a brass bar or equivalent to hold the rear axle shaft LH, install the rear axle hub bolt by tightening the nut.

NOTICE:
·

Install the service nuts to prevent damage to the rear axle hub bolts.

·

Do not damage the threads of the rear axle hub bolts.




d.

Remove the 3 service nuts from the 3 rear axle hub bolts.
