SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type B)  B1900  Short in P/T Squib (RH) Circuit  B1901  Open in P/T Squib (RH) Circuit  B1902  Short in P/T Squib (RH) Circuit (to Ground)  B1903  Short in P/T Squib (RH) Circuit (to +B)


DESCRIPTION

The front pretensioner RH circuit consists of the airbag sensor assembly and front seat outer belt assembly RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the front pretensioner RH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B1900 Short in P/T Squib (RH) Circuit One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal 5 times in the front pretensioner RH circuit during the primary check.

·

A front seat outer belt assembly RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 floor wire

·

Front seat outer belt assembly RH

·

Airbag sensor assembly


Comes on Applicable
B1901 Open in P/T Squib (RH) Circuit One of the following conditions is met:
·

The airbag sensor assembly detects an open circuit signal in the front pretensioner RH circuit for 2 seconds.

·

A front seat outer belt assembly RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 floor wire

·

Front seat outer belt assembly RH

·

Airbag sensor assembly


Comes on Applicable
B1902 Short in P/T Squib (RH) Circuit (to Ground) One of the following conditions is met:
·

The airbag sensor assembly detects a short circuit to ground signal in the front pretensioner RH circuit for 0.5 seconds.

·

A front seat outer belt assembly RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 floor wire

·

Front seat outer belt assembly RH

·

Airbag sensor assembly


Comes on Applicable
B1903 Short in P/T Squib (RH) Circuit (to +B) One of the following conditions is met:
·

The airbag sensor assembly detects a short circuit to B+ signal in the front pretensioner RH circuit for 0.5 seconds.

·

A front seat outer belt assembly RH malfunction.

·

An airbag sensor assembly malfunction.


·

No. 2 floor wire

·

Front seat outer belt assembly RH

·

Airbag sensor assembly


Comes on Applicable

WIRING DIAGRAM

C409207
0.49,1.698 0.948,1.896 0.458,0.198 10 false W10 0.49,1.865 2.813,2.135 2.323,0.271 10 false Front Seat Outer Belt Assembly RH 1.396,1.125 1.615,1.281 0.219,0.156 10 false R- 1.365,0.323 1.615,0.49 0.25,0.167 10 false R+ 1.698,1.125 1.844,1.302 0.146,0.177 10 false 2 1.698,0.313 1.844,0.49 0.146,0.177 10 false 1 5.365,0.344 5.51,0.51 0.146,0.167 10 false 4 5.344,1.115 5.49,1.292 0.146,0.177 10 false 3 5.583,0.448 5.948,0.646 0.365,0.198 10 false PR+ 5.594,1.229 5.958,1.427 0.365,0.198 10 false PR- 5.448,1.698 6.906,2.031 1.458,0.333 10 false W1 5.458,1.854 7.094,2.135 1.635,0.281 10 false Airbag Sensor Assembly

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



HINT:

To perform the simulation method, enter check mode (signal check) with the GTS (Click here Vehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>CHECK MODE PROCEDURE), and then wiggle each connector of the airbag system or drive the vehicle on various types of road (Click here General>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING).


PROCEDURE

1.CHECK CONNECTORS
a.
C208250C38
0.667,1.156 0.979,1.313 0.313,0.156 10 false *1 2.135,1.646 2.448,1.802 0.313,0.156 10 false *2 1.25,1.135 1.563,1.292 0.313,0.156 10 false *3
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 No. 2 Floor Wire


Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the front seat outer belt assembly RH and airbag sensor assembly.

OK:

The connectors are properly connected.


HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.



d.

Disconnect the connectors from the front seat outer belt assembly RH and airbag sensor assembly.


e.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



f.

Check that the No. 2 floor wire connector (on the front seat outer belt assembly RH side) is not loose, deformed or damaged.

OK:

The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.



g.

Check that the short springs of the activation prevention mechanism of the No. 2 floor wire connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.



Result:
Proceed to
OK
NG



OK

2.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH

NG

REPLACE NO. 2 FLOOR WIRE

2.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH
a.
C238358C88

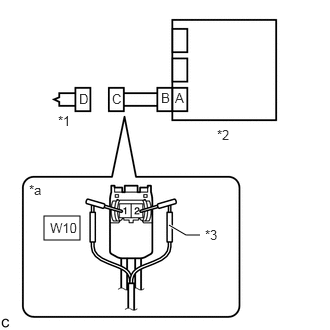

0.458,2.25 0.833,2.5 0.375,0.25 1.76,2.344 1.938,2.448 1.938,2.448 2.083,2.448 true 0.604,1.177 1.094,1.583 0.49,0.406 10 false *1 2.26,1.323 2.74,1.74 0.479,0.417 10 false *2 1.823,0.938 2.208,1.458 0.385,0.521 10 false A 1.677,0.938 2.167,1.417 0.49,0.479 10 false B 1.167,0.948 1.917,1.448 0.75,0.5 10 false C 0.823,0.948 1.604,1.344 0.781,0.396 10 false D 2.135,2.365 2.573,2.698 0.438,0.333 10 false *3 0.302,1.896 0.698,2.26 0.396,0.365 10 false *a 0.521,2.292 0.969,2.76 0.448,0.469 10 false W10
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 SST
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)


Connect the connector to the airbag sensor assembly.


b.

Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the front seat outer belt assembly RH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the ignition switch off.


g.

Turn the ignition switch to ON, and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTCs B1900, B1901, B1902 and B1903 are not output
DTC B1900, B1901, B1902 or B1903 is output


HINT:

Codes other than DTC B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.



i.

Turn the ignition switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Disconnect SST from connector C.



DTCs B1900, B1901, B1902 and B1903 are not output

REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL


DTC B1900, B1901, B1902 or B1903 is output

3.CHECK NO. 2 FLOOR WIRE
3.CHECK NO. 2 FLOOR WIRE
a.
C411575C03

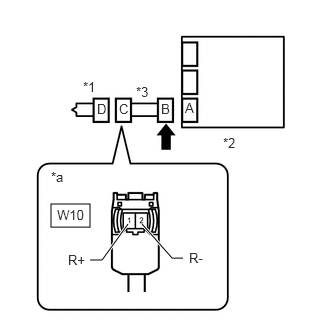

0.531,2.125 0.938,2.365 0.406,0.24 0.938,2.708 1.063,2.708 1.063,2.708 1.333,2.333 true 1.906,2.688 1.792,2.688 1.792,2.688 1.479,2.333 true 0.865,0.823 1.177,0.979 0.313,0.156 10 false *1 2.323,1.406 2.635,1.563 0.313,0.156 10 false *2 1.417,0.875 1.729,1.031 0.313,0.156 10 false *3 0.531,1.76 0.844,1.917 0.313,0.156 10 false *a 0.594,2.156 0.938,2.344 0.344,0.188 10 false W10 0.708,2.625 1.25,2.844 0.542,0.219 10 false R+ 1.969,2.604 2.438,2.833 0.469,0.229 10 false R- 1.01,1.052 1.135,1.219 0.125,0.167 10 false D 1.24,1.052 1.365,1.219 0.125,0.167 10 false C 1.677,1.052 1.802,1.219 0.125,0.167 10 false B 1.927,1.042 2.052,1.208 0.125,0.167 10 false A
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 No. 2 Floor Wire
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)
V100135

Release the activation prevention mechanism


Disconnect the No. 2 floor wire from the airbag sensor assembly.


b.

Check for a short to B+ in the circuit.

i.

Connect the cable to the negative (-) battery terminal.


ii.

Turn the ignition switch to ON.


iii.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
W10-1 (R+) - Body ground Ignition switch ON Below 1 V
W10-2 (R-) - Body ground Ignition switch ON Below 1 V



iv.

Turn the ignition switch off.


v.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.



c.

Check for an open in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W10-1 (R+) - W10-2 (R-) Always Below 1 Ω




d.

Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W10-1 (R+) - Body ground Always 1 MΩ or higher
W10-2 (R-) - Body ground Always 1 MΩ or higher




e.

Check for a short in the circuit.

i.

Release the activation prevention mechanism built into connector B.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>SYSTEM DESCRIPTION


ii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W10-1 (R+) - W10-2 (R-) Always 1 MΩ or higher



iii.

Restore the released activation prevention mechanism of connector B to the original condition.



Result:
Proceed to
OK
NG



OK

4.CHECK DTC

NG

REPLACE NO. 2 FLOOR WIRE

4.CHECK DTC
a.
C238241C26
0.74,1.094 0.99,1.302 0.25,0.208 10 false *1 2.146,1.604 2.396,1.813 0.25,0.208 10 false *2
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly


Connect the connectors to the front seat outer belt assembly RH and airbag sensor assembly.


b.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


c.

Turn the ignition switch to ON, and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the ignition switch off.


f.

Turn the ignition switch to ON, and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTCs B1900, B1901, B1902 and B1903 are not output
DTC B1900, B1901, B1902 or B1903 is output


HINT:

Codes other than DTC B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.




DTCs B1900, B1901, B1902 and B1903 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


DTC B1900, B1901, B1902 or B1903 is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
