SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for Type B)  B1825  Short in Side Squib (LH) Circuit  B1826  Open in Side Squib (LH) Circuit  B1827  Short in Side Squib (LH) Circuit (to Ground)  B1828  Short in Side Squib (LH) Circuit (to +B)


DESCRIPTION

The front side squib LH circuit consists of the airbag sensor assembly and front seat airbag assembly LH.

The circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the front side squib LH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B1825 Short in Side Squib (LH) Circuit One of the following conditions is met:
·

The airbag sensor assembly detects a line short circuit signal 5 times in the front side squib LH circuit during the primary check.

·

A front seat airbag assembly LH malfunction.

·

An airbag sensor assembly malfunction.


·

Front seat wire LH

·

Floor wire

·

Front seat airbag assembly LH

·

Airbag sensor assembly


Comes on Applicable
B1826 Open in Side Squib (LH) Circuit One of the following conditions is met:
·

The airbag sensor assembly detects an open circuit signal in the front side squib LH circuit for 2 seconds.

·

A front seat airbag assembly LH malfunction.

·

An airbag sensor assembly malfunction.


·

Front seat wire LH

·

Floor wire

·

Front seat airbag assembly LH

·

Airbag sensor assembly


Comes on Applicable
B1827 Short in Side Squib (LH) Circuit (to Ground) One of the following conditions is met:
·

The airbag sensor assembly detects a short circuit to ground signal in the front side squib LH circuit for 0.5 seconds.

·

A front seat airbag assembly LH malfunction.

·

An airbag sensor assembly malfunction.


·

Front seat wire LH

·

Floor wire

·

Front seat airbag assembly LH

·

Airbag sensor assembly


Comes on Applicable
B1828 Short in Side Squib (LH) Circuit (to +B) One of the following conditions is met:
·

The airbag sensor assembly detects a short circuit to B+ signal in the front side squib LH circuit for 0.5 seconds.

·

A front seat airbag assembly LH malfunction.

·

An airbag sensor assembly malfunction.


·

Front seat wire LH

·

Floor wire

·

Front seat airbag assembly LH

·

Airbag sensor assembly


Comes on Applicable

WIRING DIAGRAM

C413905
0.49,1.698 0.948,1.896 0.458,0.198 10 false n3 0.49,1.865 2.563,2.031 2.073,0.167 10 false Front Seat Airbag Assembly LH 1.698,0.313 1.844,0.49 0.146,0.177 10 false 1 1.688,1.115 1.833,1.292 0.146,0.177 10 false 2 5.302,0.344 5.51,0.521 0.208,0.177 10 false 16 5.302,1.115 5.49,1.292 0.188,0.177 10 false 15 5.594,0.448 5.958,0.646 0.365,0.198 10 false SFL+ 5.594,1.229 5.958,1.427 0.365,0.198 10 false SFL- 5.427,1.708 5.885,1.906 0.458,0.198 10 false V1 5.427,1.865 7.094,2.198 1.667,0.333 10 false Airbag Sensor Assembly 3.531,0.24 3.677,0.417 0.146,0.177 10 false 1 3.563,1.01 3.708,1.188 0.146,0.177 10 false 2 3.417,0.677 3.781,0.875 0.365,0.198 10 false SFL+ 3.448,1.458 3.813,1.656 0.365,0.198 10 false SFL- 3.448,0.458 3.813,0.656 0.365,0.198 10 false Vn1 3.448,1.229 3.813,1.427 0.365,0.198 10 false Vn1

CAUTION / NOTICE / HINT

NOTICE:


HINT:

To perform the simulation method, enter check mode (signal check) with the GTS (Click here Vehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>CHECK MODE PROCEDURE), and then wiggle each connector of the airbag system or drive the vehicle on various types of road (Click here General>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING).


PROCEDURE

1.CHECK CONNECTORS
a.
C412969C02
0.521,0.531 0.833,0.729 0.313,0.198 10 false *1 1.563,0.521 1.875,0.719 0.313,0.198 10 false *4 2.458,1.594 2.771,1.792 0.313,0.198 10 false *2 0.99,0.521 1.302,0.719 0.313,0.198 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Front Seat Wire LH
*4 Floor Wire


Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


c.

Check that the connectors are properly connected to the front seat airbag assembly LH and airbag sensor assembly.

OK:

The connectors are properly connected.


HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.



d.

Disconnect the connectors from the front seat airbag assembly LH and airbag sensor assembly also disconnect the front seat wire LH from the floor wire.


e.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



f.

Check that the short springs of the activation prevention mechanism of the floor wire connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.



Result:
Proceed to
OK
NG



OK

2.CHECK FRONT SEAT AIRBAG ASSEMBLY LH

NG

REPLACE FLOOR WIRE OR FRONT SEAT WIRE LH

2.CHECK FRONT SEAT AIRBAG ASSEMBLY LH

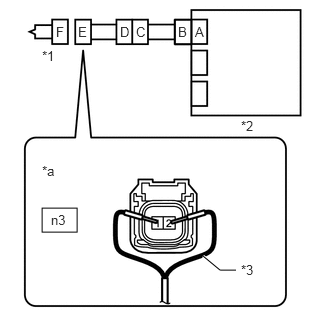

a.
C412975C02
0.438,2.167 0.802,2.417 0.365,0.25 2.115,2.667 2.292,2.813 2.292,2.813 2.458,2.813 true 0.438,0.5 0.76,0.771 0.323,0.271 10 false *1 2.51,1.229 2.885,1.552 0.375,0.323 10 false *2 0.438,1.698 0.771,2.115 0.333,0.417 10 false *a 2.51,2.729 2.844,3.146 0.333,0.417 10 false *3 0.531,2.208 0.958,2.573 0.427,0.365 10 false n3 2.031,0.25 2.406,0.573 0.375,0.323 10 false A 1.854,0.25 2.229,0.573 0.375,0.323 10 false B 1.417,0.25 1.792,0.573 0.375,0.323 10 false C 1.25,0.25 1.625,0.573 0.375,0.323 10 false D 0.813,0.25 1.188,0.573 0.375,0.323 10 false E 0.583,0.25 0.958,0.573 0.375,0.323 10 false F
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 SST
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)


Connect the floor wire to the front seat wire LH and airbag sensor assembly.


b.

Connect the red wire side of SST (resistance: 2.1 Ω) to connector E.

CAUTION:

Never connect the tester to the front seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the ignition switch off.


g.

Turn the ignition switch to ON, and wait for at least 60 seconds.


h.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTCs B1825, B1826, B1827 and B1828 are not output
DTC B1825, B1826, B1827 or B1828 is output


HINT:

Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.



i.

Turn the ignition switch off.


j.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.


k.

Disconnect SST from connector E.



DTCs B1825, B1826, B1827 and B1828 are not output

DTC B1825, B1826, B1827 or B1828 is output

3.CHECK FRONT SEAT AIRBAG ASSEMBLY LH CIRCUIT
3.CHECK FRONT SEAT AIRBAG ASSEMBLY LH CIRCUIT

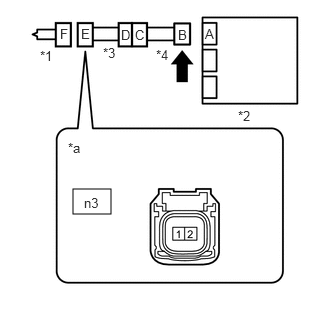

a.
C412976C02
0.76,1.969 1.156,2.229 0.396,0.26 0.417,0.5 0.729,0.656 0.313,0.156 10 false *1 2.479,1.125 2.792,1.281 0.313,0.156 10 false *2 1.073,0.469 1.385,0.625 0.313,0.156 10 false *3 0.708,1.458 1.021,1.615 0.313,0.156 10 false *a 1.26,0.281 1.438,0.469 0.177,0.188 10 false D 1.406,0.281 1.583,0.469 0.177,0.188 10 false C 1.854,0.281 2.031,0.469 0.177,0.188 10 false B 2.135,0.271 2.313,0.458 0.177,0.188 10 false A 0.875,2.031 1.188,2.188 0.313,0.156 10 false n3 1.625,0.49 1.938,0.646 0.313,0.156 10 false *4 0.844,0.271 1.021,0.458 0.177,0.188 10 false E 0.625,0.271 0.802,0.458 0.177,0.188 10 false F
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Front Seat Wire LH
*4 Floor Wire
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)
V100135

Release the activation prevention mechanism


Disconnect the floor wire from the front seat wire LH.


b.

Check for a short to B+ in the circuit.

i.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


ii.

Turn the ignition switch to ON.


iii.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
n3-1 - Body ground Ignition switch ON Below 1 V
n3-2 - Body ground Ignition switch ON Below 1 V



iv.

Turn the ignition switch off.


v.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.



c.

Check for an open in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
n3-1 - n3-2 Always Below 1 Ω




d.

Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
n3-1 - Body ground Always 1 MΩ or higher
n3-2 - Body ground Always 1 MΩ or higher




e.

Check for a short in the circuit.


ii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
n3-1 - n3-2 Always 1 MΩ or higher



iii.

Restore the released activation prevention mechanism of connector B to the original condition.



Result:
Proceed to
OK
NG



OK

4.CHECK DTC

NG

5.CHECK FLOOR WIRE
4.CHECK DTC
a.
C412970C03
0.688,0.979 1,1.177 0.313,0.198 10 false *1 2.302,1.594 2.615,1.792 0.313,0.198 10 false *2
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly


Connect the connectors to the front seat airbag assembly LH and airbag sensor assembly.


b.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


c.

Turn the ignition switch to ON, and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the ignition switch off.


f.

Turn the ignition switch to ON, and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
Result:
Proceed to
DTCs B1825, B1826, B1827 and B1828 are not output
DTC B1825, B1826, B1827 or B1828 is output


HINT:

Codes other than DTC B1825, B1826, B1827 and B1828 may be output at this time, but they are not related to this check.




DTCs B1825, B1826, B1827 and B1828 are not output

DTC B1825, B1826, B1827 or B1828 is output

5.CHECK FLOOR WIRE

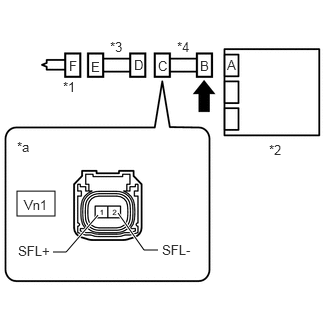

a.
C413754C02
0.177,1.99 0.573,2.25 0.396,0.26 0.552,2.625 0.688,2.625 0.688,2.625 1.021,2.24 true 1.646,2.604 1.5,2.604 1.5,2.604 1.229,2.219 true 0.656,0.823 0.969,0.979 0.313,0.156 10 false *1 2.802,1.479 3.115,1.635 0.313,0.156 10 false *2 1.146,0.406 1.458,0.563 0.313,0.156 10 false *3 0.177,1.448 0.49,1.604 0.313,0.156 10 false *a 1.396,0.594 1.573,0.781 0.177,0.188 10 false D 1.646,0.604 1.823,0.792 0.177,0.188 10 false C 2.083,0.604 2.26,0.792 0.177,0.188 10 false B 2.365,0.594 2.542,0.781 0.177,0.188 10 false A 0.25,2.052 0.563,2.208 0.313,0.156 10 false Vn1 1.688,2.521 2.219,2.708 0.531,0.188 10 false SFL- 0.188,2.531 0.719,2.719 0.531,0.188 10 false SFL+ 1.844,0.406 2.156,0.563 0.313,0.156 10 false *4 0.948,0.615 1.125,0.802 0.177,0.188 10 false E 0.719,0.604 0.896,0.792 0.177,0.188 10 false F
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Front Seat Wire LH
*4 Floor Wire
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)
V100135

Release the activation prevention mechanism


Disconnect the floor wire from the front seat wire LH.


b.

Check for a short to B+ in the circuit.

i.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.


ii.

Turn the ignition switch to ON.


iii.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
Vn1-1 (SFL+) - Body ground Ignition switch ON Below 1 V
Vn1-2 (SFL-) - Body ground Ignition switch ON Below 1 V



iv.

Turn the ignition switch off.


v.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.



c.

Check for an open in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Vn1-1 (SFL+) - Vn1-2 (SFL-) Always Below 1 Ω




d.

Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Vn1-1 (SFL+) - Body ground Always 1 MΩ or higher
Vn1-2 (SFL-) - Body ground Always 1 MΩ or higher




e.

Check for a short in the circuit.


ii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Vn1-1 (SFL+) - Vn1-2 (SFL-) Always 1 MΩ or higher



iii.

Restore the released activation prevention mechanism of connector B to the original condition.



Result:
Proceed to
OK
NG



OK

REPLACE FRONT SEAT WIRE LH

NG

REPLACE FLOOR WIRE
