RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0384940 FRONT SEAT SIDE AIRBAG ASSEMBLY(for Separate Seat Type) A

SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY(for Separate Seat Type) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front seat airbag assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

-

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

-

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

-

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

Hide Display 72495A 4.REMOVE FRONT SEAT VERTICAL ADJUSTER HANDLE LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0006,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0006,

Hide Display 72551L 5.REMOVE RECLINING HINGE COVER LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0007,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0007,

Hide Display 72526H 6.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0008,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0008,

Hide Display 71849J 7.REMOVE FRONT SEAT NO. 3 ADJUSTER COVER CAP LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0009,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0009,

Hide Display 71812T 8.REMOVE FRONT SEAT CUSHION SHIELD LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0020,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0020,

Hide Display 71862K 9.REMOVE FRONT SEAT INNER CUSHION SHIELD LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0031,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0031,

Hide Display 71861K 10.REMOVE FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0011,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0011,

Hide Display 71811T 11.REMOVE FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0033,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0033,

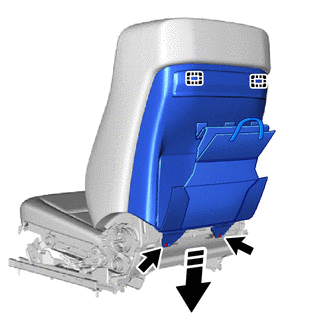

Hide Display 71705G 12.REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY LH (w/ Seatback Board)

Remove the 3 clips.

Detach the band.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

Detach the hook and remove the front seatback board sub-assembly LH as shown in the illustration.

Hide Display 13.REMOVE FRONT SEATBACK ASSEMBLY

w/o Front Seatback Board:

Remove the 3 clips.

ii.

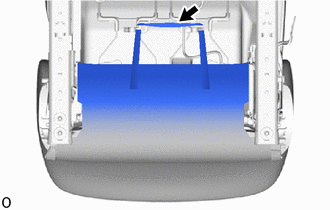

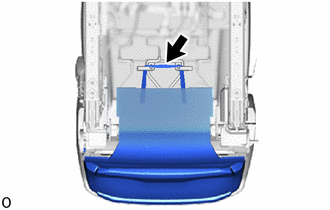

Detach the band.

Detach the hook.

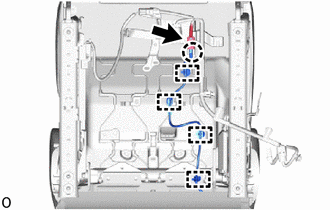

Disconnect the connector.

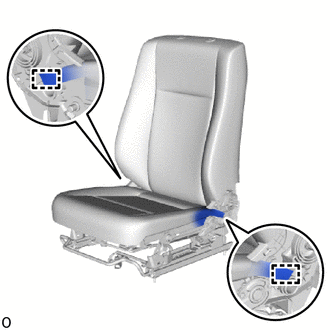

Detach the clamp and claw.

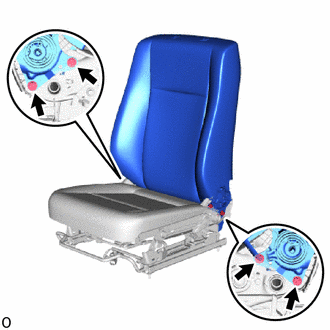

Remove the 4 bolts.

0,0 0,0 false

Protective Tape

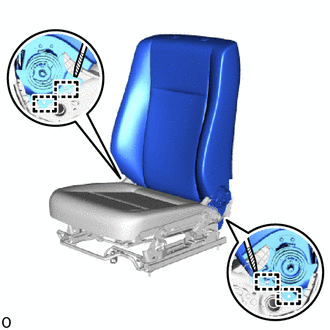

Using a screwdriver, detach the guide and remove the front seatback assembly.

HINT:: Tape the screwdriver tip before use.

Hide Display 14.REMOVE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0044,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0044,

Hide Display 73920B 15.REMOVE FRONT SEAT AIRBAG ASSEMBLY LH

CAUTION:

0,0 0,0 false

Deployment Side

When storing the front seat airbag assembly LH, keep the airbag deployment side facing upward.

If the airbag deploys for any reason, it may cause a serious accident.

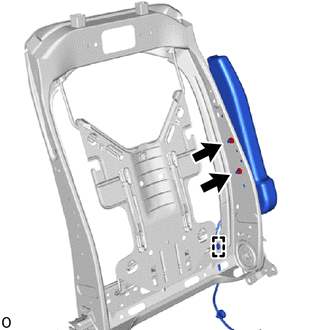

Detach the wire harness clamp.

Remove the 2 nuts and front seat airbag assembly LH.

CAUTION:: ·

Do not reuse the nut.

·

If the installation surface or surrounding area of the front seat airbag assembly LH is deformed or damaged, replace the front seatback frame sub-assembly LH with a new one.
